OEM Boiler Superheater Coil Material High Low Temperature Steam Tube
Product Details
| Surface Treatment: | Painted | Tube Diameter: | Customized |
|---|---|---|---|
| Size: | Customized | Application: | Boiler, Power Plant |
| Material: | Carbon Steel | Tube Wall Thickness: | Customized |
| Highlight |
OEM superheater coil material,Steam superheater coil material,low temperature superheater tube |
||
Product Description

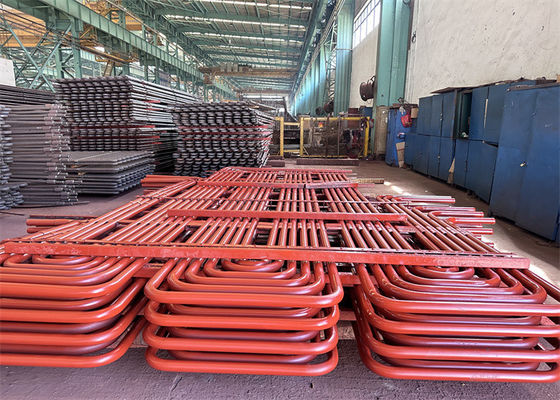

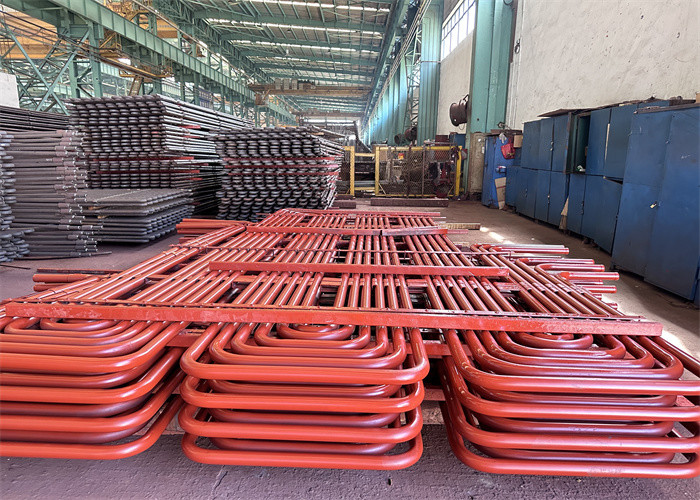

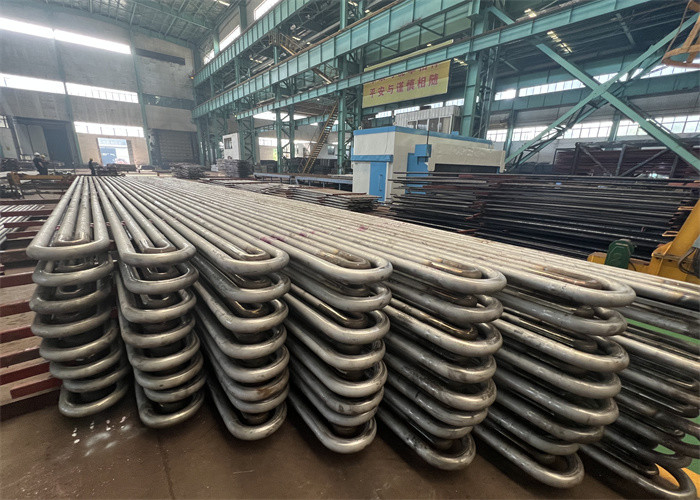

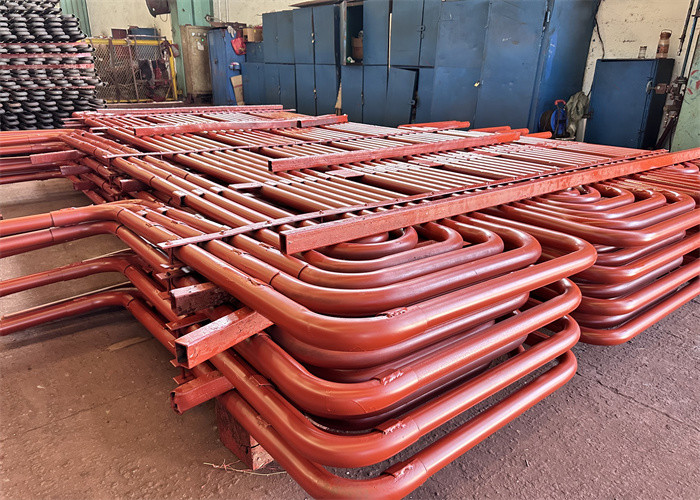

Boiler Superheater Coils The Ultimate Solution for High-Temperature Steam
Superheater
Fossil fuel power plants often have a superheater section in the steam generating furnace.The steam passes through drying equipment inside the steam drum on to the superheater, a set of tubes in the furnace. Here the steam picks up more energy from hot flue gases outside the tubing, and its temperature is now superheated above the saturation temperature.
Reheater
Power plant furnaces may have a reheater section containing tubes heated by hot flue gases outside the tubes. Exhaust steam from the high-pressure turbine is passed through these heated tubes to collect more energy before driving the intermediate and then low-pressure turbines.
Function
Superheater is to increase the temperature of the steam above its saturation point.
Reheater is basically a superheater that superheats steam exiting the high-pressure stage of a turbine. The reheated steam is then sent to the low-pressure stage of the turbine. By reheating steam between high-pressure and low-pressure turbine it is possible to increase the electrical efficiency of the power plant cycle beyond 40%.The reheat cycle is used in large power boilers since it is feasible economically only in larger power plants.
Our custom superheater coil is designed specifically for use in boilers and can be used to replace existing superheater coils in existing boilers, or designed and manufactured to fit into new boilers. Our superheater coil is designed to provide superior heat transfer performance and maximum durability in high-pressure and industrial applications.
| Description | Boiler superheater |
| Material | Alloy steel, Carbon steel etc. |
| Material Standard | ASTM, EN or ISO etc. |
| Structure Type | Tube Coil |
| Dimension | Customized |
| Supply Ability | 500 ton per month |
| Manufacturing Process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Bending tube→Assembly→Inspection →RT→Heat treatment (annealing)→Hydraulic pressure test→Painting→ Packaging |
| Thermal Efficiency | Around 95% |

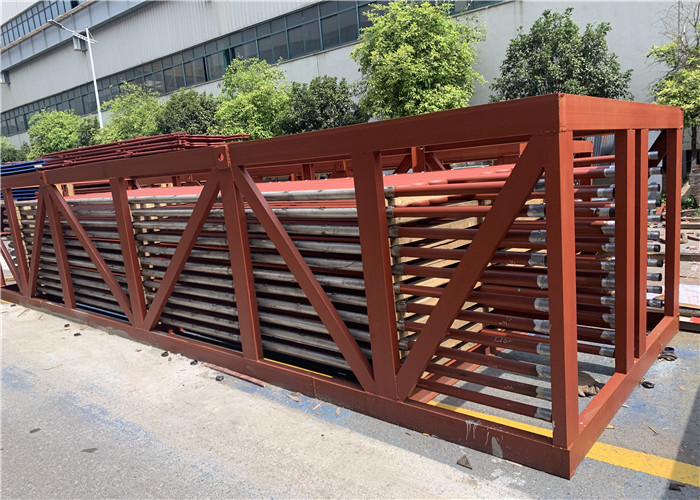

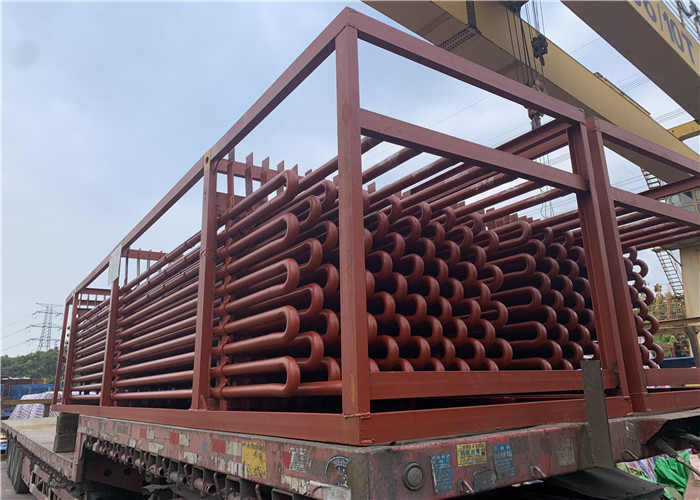

Packing and Shipping:
Packaging and Shipping for Superheater Coil:
- The coil will be strapped to a wooden pallet for protection during shipping.
- The pallet will be wrapped in plastic for additional protection.
- The pallet will be shrink wrapped for added security.
- The pallet will be loaded onto a truck for delivery.
FAQ:
Q1: What is a Superheater Coil?
A1: Superheater Coil is a heating element used to heat the water vapor in a boiler system and increase the temperature of the steam produced by the boiler, used in various industries and provided by reliable manufacturers in China.
Q2: Where is Superheater Coil from?
A2: Superheater Coil is manufactured in China with reliable quality.
Q3: What industries use Superheater Coil?
A3: Superheater Coil is widely used in industrial applications such as food production, pharmaceuticals, petrochemicals, power plants, and other industries that require high-temperature steam.
Q4: What materials are used for Superheater Coil?
A4: Superheater Coil is made of high-grade alloy steel and stainless steel, ensuring a long service life and reliable performance.
Q5: What is the advantage of Superheater Coil?
A5: Superheater Coil is corrosion-resistant, has high heat transfer efficiency, and is easy to install and maintain.
