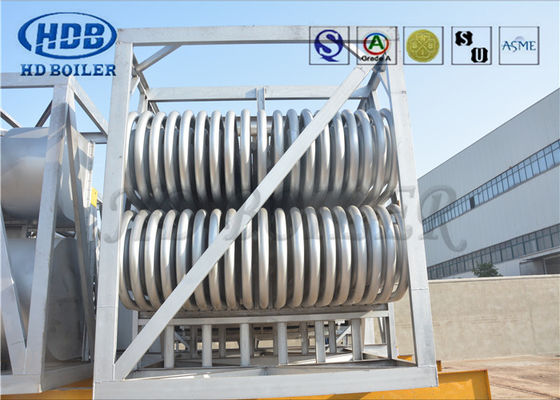

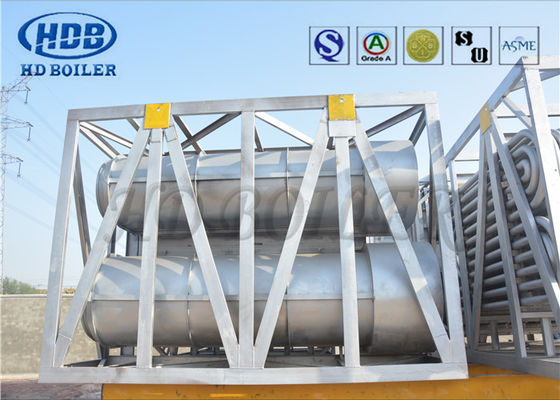

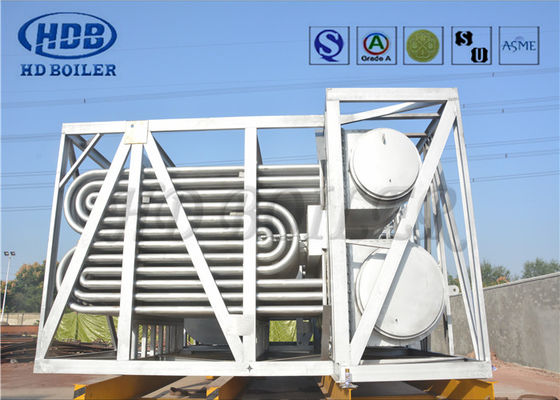

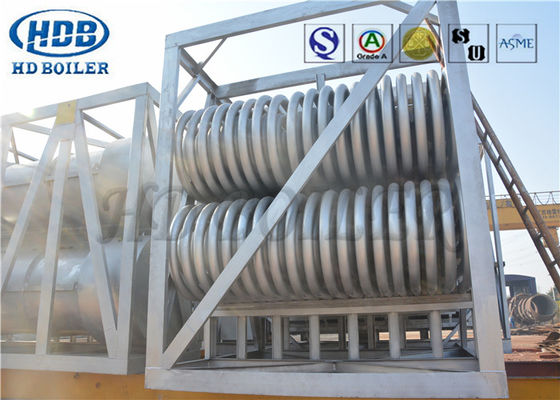

ISO Boiler Air Preheater In A Steam Power Plant Recuperator Parallel Flow Cold
Product Details
| Fuel: | Coal/Gas/Oil-fired, Water Heat | Type: | Boiler Air Preheater |
|---|---|---|---|
| Range Of Applications: | Power Plant | Specification: | ASME Inspection |
| Inspection: | ASME Inspection | Dimension Of Tube: | 38.1*3.2 |
| Fuel Of Boiler: | Coal/Gas/Coal-fired/Water Heat | Keyword: | Keyword |
| Keywords: | Boiler Membrane Wall | Materials: | Carbon Steel / Stainless Steel |
| Usage: | Power Plant/CFB Boiler | ||
| Highlight |
Parallel Flow Boiler Air Preheater,Boiler Air Preheater Recuperator,ISO air preheater in a steam power plant |
||
Product Description
Naturally Circulated High Efficient Boiler Air Preheater for Power Station ASME Standard
Product Description
Air pre-heater is a kind of equipment used to improve the heat exchange performance and reduce energy consumption of the boiler, which means that the flue gas in the tail flue of the boiler will preheat the air before entering the boiler to a certain temperature through the internal radiator. Air preheater is generally divided into three types: plate type, rotary type and tube type. Taking the rotary type as an example, the working principle of air preheater is introduced. A large number of unburned combustibles will deposit on the heat transfer elements, which may cause the air preheater to ignite. The causes of ignition and the countermeasures are described in detail. The shutdown analysis and air leakage control are also introduced in detail.
Different types
For the use in Steam Generators (boilers)in Thermal power stations of Utility power stations, there are two types of design of the Airpreheaters. One is a tubular type built into the boiler outlet Flue_gas ducting and another one is of the regenerative type known as Ljungstrom (named after the name of inventor) Regenerative Air Pre Heater(RAPH),a rotating type. This may be horizontal (now very common in power generation utilities) or vertical.
Parameter
| Name | Thermal efficiency improving coal fired industrial steam boiler combustion APH air preheater |
| Material | Carbon steel or equivalent |
| Structure | vertical |
| Tubes | enameled seam or seamless tubes |
| Tube OD | as required |
| Enamel thickness | 0.34+/-0.06mm |
| Size | Customzied design |
Product advantages
1. High corrosion resistance property;
2. Small covering area;
3. Pipe and tube plate in every link between separated, the heated bilges cold heat distortion is not bound to avoid stress destruction;
4. Single pipe, tube single or parts of equipment failure does not affect the heat normal operation, two fluid were heat tube, can go outside fin
Parameters
| Layout item | Horizontal layout | Vertical layout |
| Tube arrangement | staggered arrangement / in-line arrangement |
staggered arrangement / in-line arrangement |
| Sealing of pipe and plate | Packing heat- resistant material/ welding |
welding |
| Anti-wearing | a,when gas scours external tube, welcoming smoke tubes have protective tile b,when gas scours inside tube,wear casing pipes are installed in gas inlet. |
|
Company Information
The products of our company have been widely used in major power plants of various provinces and cities in China, bringing stable and significant economic and social benefits to cooperated power plants. At the same time, we attach great importance to product development and strive to improve product quality. Through the cooperation with a number of domestic and foreign companies, we constantly explore the international market.
