Steam Boiler Primary Secondary Superheater And Reheater Components
Product Details
| Application: | Boiler | Corrosion Resistance: | High |
|---|---|---|---|
| Material: | Alloy Steel | Pressure Range: | Customized |
| Size: | Customized | Surface Treatment: | Painted |
| Tube Diameter: | 10-50 Mm | Port: | Shanghai |
| Highlight |
Steam Boiler Superheater and Reheater,Secondary Superheater and Reheater,Steam primary superheater and secondary superheater |
||
Product Description
Superheater And Reheater Essential Components For High-Performance Steam Boiler
Product Description

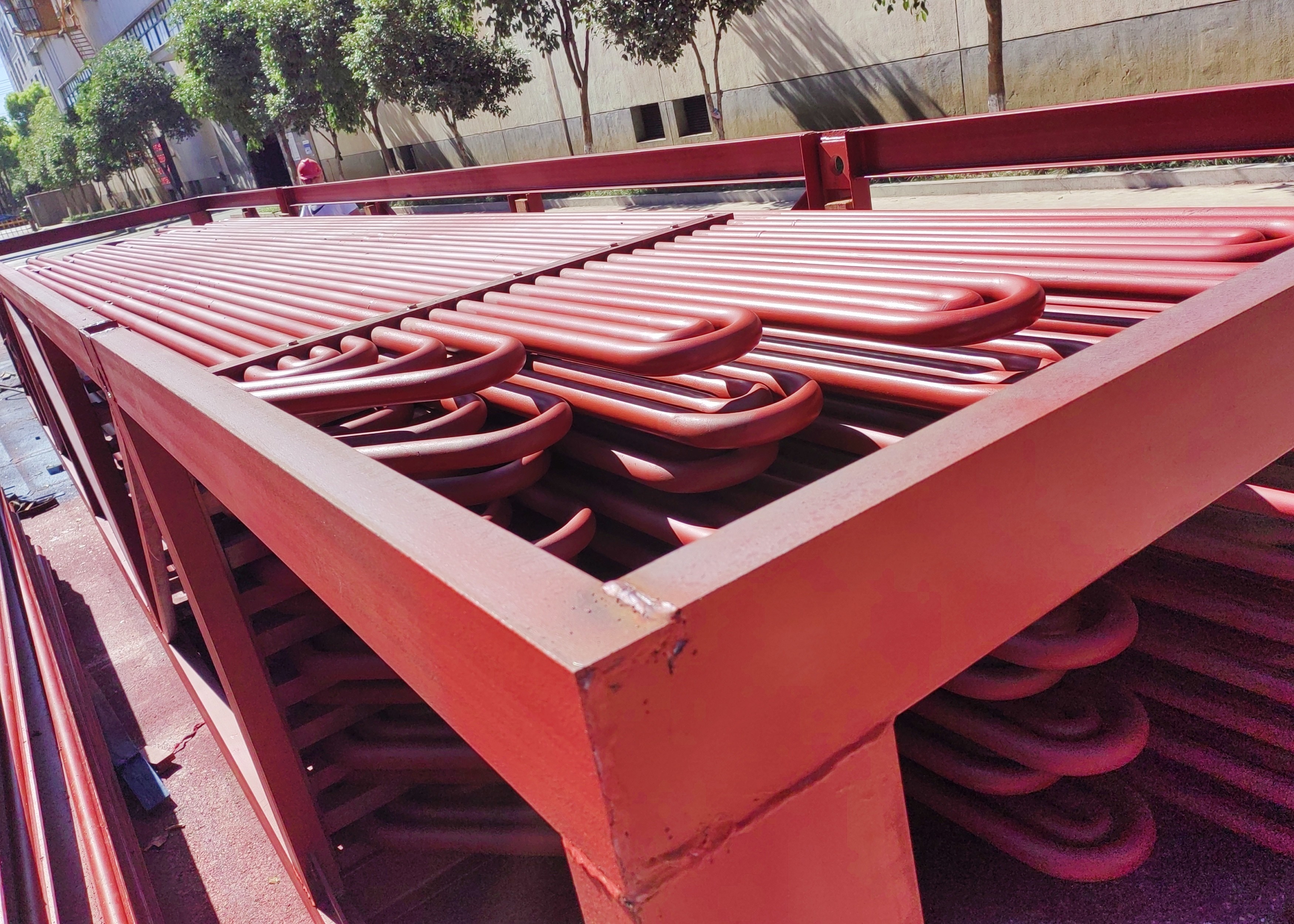

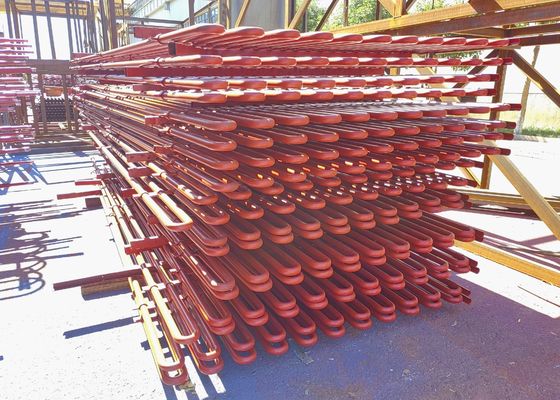

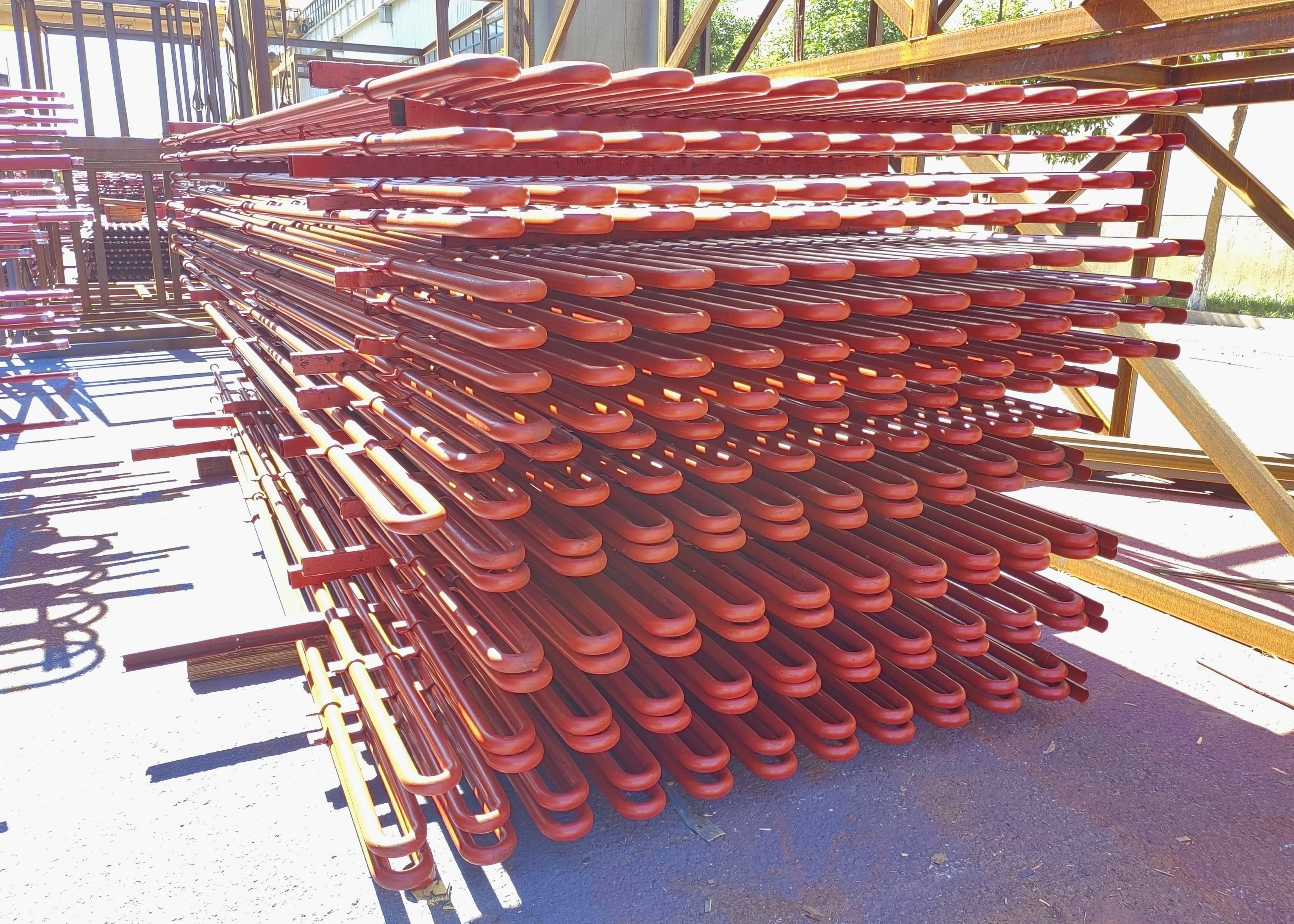

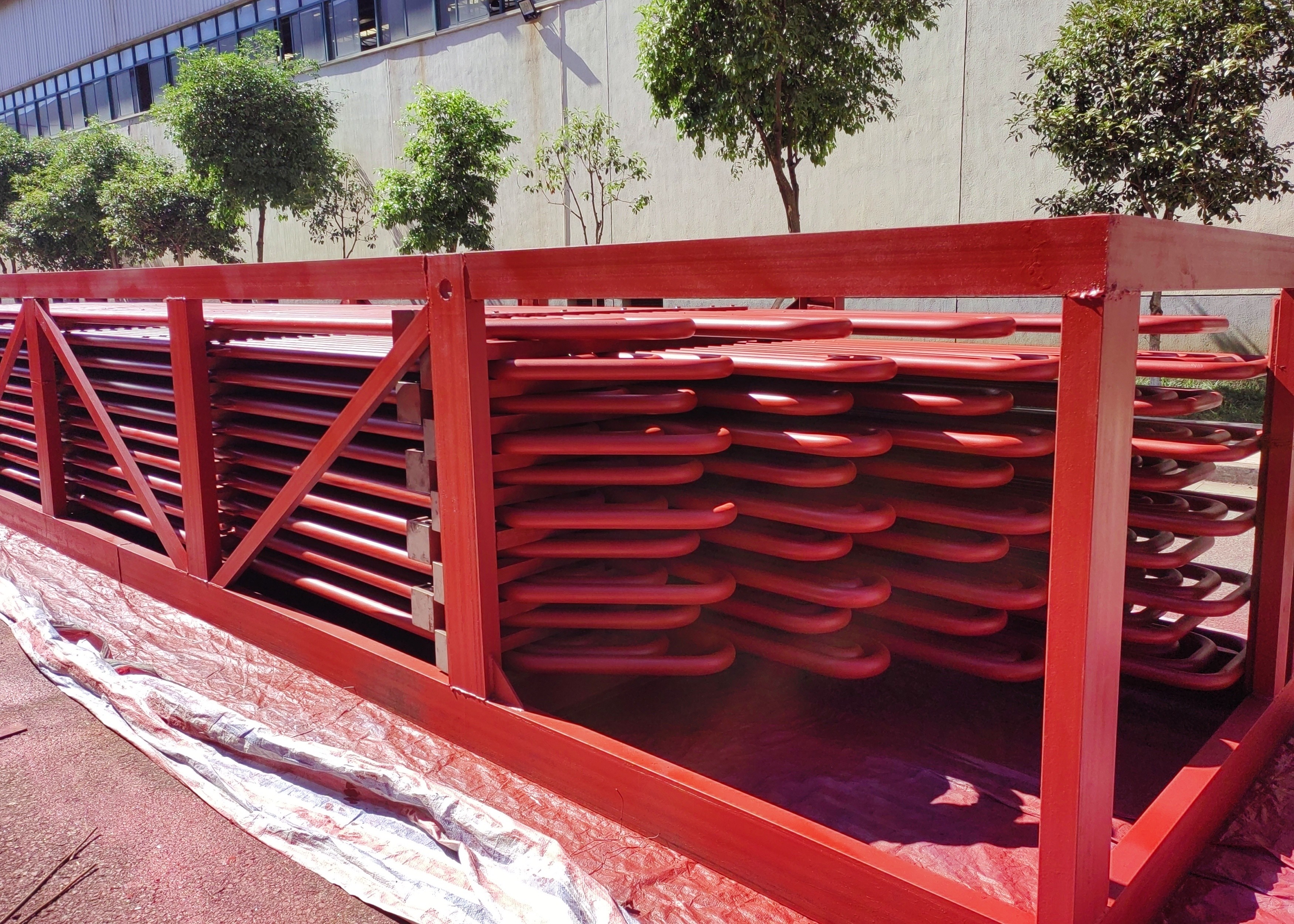

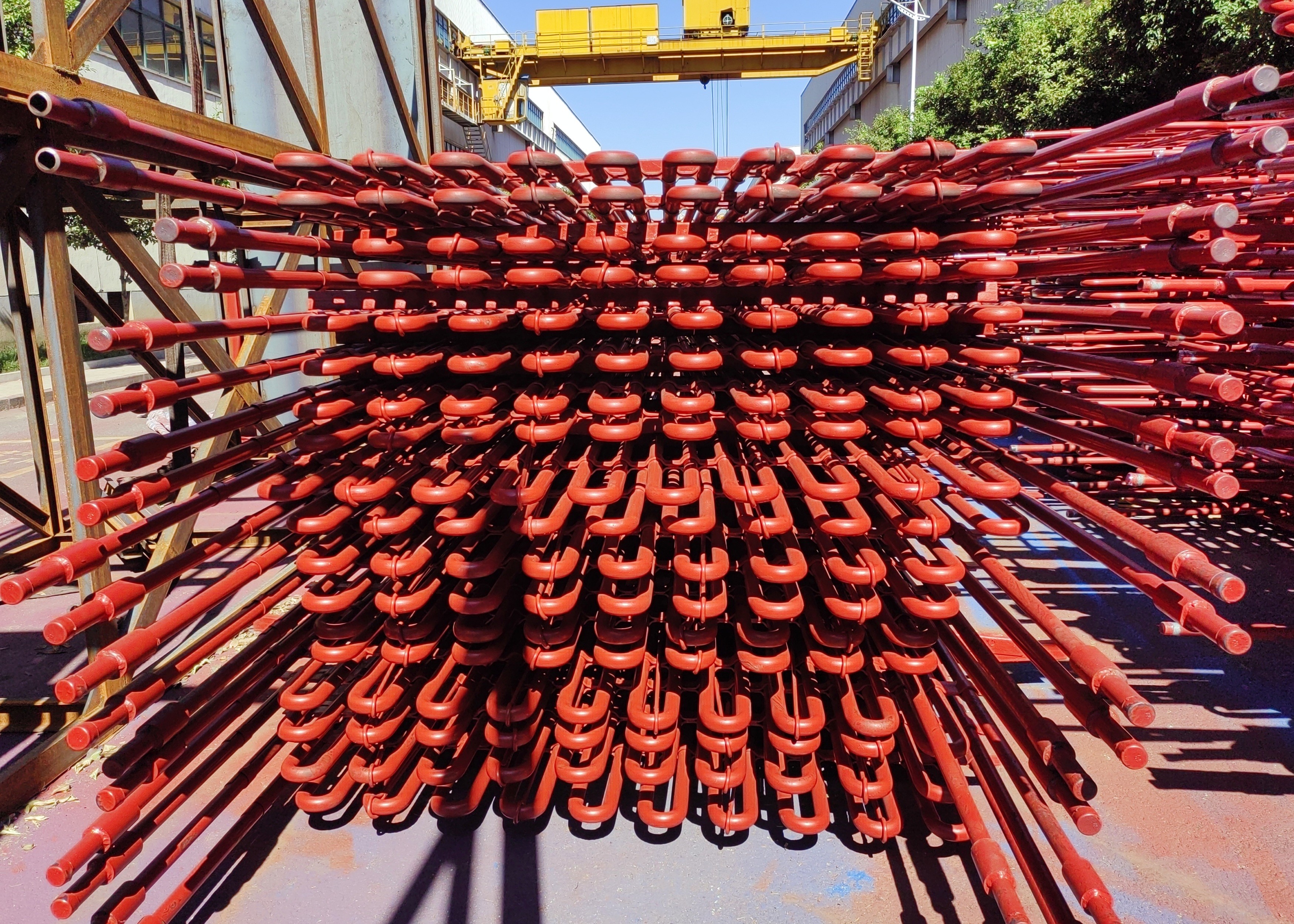

Superheater coil is a heating device, and the superheater coil is related to the steam superheater, which is used to further heat the steam from the saturation temperature to the superheating temperature to improve the circulating thermal efficiency of the steam power unit. Superheater coils are designed and installed to provide similar heating results, but with a greater focus on cost-effectiveness and ease of operation. Superheaters can be divided into convection, radiation and semi-radiation according to the heat transfer mode, and can be divided into serpentine tube type and screen type according to the structural characteristics. Superheater coil units are characterized by high efficiency, flexible application (horizontal or vertical installation on air channels), multiple control options (accurate temperature control, 1st, 2nd or multi-stage combustion capacity adjustment), long life (heat exchanger coils are fixed to the smoke box by expansion rather than welding, made of aluminized steel or stainless steel), and low cost (cost reduction due to easy installation).
Technical Parameters
| Product Name | Steam Boiler Superheater Coils |
| Tube Material | SA192 |
| Coil Type | Serpentine Coils |
| Tube Diameter | 10-50 mm |
| Tube Thickness | Customized |
| Coil Length | Customized |
| Heat Transfer Area | Customized |
| Pressure Range | Customized |
| Temperature Range | Up to 1000°C |
| Application | Boiler |
| Warranty | 1 Year |
Feature
- Product Name: Industrial Boiler Superheater Coils
- Surface Treatment: Painted
- Size: Customized
- Heat Transfer Area: Customized
- Application: Superheater Coils for Boiler
- Pressure Range: Customized
This product is specially designed for use in coal fired boilers. It is a durable and efficient solution for increasing the temperature and pressure of steam produced by the boiler. The industrial boiler superheater coils can be customized to meet the specific needs of your boiler system.
Application
| Description | Boiler superheater |
| Material | Alloy steel, Carbon steel etc. |
| Material Standard | ASTM, EN or ISO etc. |
| Structure Type | Tube Coil |
| Dimension | Customized |
| Supply Ability | 500 ton per month |
| Manufacturing Process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Bending tube→Assembly→Inspection →RT→Heat treatment (annealing)→Hydraulic pressure test→Painting→ Packaging |
| Thermal Efficiency | Around 95% |
Packing and Shipping
Product Packaging:
- The superheater coils will be securely packed in wooden crates to ensure safe transportation.
- The crates will be labeled with the product name, quantity, and any other necessary details.
- We take great care in packaging our products to minimize any potential damage during shipping.
Shipping:
- We offer worldwide shipping for our superheater coils.
- The shipping method and carrier will be determined based on the customer's preference and location.
- Shipping costs will be calculated and included in the final invoice.
- We strive to provide timely and efficient shipping to our customers.
FAQ
Q1: What is a Superheater Coil?
A1: Superheater Coil is a heating element used to heat the water vapor in a boiler system and increase the temperature of the steam produced by the boiler, used in various industries and provided by reliable manufacturers in China.
Q2: Where is Superheater Coil from?
A2: Superheater Coil is manufactured in China with reliable quality.
Q3: What industries use Superheater Coil?
A3: Superheater Coil is widely used in industrial applications such as food production, pharmaceuticals, petrochemicals, power plants, and other industries that require high-temperature steam.
Q4: What materials are used for Superheater Coil?
A4: Superheater Coil is made of high-grade alloy steel and stainless steel, ensuring a long service life and reliable performance.
Q5: What is the advantage of Superheater Coil?
A5: Superheater Coil is corrosion-resistant, has high heat transfer efficiency, and is easy to install and maintain.
