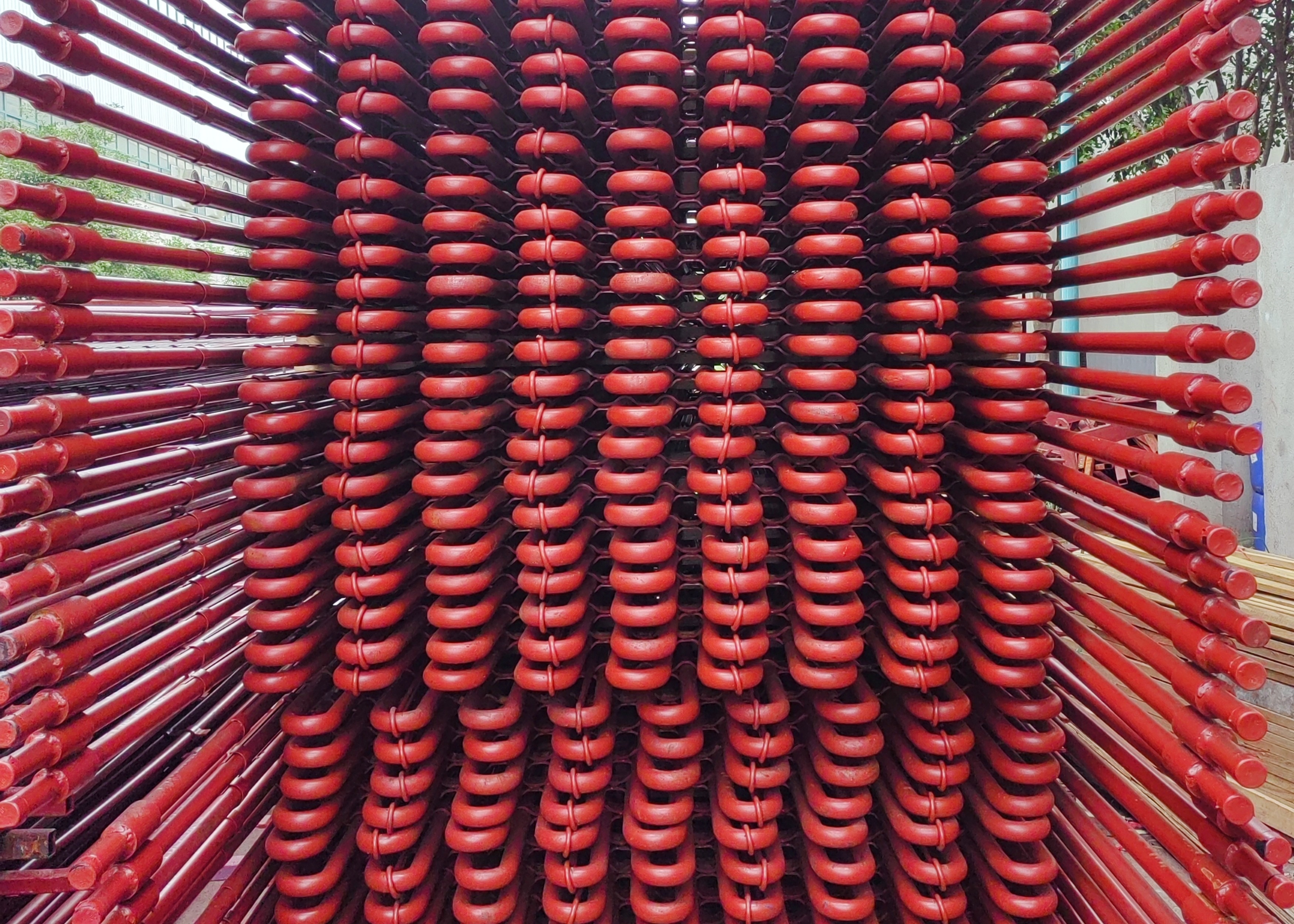

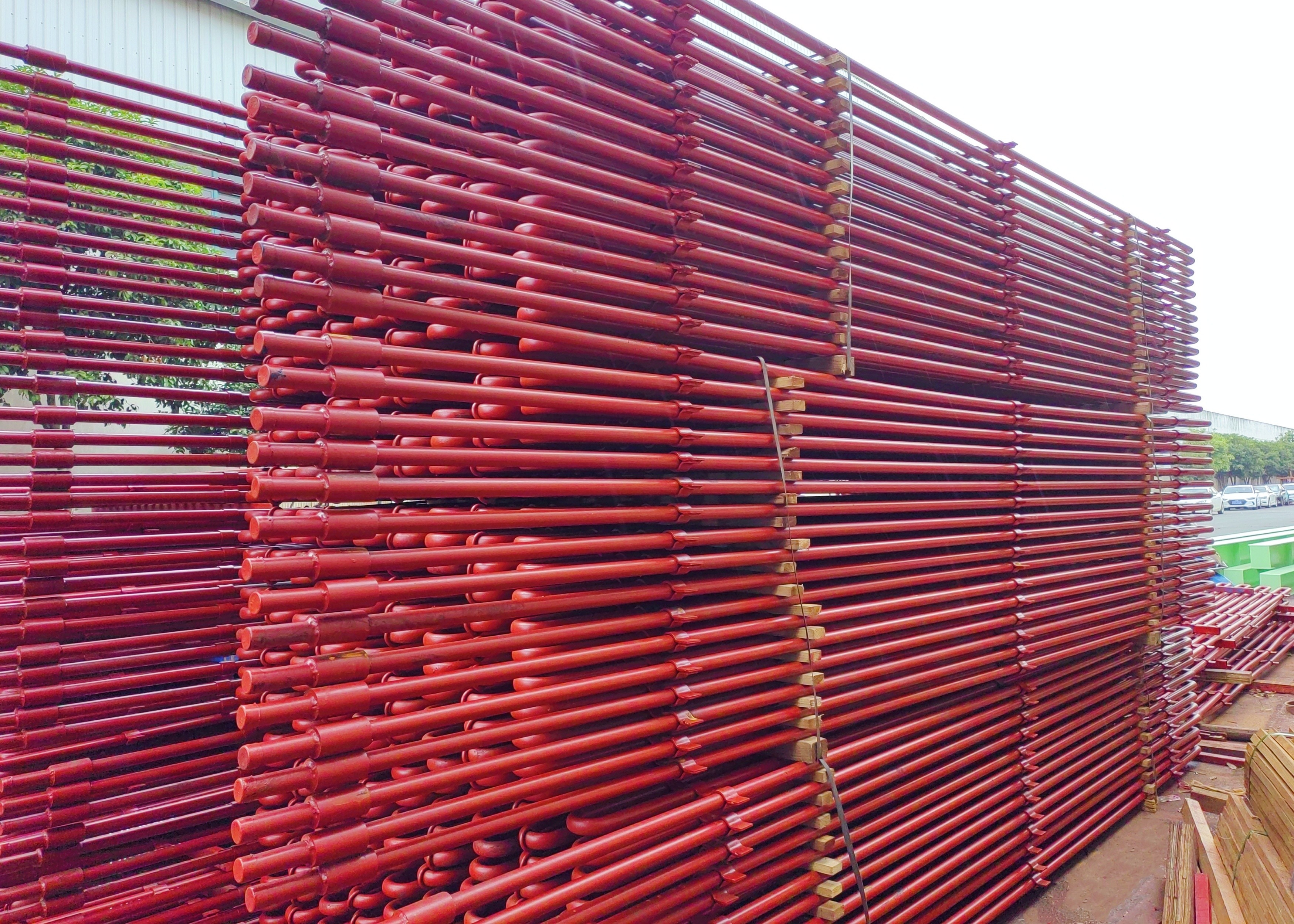

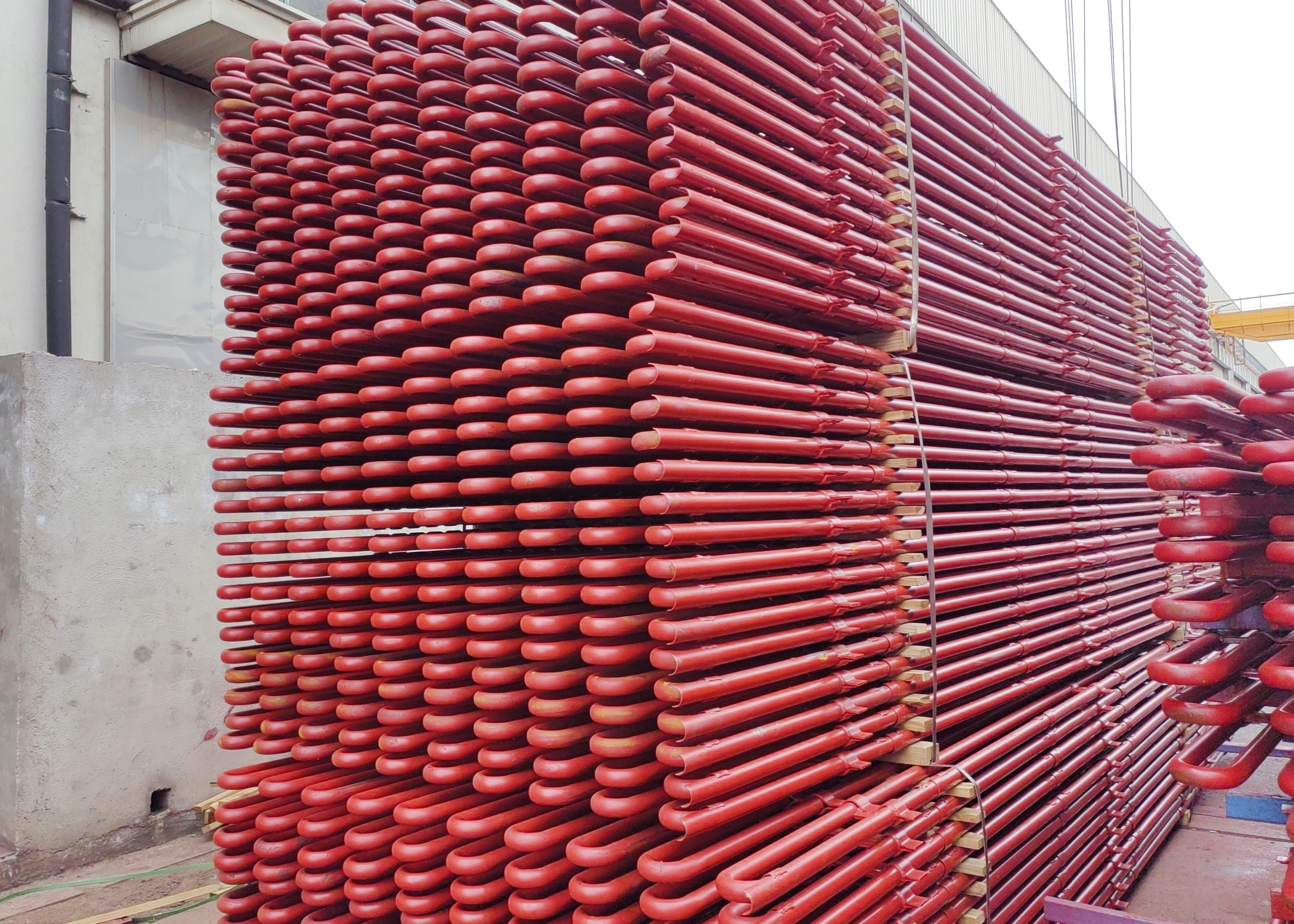

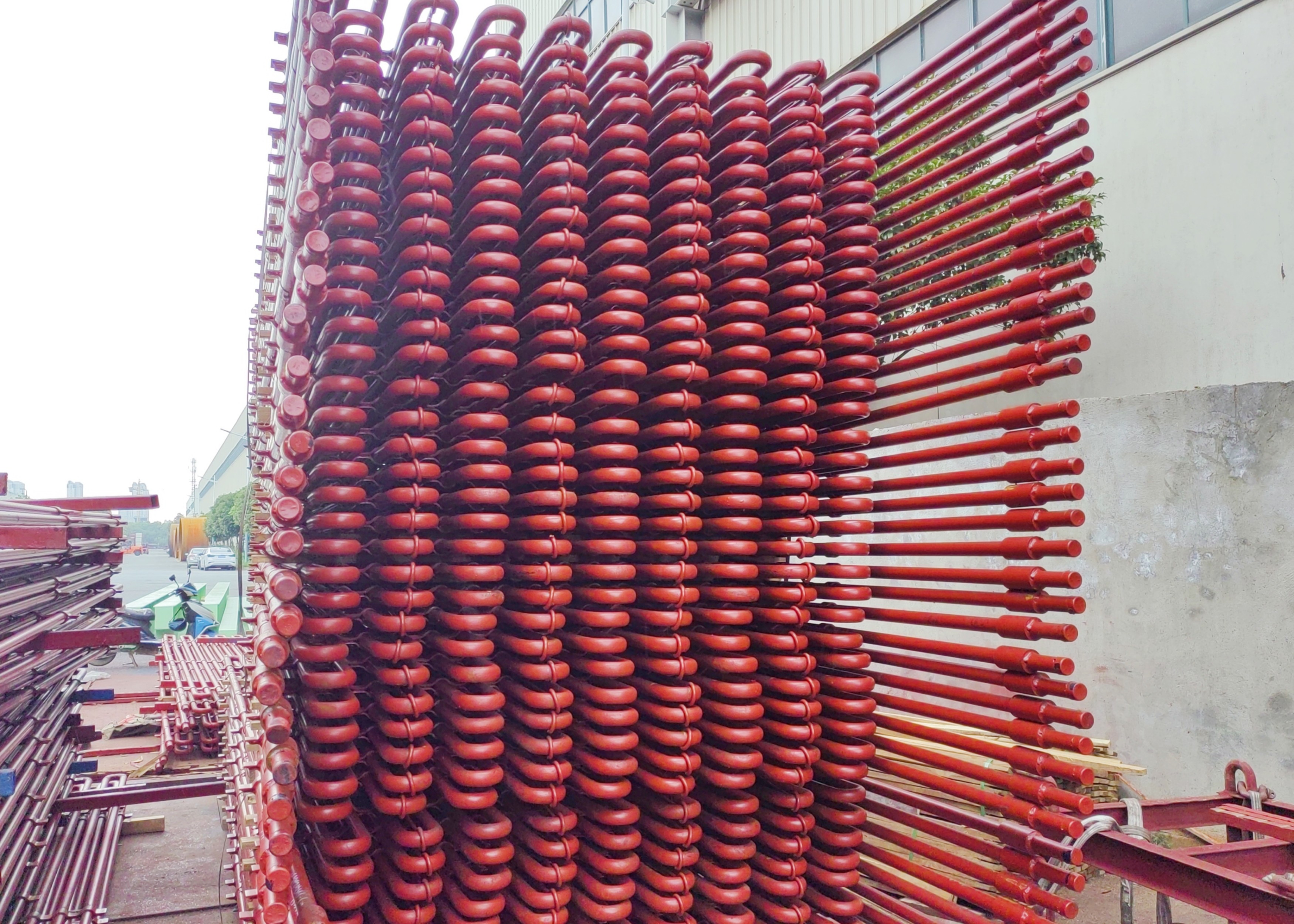

Boiler Primary Superheater Reheater Economiser In Steam Power Plant
| Place of Origin | China |
|---|---|
| Brand Name | SANCO |
| Certification | ISO, ASME, EN |
| Minimum Order Quantity | 3 TONS |
| Price | Negotiated |
| Packaging Details | Customized |
| Delivery Time | 30 |
| Payment Terms | Negotiated |
| Supply Ability | 1500 ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Boiler, Heat Exchanger, Condenser | Material | Alloy Steel , Stainless Steel，Carbon Steel |
|---|---|---|---|
| Technique | Pipe Bending | Pressure Range | Customized |
| Heat Transfer | High Efficiency | Surface Treatment | Painted |
| Port | Shanghai；Zhang Jiagang | Inspection | ASME Third Praty Inspection |
| Highlight | Boiler primary superheater,Steam primary superheater,Primary economiser in steam power plant |
||
Product Description
Energy-Saving Boiler Superheater And Reheater Improving Thermal Cycle Efficiency
Product Description
Both superheaters and reheaters are components in the boiler that are used to increase the temperature of steam. Increase the enthalpy of steam to increase the functional force of steam and improve the thermal cycle efficiency of the power plant. The function of the superheater is to heat saturated steam into superheated steam with a certain temperature. When the boiler load or other working conditions change, the superheated steam temperature should be guaranteed to be normal and within the allowable fluctuation range. The function of the reheater is to heat the exhaust steam of the high-pressure cylinder of the steam turbine to a reheating temperature equal to (or similar) to the superheated steam temperature, and then send it to the medium-pressure cylinder and the low-pressure cylinder to expand and do work, so as to improve the dryness of the steam at the tail of the steam turbine.
Technical Parameters
| Product Name | Steam Boiler Superheater Coils |
| Tube Material | SA192 |
| Coil Type | Serpentine Coils |
| Tube Diameter | 10-50 mm |
| Tube Thickness | Customized |
| Coil Length | Customized |
| Heat Transfer Area | Customized |
| Pressure Range | Customized |
| Temperature Range | Up to 1000°C |
| Application | Boiler |
| Warranty | 1 Year |
Feature
- Product Name: Industrial Boiler Superheater Coils
- Surface Treatment: Painted
- Size: Customized
- Heat Transfer Area: Customized
- Application: Superheater Coils for Boiler
- Pressure Range: Customized
This product is specially designed for use in coal fired boilers. It is a durable and efficient solution for increasing the temperature and pressure of steam produced by the boiler. The industrial boiler superheater coils can be customized to meet the specific needs of your boiler system.
Application
| Description | Boiler superheater |
| Material | Alloy steel, Carbon steel etc. |
| Material Standard | ASTM, EN or ISO etc. |
| Structure Type | Tube Coil |
| Dimension | Customized |
| Supply Ability | 500 ton per month |
| Manufacturing Process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Bending tube→Assembly→Inspection →RT→Heat treatment (annealing)→Hydraulic pressure test→Painting→ Packaging |
| Thermal Efficiency | Around 95% |
Packing and Shipping
Product Packaging:
- The superheater coils will be securely packed in wooden crates to ensure safe transportation.
- The crates will be labeled with the product name, quantity, and any other necessary details.
- We take great care in packaging our products to minimize any potential damage during shipping.
Shipping:
- We offer worldwide shipping for our superheater coils.
- The shipping method and carrier will be determined based on the customer's preference and location.
- Shipping costs will be calculated and included in the final invoice.
- We strive to provide timely and efficient shipping to our customers.
FAQ
Q1: What is a Superheater Coil?
A1: Superheater Coil is a heating element used to heat the water vapor in a boiler system and increase the temperature of the steam produced by the boiler, used in various industries and provided by reliable manufacturers in China.
Q2: Where is Superheater Coil from?
A2: Superheater Coil is manufactured in China with reliable quality.
Q3: What industries use Superheater Coil?
A3: Superheater Coil is widely used in industrial applications such as food production, pharmaceuticals, petrochemicals, power plants, and other industries that require high-temperature steam.
Q4: What materials are used for Superheater Coil?
A4: Superheater Coil is made of high-grade alloy steel and stainless steel, ensuring a long service life and reliable performance.
Q5: What is the advantage of Superheater Coil?
A5: Superheater Coil is corrosion-resistant, has high heat transfer efficiency, and is easy to install and maintain.
