Boiler Secondary Superheater Reheater Separately Fired ODM
Product Details
| Application: | Boiler, Heat Exchanger, Condenser | Material: | Alloy Steel , Stainless Steel，Carbon Steel |
|---|---|---|---|
| Technique: | Pipe Bending | Pressure Range: | Customized |
| Heat Transfer: | High Efficiency | Surface Treatment: | Painted |
| Port: | Shanghai；Zhang Jiagang | Packing: | Iron Frame Package |
| Highlight |
Boiler secondary superheater,ODM secondary superheater,ODM separately fired superheater |
||
Product Description
Product Description
The superheater is located inside the boiler of the steam turbine, generally at the tail of the boiler. Its function is to heat the water vapor that has been partially removed from the heat energy, and then increase its temperature to reach a higher temperature and pressure, so that the drum can withstand greater loads. The function of the superheater is to improve the thermal efficiency of the steam turbine while ensuring that the pressure remains constant. The specific working principle is a thermodynamic process, where water vapor passes through the superheater at high temperature and pressure. It has the following advantages: improving the thermal efficiency of the steam turbine; extend turbine life; reduced heat loss and energy consumption.
Technical Parameters

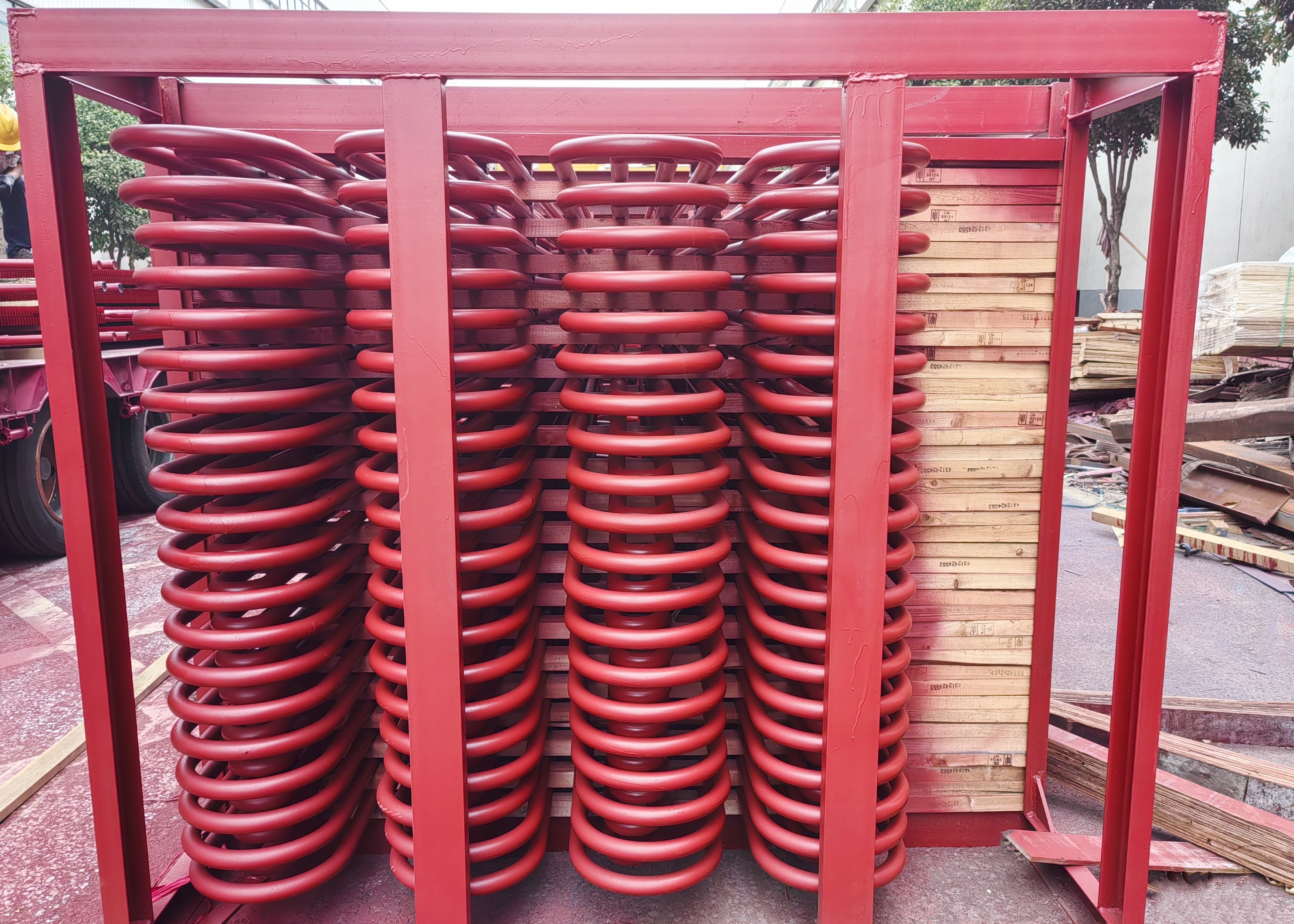

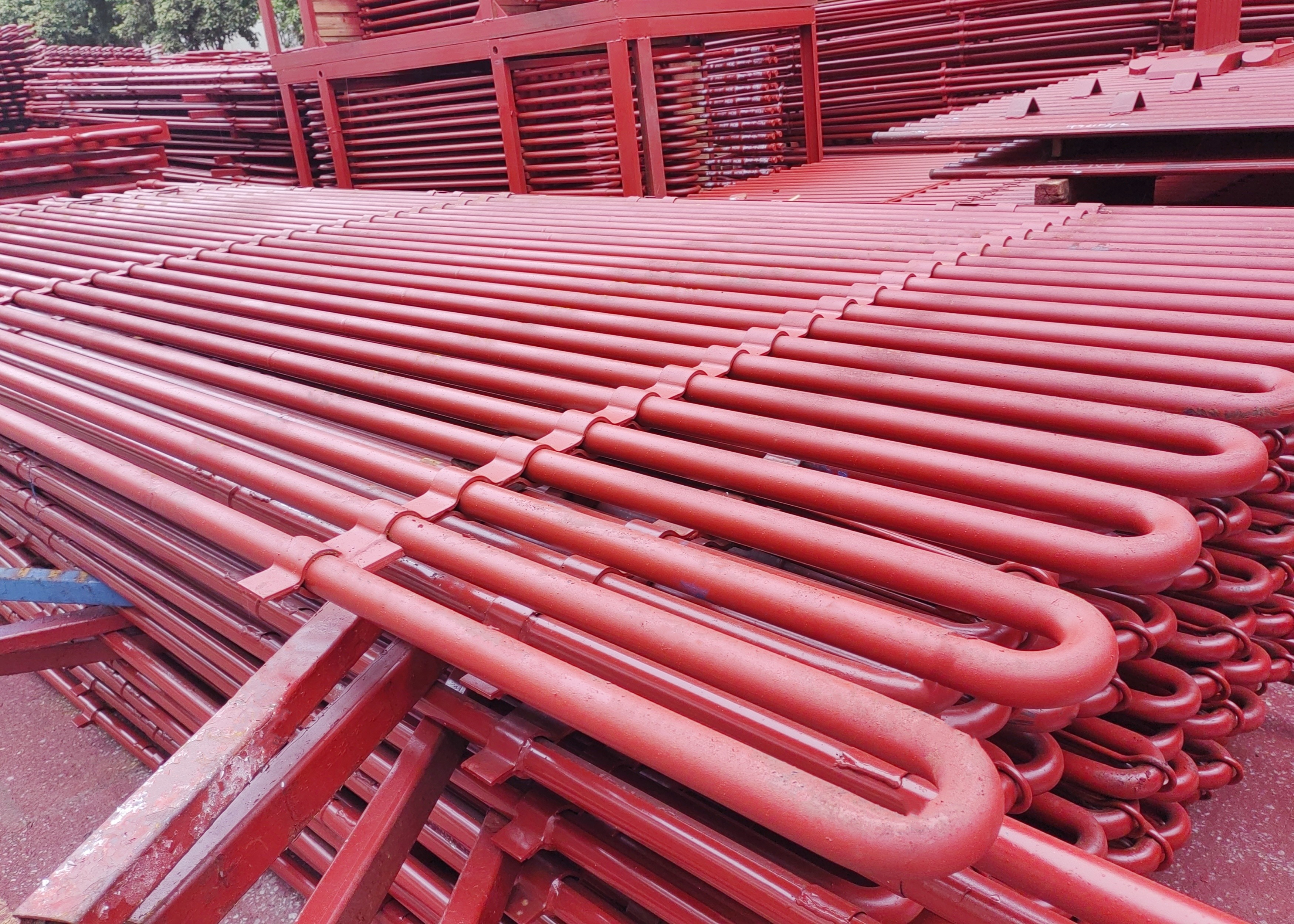

| Product Name | Steam Boiler Superheater Coils |
| Tube Material | SA192 |
| Coil Type | Serpentine Coils |
| Tube Diameter | 10-50 mm |
| Tube Thickness | Customized |
| Coil Length | Customized |
| Heat Transfer Area | Customized |
| Pressure Range | Customized |
| Temperature Range | Up to 1000°C |
| Application | Boiler |
| Warranty | 1 Year |
Feature
- Product Name: Industrial Boiler Superheater Coils
- Surface Treatment: Painted
- Size: Customized
- Heat Transfer Area: Customized
- Application: Superheater Coils for Boiler
- Pressure Range: Customized
This product is specially designed for use in coal fired boilers. It is a durable and efficient solution for increasing the temperature and pressure of steam produced by the boiler. The industrial boiler superheater coils can be customized to meet the specific needs of your boiler system.
Application
| Description | Boiler superheater |
| Material | Alloy steel, Carbon steel etc. |
| Material Standard | ASTM, EN or ISO etc. |
| Structure Type | Tube Coil |
| Dimension | Customized |
| Supply Ability | 500 ton per month |
| Manufacturing Process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Bending tube→Assembly→Inspection →RT→Heat treatment (annealing)→Hydraulic pressure test→Painting→ Packaging |
| Thermal Efficiency | Around 95% |
Packing and Shipping
Product Packaging:

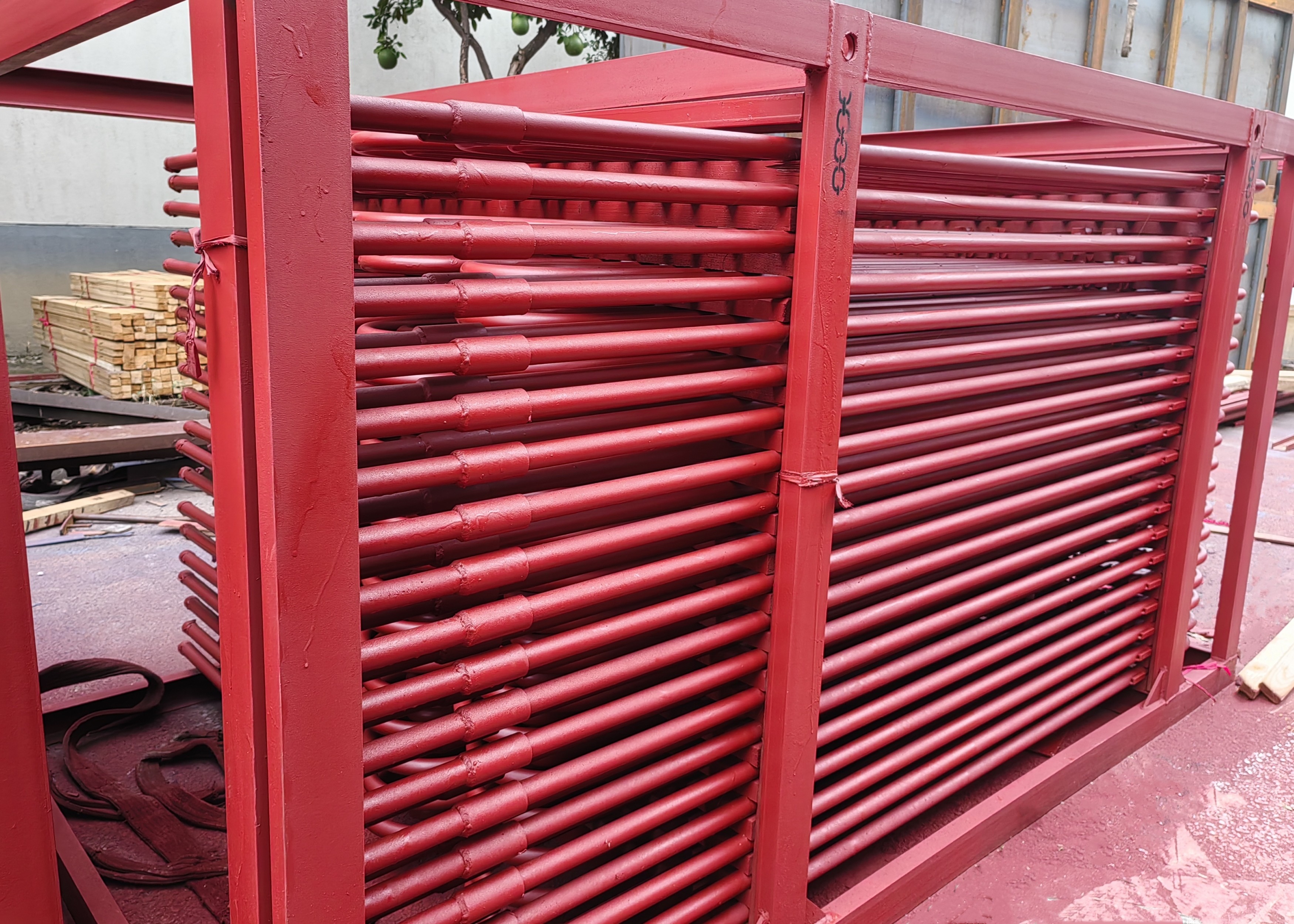

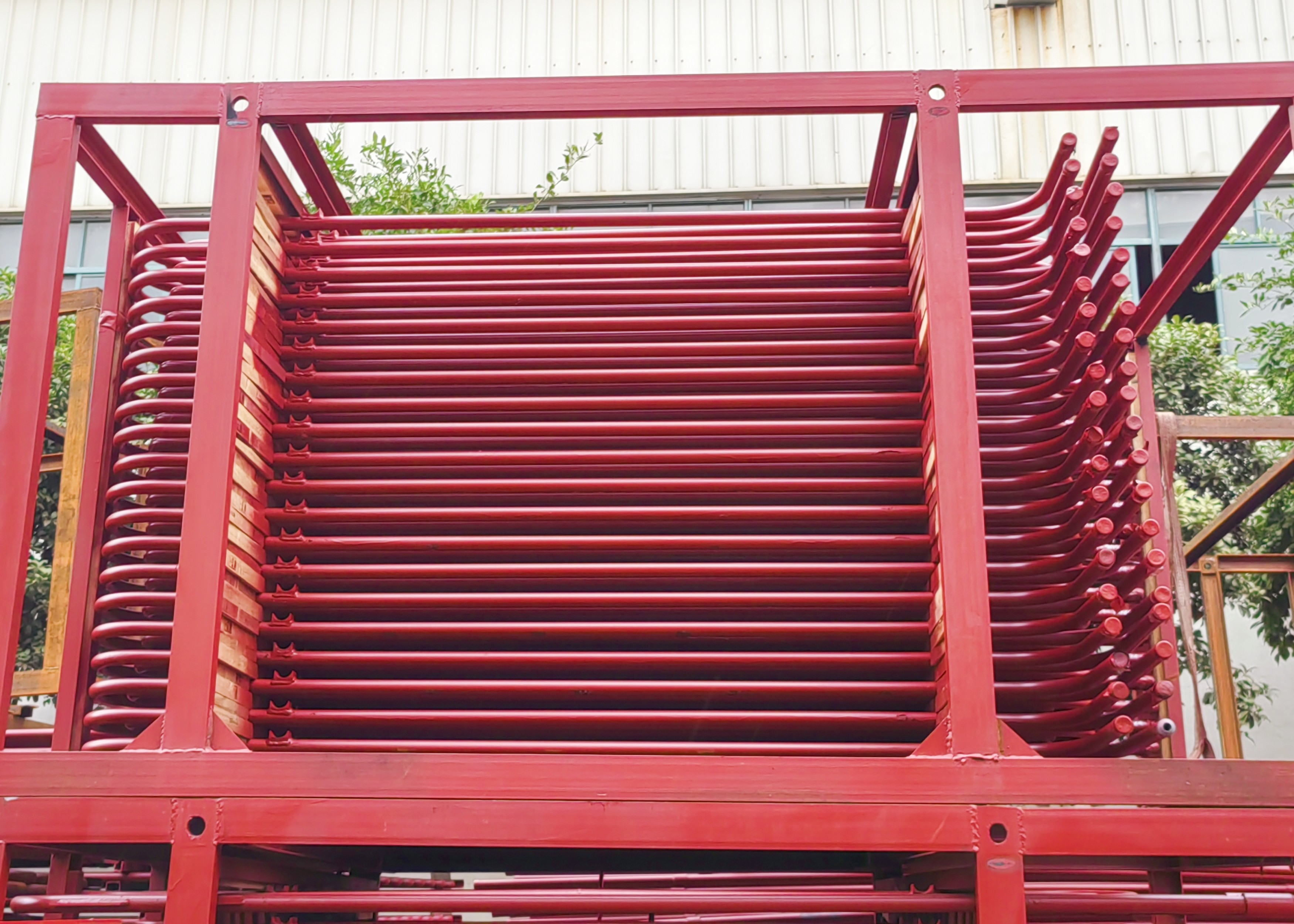

- The superheater coils will be securely packed in wooden crates to ensure safe transportation.
- The crates will be labeled with the product name, quantity, and any other necessary details.
- We take great care in packaging our products to minimize any potential damage during shipping.
Shipping:
- We offer worldwide shipping for our superheater coils.
- The shipping method and carrier will be determined based on the customer's preference and location.
- Shipping costs will be calculated and included in the final invoice.
- We strive to provide timely and efficient shipping to our customers.
FAQ
Q1: What is a Superheater Coil?
A1: Superheater Coil is a heating element used to heat the water vapor in a boiler system and increase the temperature of the steam produced by the boiler, used in various industries and provided by reliable manufacturers in China.
Q2: Where is Superheater Coil from?
A2: Superheater Coil is manufactured in China with reliable quality.
Q3: What industries use Superheater Coil?
A3: Superheater Coil is widely used in industrial applications such as food production, pharmaceuticals, petrochemicals, power plants, and other industries that require high-temperature steam.
Q4: What materials are used for Superheater Coil?
A4: Superheater Coil is made of high-grade alloy steel and stainless steel, ensuring a long service life and reliable performance.
Q5: What is the advantage of Superheater Coil?
A5: Superheater Coil is corrosion-resistant, has high heat transfer efficiency, and is easy to install and maintain.
