Carbon Steel Painted Steam Superheater And Reheater For Boiler Systems
Product Details
| Application: | Boilers, Heat Exchangers, Air Coolers, Etc. | Material: | Alloy Steel , Stainless Steel，Carbon Steel |
|---|---|---|---|
| Pressure Range: | Customized | Corrosion Resistance: | High |
| Tube Length: | Up To 10 M | Surface Treatment: | Painted |
| Tube Diameter: | 10-50 Mm | Port: | Zhangjiagang，Shanghai |
| Highlight |
Painted steam Superheater and Reheater,Boiler Systems Superheater and Reheater,Boiler Systems steam superheater |
||
Product Description
Carbon Steel Painted Superheater And Reheater For Various Boiler Systems
Product Description

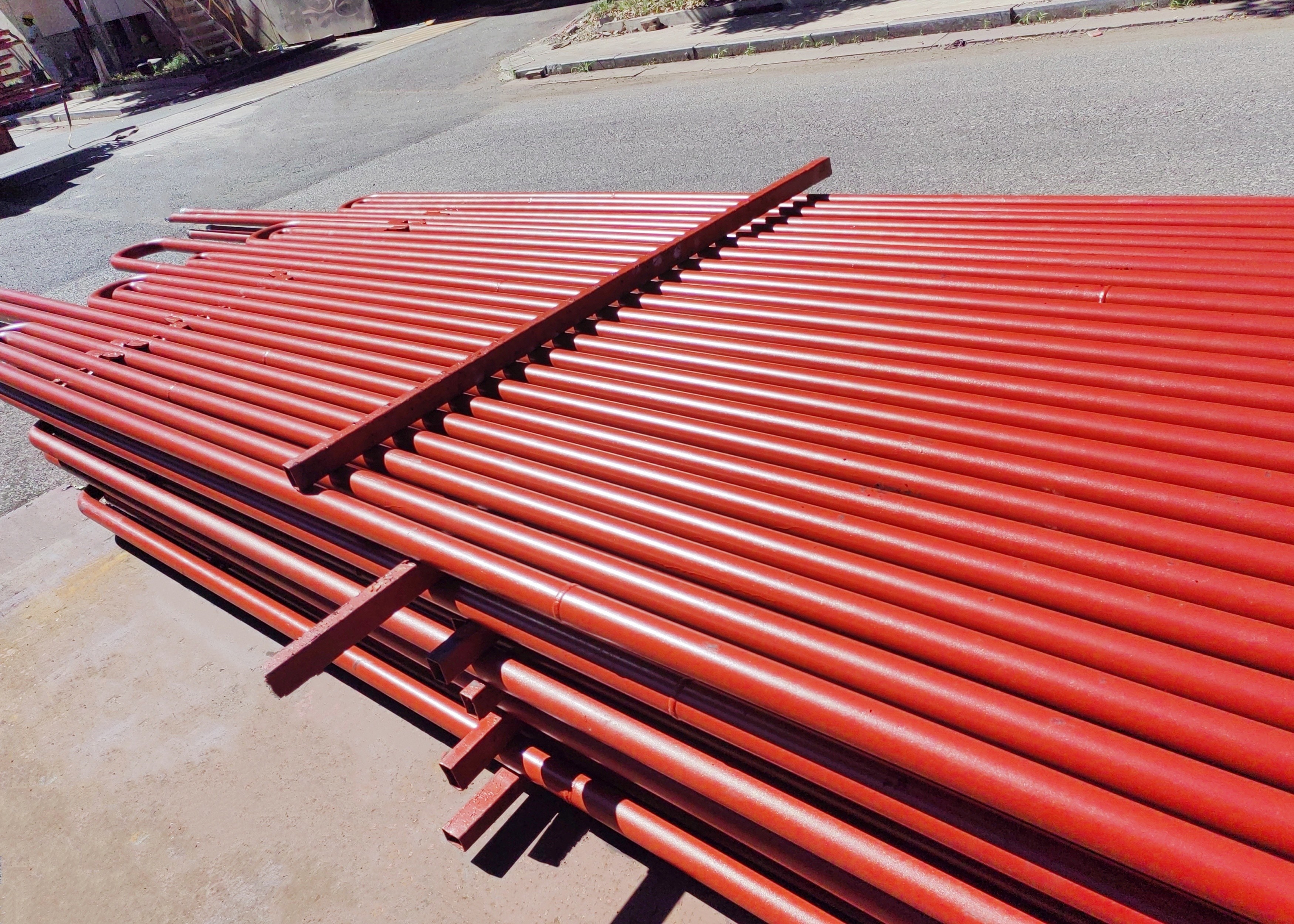

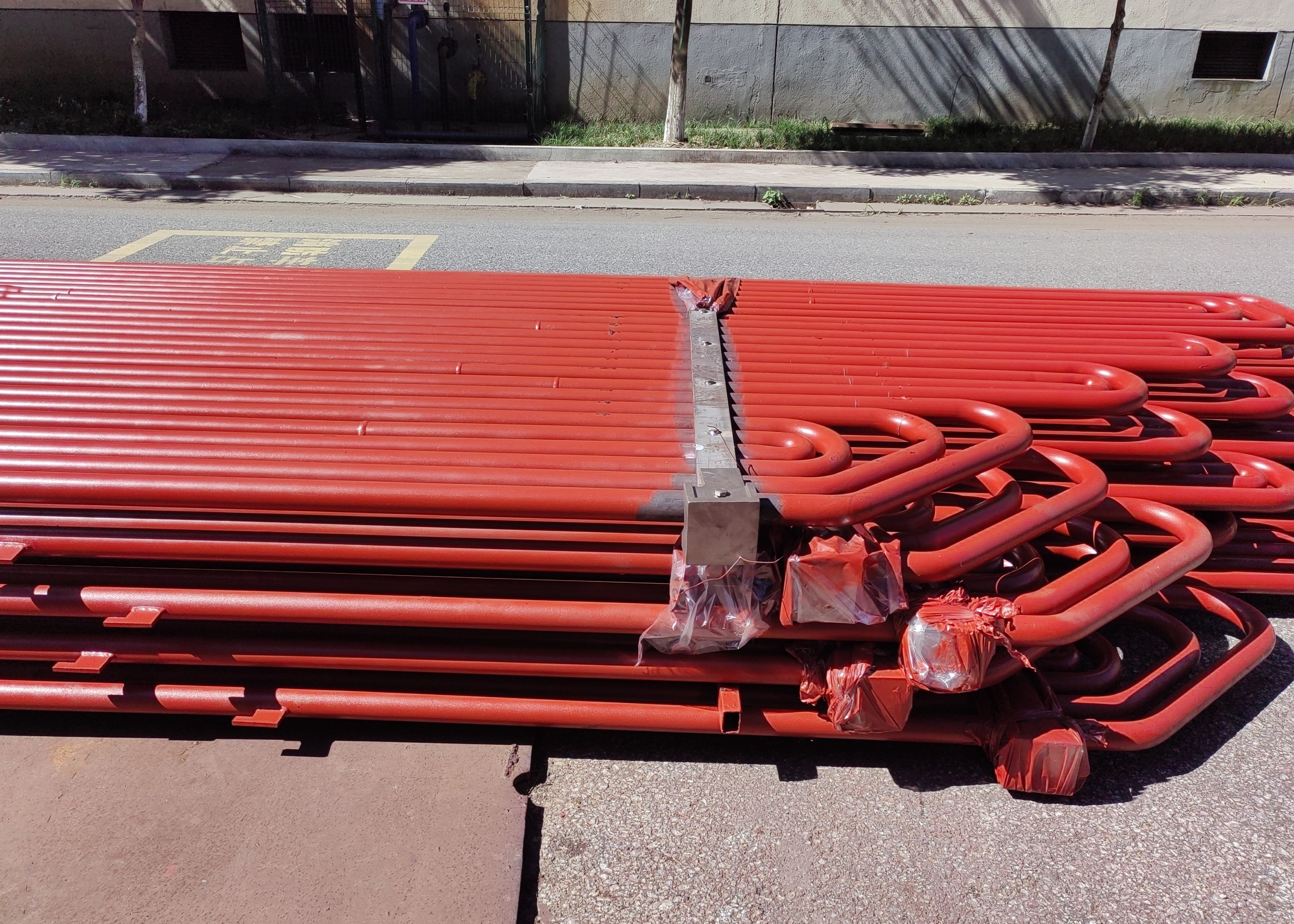

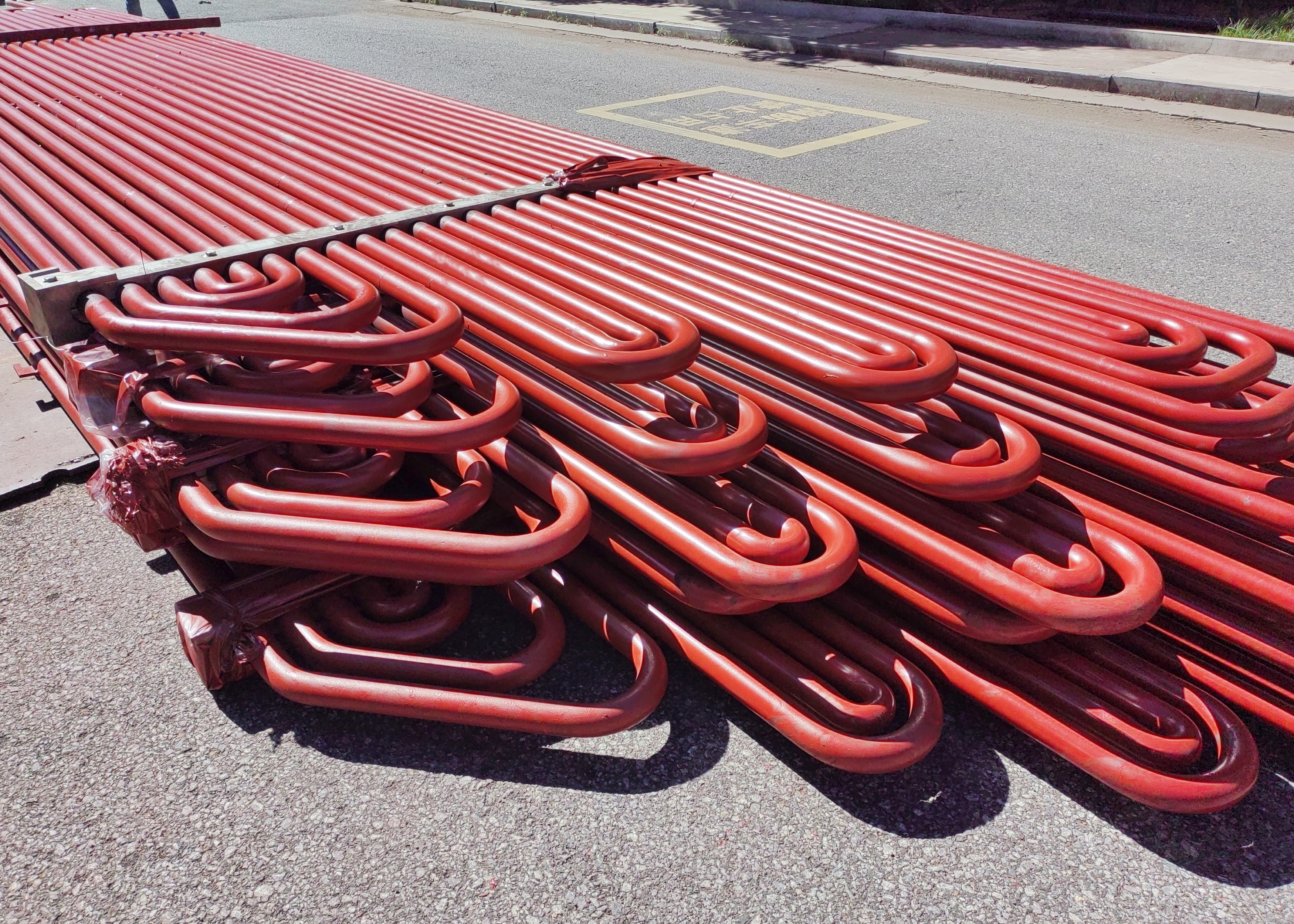

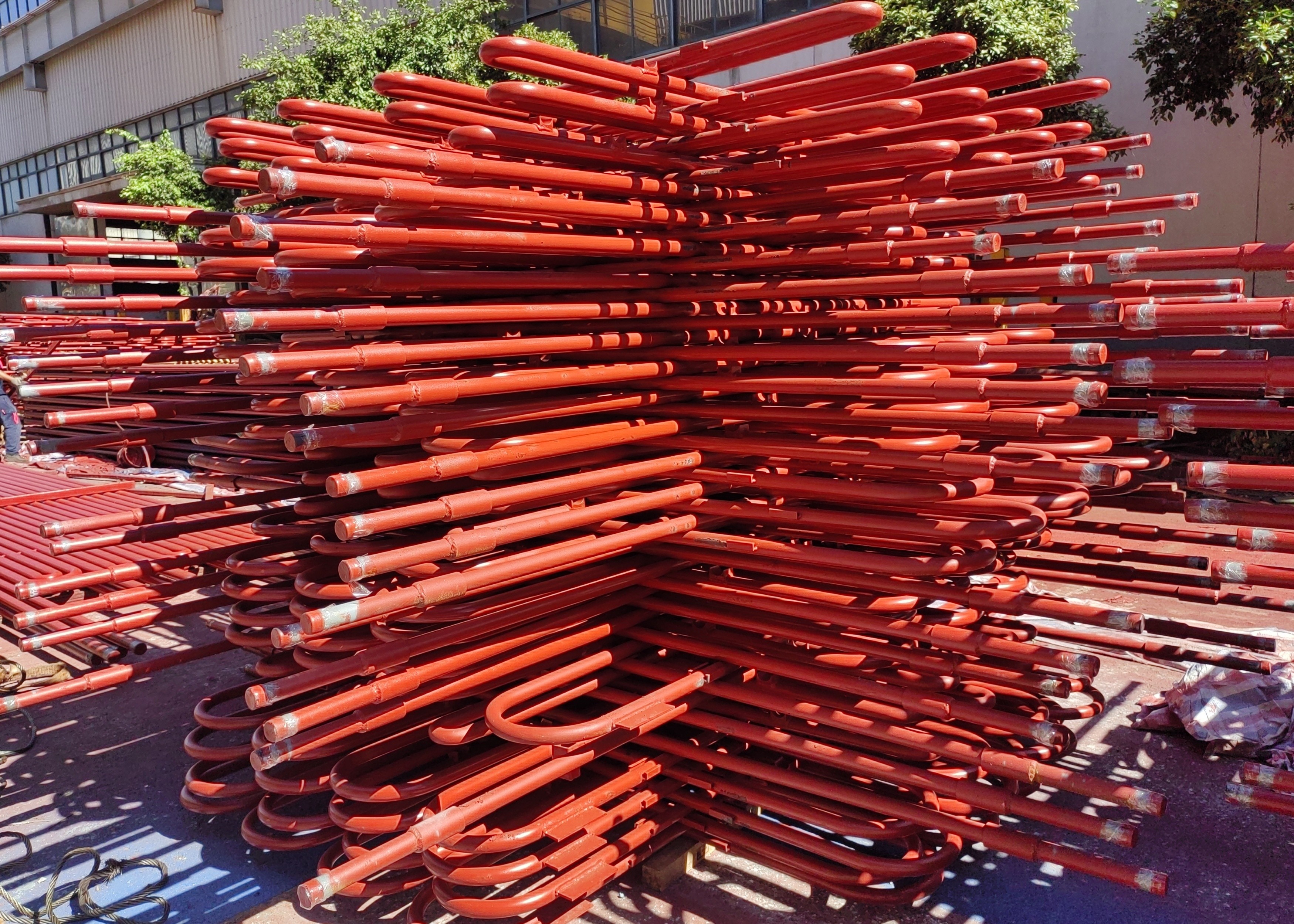

The structure of the serpentine tube screen, according to the device method in the boiler, is roughly divided into two types: vertical suspension type and horizontal suspension type. The vertical suspended serpentine pipe screen is generally a single-layer structure, mainly used in the high temperature section of the superheater and the reheater, and the end of the pipe screen is directly connected with the pipe joint of the header, which is hung and placed in the longitudinal direction of the header, and penetrates the roof of the furnace, and is sealed with it through the accessories on the pipe screen; Most of the horizontal suspended serpentine pipe screens are double-layer structures, and the middle is fixed and hung with water-cooled hanging pipes, which are generally used in the low-temperature section of the superheater and reheater and the economizer serpentine tube.
Technical Parameters
| Product Name | Steam Boiler Superheater Coils |
| Tube Material | SA192 |
| Coil Type | Serpentine Coils |
| Tube Diameter | 10-50 mm |
| Tube Thickness | Customized |
| Coil Length | Customized |
| Heat Transfer Area | Customized |
| Pressure Range | Customized |
| Temperature Range | Up to 1000°C |
| Application | Boiler |
| Warranty | 1 Year |
Advantages
Increased Turbine Lifespan: Superheated steam, being completely dry, reduces the risk of damage to turbine blades caused by moisture, increasing the lifespan of your turbines.
Optimal Material Selection: Built from high-quality materials capable of withstanding high temperatures and pressures, our superheater guarantees durability and long-term performance.
Ease of Maintenance: Our superheater's design allows for easy inspection and maintenance, reducing downtime and maintenance costs.
Application
Our custom superheater coil is designed specifically for use in boilers and can be used to replace existing superheater coils in existing boilers, or designed and manufactured to fit into new boilers. Our superheater coil is designed to provide superior heat transfer performance and maximum durability in high-pressure and industrial applications.
| Description | Boiler superheater |
| Material | Alloy steel, Carbon steel etc. |
| Material Standard | ASTM, EN or ISO etc. |
| Structure Type | Tube Coil |
| Dimension | Customized |
| Supply Ability | 500 ton per month |
| Manufacturing Process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Bending tube→Assembly→Inspection →RT→Heat treatment (annealing)→Hydraulic pressure test→Painting→ Packaging |
| Thermal Efficiency | Around 95% |
Packing and Shipping
Product Packaging:
- The superheater coils will be securely packed in wooden crates to ensure safe transportation.
- The crates will be labeled with the product name, quantity, and any other necessary details.
- We take great care in packaging our products to minimize any potential damage during shipping.
Shipping:
- We offer worldwide shipping for our superheater coils.
- The shipping method and carrier will be determined based on the customer's preference and location.
- Shipping costs will be calculated and included in the final invoice.
- We strive to provide timely and efficient shipping to our customers.
FAQ
Q1: What is a Superheater Coil?
A1: Superheater Coil is a heating element used to heat the water vapor in a boiler system and increase the temperature of the steam produced by the boiler, used in various industries and provided by reliable manufacturers in China.
Q2: Where is Superheater Coil from?
A2: Superheater Coil is manufactured in China with reliable quality.
Q3: What industries use Superheater Coil?
A3: Superheater Coil is widely used in industrial applications such as food production, pharmaceuticals, petrochemicals, power plants, and other industries that require high-temperature steam.
Q4: What materials are used for Superheater Coil?
A4: Superheater Coil is made of high-grade alloy steel and stainless steel, ensuring a long service life and reliable performance.
Q5: What is the advantage of Superheater Coil?
A5: Superheater Coil is corrosion-resistant, has high heat transfer efficiency, and is easy to install and maintain.
