Studded Carbon Steel Furnace Boiler Water Wall Panel ASME Standard
Product Details
| Installation Method: | Welding | Function: | Heat Transfer |
|---|---|---|---|
| Customization: | Available | Application: | Boiler |
| Surface Treatment: | Painting | Durability: | Long-lasting |
| Material: | Cabon Steel/Stainless Steel/Alloy Steel | Corrosion Resistance: | Excellent |
| Highlight |
Studded Boiler Water Wall Panel,Furnace Boiler Water Wall Panel,Studded furnace water wall |
||
Product Description
ASME Carbon Steel Carbon Steel Boiler Water Wall Panels With Long-Lasting Durability
Product Description

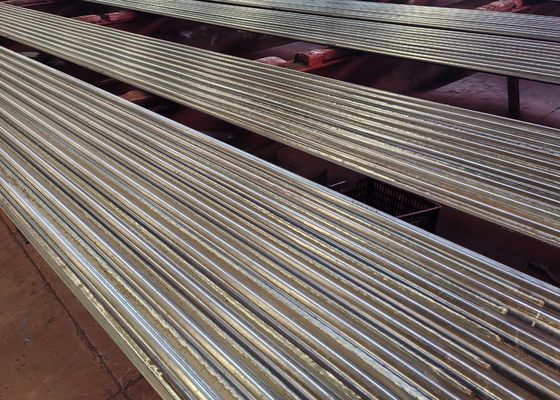

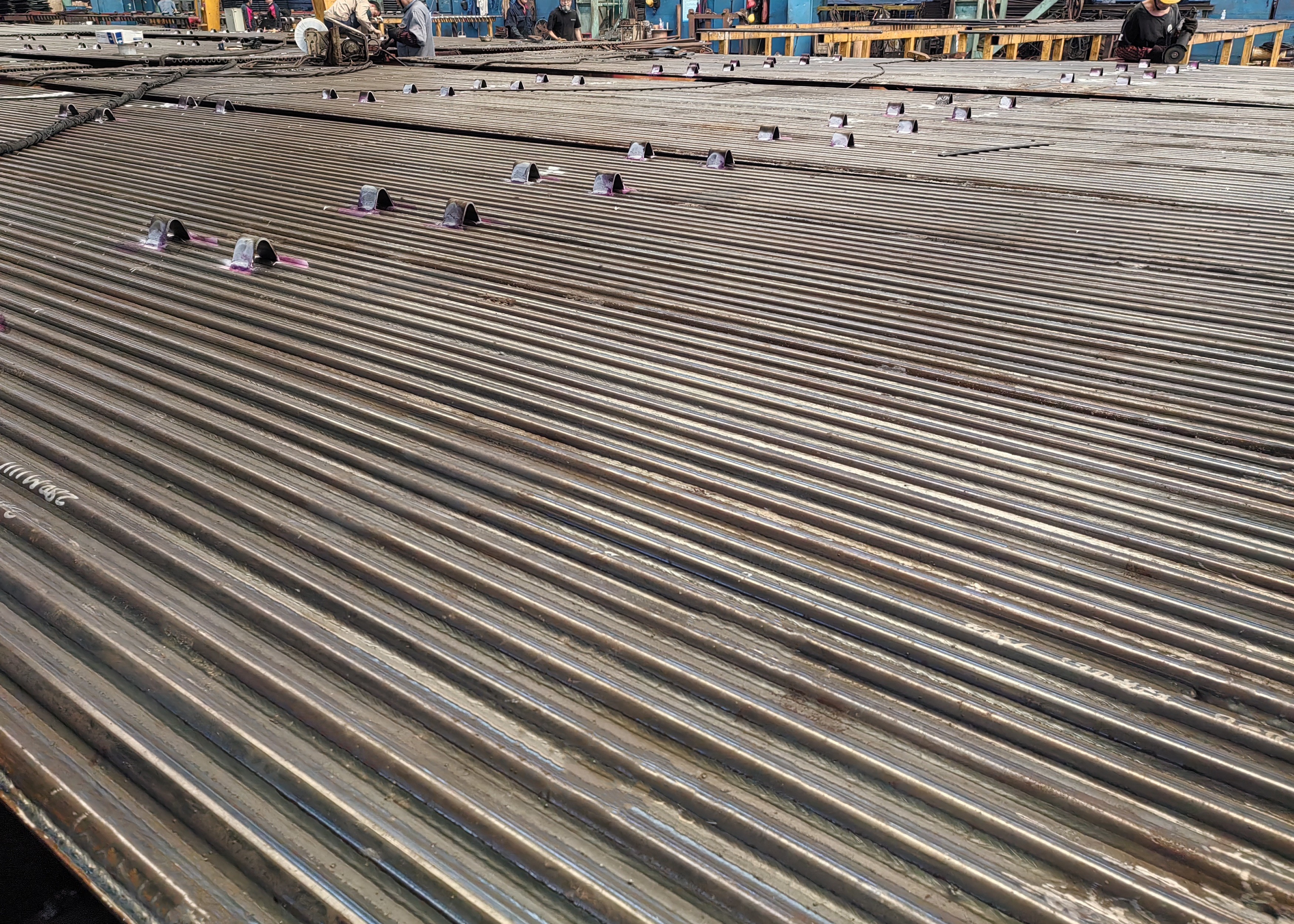

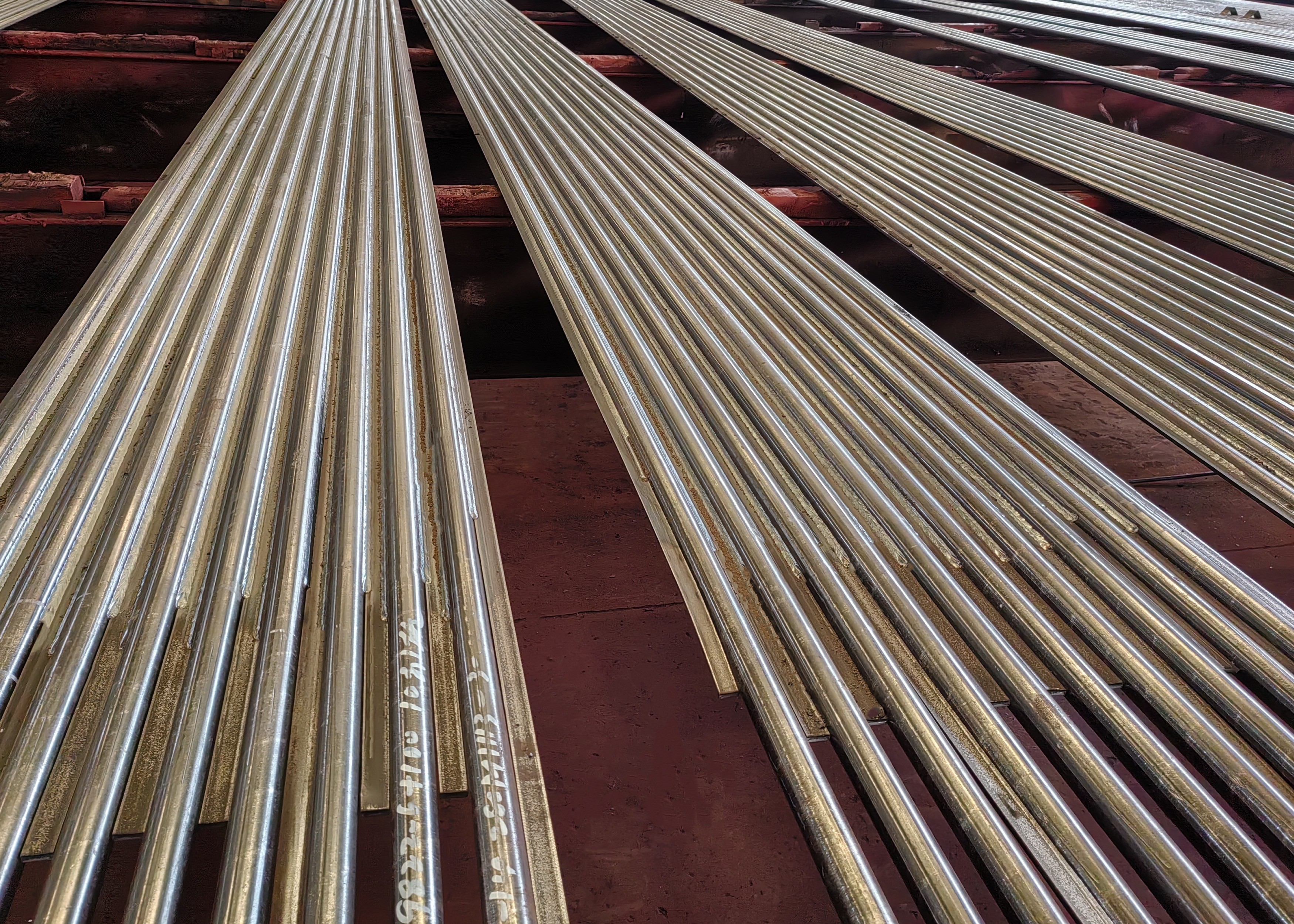

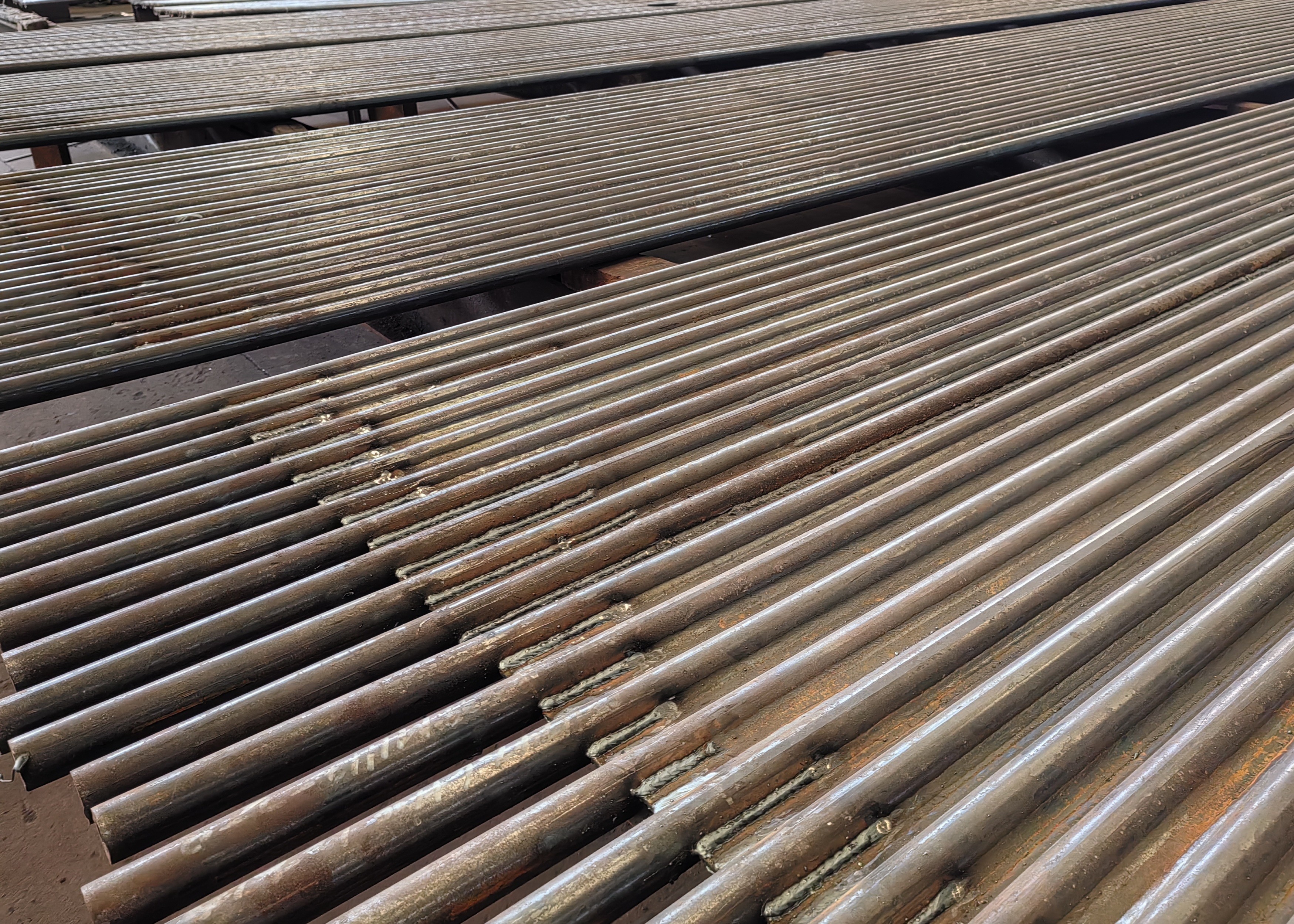

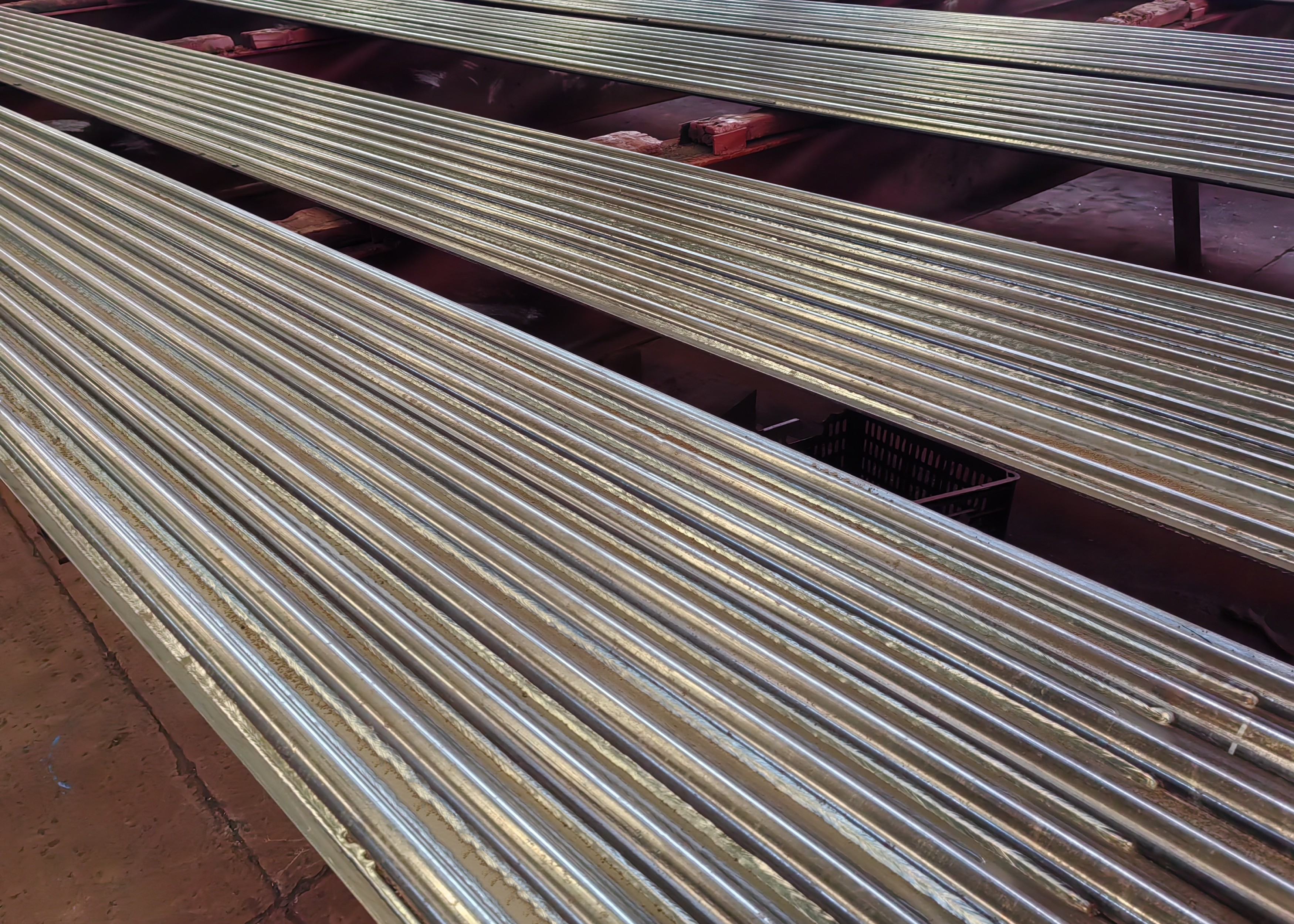

The boiler membrane wall, also known as membrane water wall, refers to the furnace wall of the boiler that is welded together with tubes and flat steel. The water wall of the large boiler is basically a membrane wall, which has the advantages of simplicity, steel saving, good thermal insulation and good air tightness. The membrane water wall has the most thorough protection effect on the furnace wall, so the furnace wall only needs to use thermal insulation materials, instead of refractory materials, so that the thickness and weight of the furnace wall are greatly reduced, the furnace wall structure is simplified, and the total weight of the boiler is reduced.
classification
According to the structural type, there are three main types: plain tube type, membrane type and squeaked tube type.
The plain tube water wall is composed of a whole row of seamless steel pipes, and their structure is the simplest; the membrane water wall weld many rolled water-cooled fin tubes together with spot welding, so that they become a sealed combined heating surface, which can not only improve the air tightness of the furnace, reduce air leakage, but also better protect the furnace wall, reduce the weight of the furnace wall, simplify the structure; the water wall of the spur tube is to weld many pins with a length of 20~25mm and a diameter of 6~12mm on the water-cooled wall tube, and then apply chrome ore refractory plastic in order to reduce the heat absorption of this part of the water wall and increase the temperature of the combustion zone, it is suitable for occasions where fuel ignition is particularly difficult or some liquid slag discharge furnaces.
According to the layout part, there are two kinds of attached wall type and partition wall type (i.e., double-sided heating) water cooling wall.
The former is mostly partially embedded in the inner wall of the furnace wall and absorbs heat on one side, while the latter is mostly installed in the middle of the furnace chamber of a large boiler, separating the whole furnace into two independent parts that are heated on both sides.
Functions
|
|
FAQ
Here are the frequently asked questions and answers about SANCO Boiler Menbrane Wall:
Q: What is SANCO Boiler Water Wall Panel?
A: SANCO Boiler Water Wall Panel is a type of boiler wall made of high-quality steel tubes and welded with fins to improve heat transfer efficiency.
Q: Where is SANCO Boiler Water Wall Panel made?
A: SANCO Boiler Water Wall Panel is made in China.
Q: What certifications does SANCO Boiler Water Wall Panel have?
A: SANCO Boiler Water Wall Panel is certified by ISO, ASME, and EN.
Q: What is the minimum order quantity for SANCO Boiler Water Wall Panel?
A: The minimum order quantity for SANCO Boiler Water Wall Panel is 3 tons.
Q: What are the payment terms for SANCO Boiler Water Wall Panel?
A: The payment terms for SANCO Boiler Water Wall Panel are negotiated.
Q: What is the supply ability of SANCO Boiler Water Wall Panel?
A: The supply ability of SANCO Boiler Water Wall Panel is 1500 ton/month.
Q: What is the price of SANCO Boiler Water Wall Panel?
A: The price of SANCO Boiler Water Wall Panel is negotiated.
Q: What are the packaging details for SANCO Boiler Water Wall Panel?
A: The packaging details for SANCO Boiler Water Wall Panel are customized.
Q: What is the delivery time for SANCO Boiler Water Wall Panel?
A: The delivery time for SANCO Boiler Water Wall Panell is 30 days.
