SA210C Heat Exchanger Boiler Economizer Coils Power Plant ASME Standard
Product Details
| Outlet Temperature: | 50-100°C | Model: | Boiler Part |
|---|---|---|---|
| Dimension: | Customization | Usage: | Power Plant |
| Heat Transfer Area: | 10-1000m2 | Fuels Of Boiler: | Coal, Biomass, Gas |
| Operation: | Natural Circulation/Force Cirulation | Output: | Steam / Hot Water |
| Thermal Efficiency: | Above 80% | Condition: | New |
| Painting: | Painted | Surface Treatment: | Painted/shot Blasted |
| Range Of Applications: | Power Station, Life, Industrial | Principle: | Saving Heat |
| Dimension Of Tube: | 50.8*4.57mm | ||
| Highlight |
Boiler Economizer SA210C Coils,Power Plant Boiler Economizer,heat exchanger economizer Coils |
||
Product Description
Boiler Economizer Coils Made Of SA210C With Handcuffs in ASME Standard
Product Introduction
Economizer is a device installed at the lower part of the flue at the tail of the boiler to recover the waste heat of the exhaust gas. It heats the boiler feed water into a heating surface of saturated water under the pressure of the drum. Because it absorbs the heat of high-temperature flue gas, reduces the exhaust gas temperature, saves energy and improves efficiency, it is called an economizer.
Parameters of Boiler Economizer
| Description | Boiler economizer |
| Material of Base Tube | SA210C or others customized |
| Material standard | ASTM |
| Dimension | Customization |
| Weight |
Min: 10 ton Max.:1000 ton |

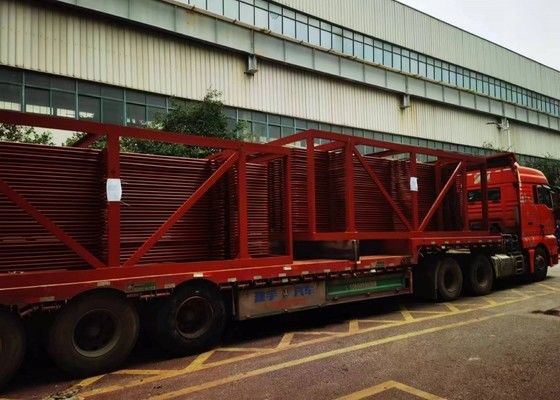

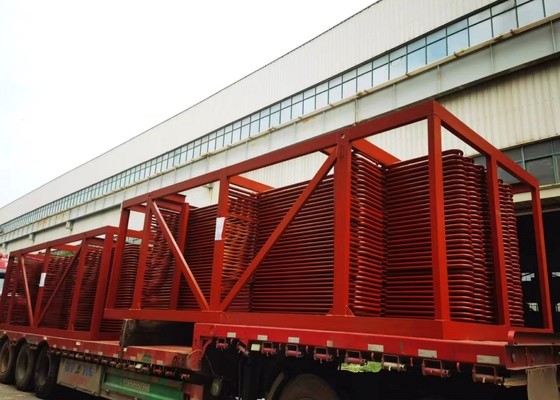

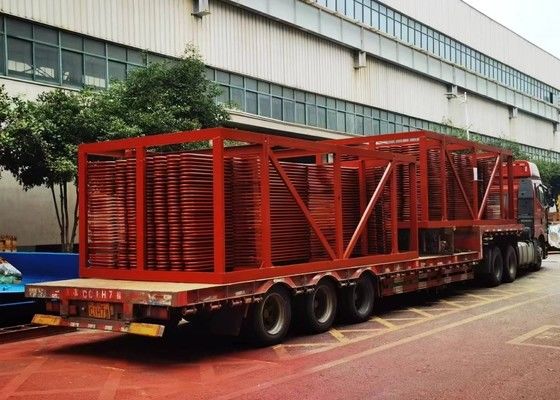

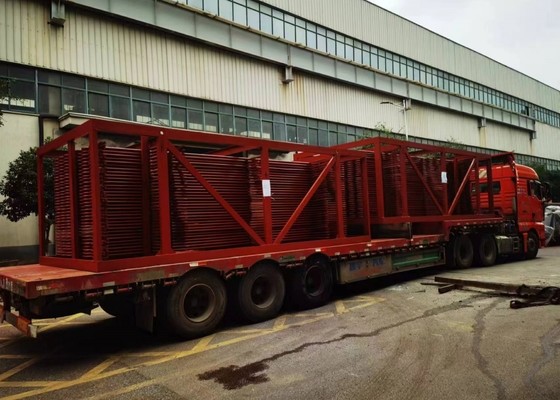

| Process | Material→Tube Bending and Bevelling → Butt Welding→ Shield Manufacturing → Assembly 1 →RT→Handcuffs and Shields Welding→Assembly 2 →Hydro Test →Cleaning and Painting →Packing into Frames |
Quality Control
1. Impact test and Strength calculation report with applied materials information.
2. 100%NDT(non-destructive inspection) report of steel plate, tube and electrode
3. X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler
4. Hydraulic test report: ensure the standard working pressure and safety
Company Profile
founded in 1985, is an enterprise specializing in manufacturing power station boilers, industrial boilers, HRSGs, waste incineration boilers, biomass boilers and related heating surface components in China. Hua Dong Boiler provides clients with integrated services from design, manufacturing to installation and maintenance.
