ASME 25 Ton Carbon Steel Steam Super Heater Coil For Sugar Mill Boiler
Product Details
| Tube Wall Thickness: | Customized | Surface Treatment: | Painted |
|---|---|---|---|
| Material: | Carbon Steel | Coil Shape: | Round/Square |
| Tube Material: | Alloy Steel | Application: | Boiler |
| Pressure: | Up To 100 Bar | Tube Diameter: | Customized |
| Size: | Customized | Heat Transfer Area: | Customized |
| Coil Layout: | Single/Double Row | Working Temperature: | Up To 1000°C |
| Welding Method: | Automatic/Manual | Coil Type: | Horizontal/Vertical |
| Highlight |
ASME super heater coil,25 Ton super heater coil,Carbon Steel steam superheater |
||
Product Description

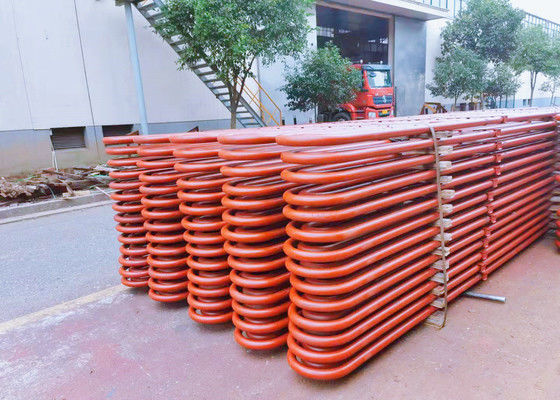

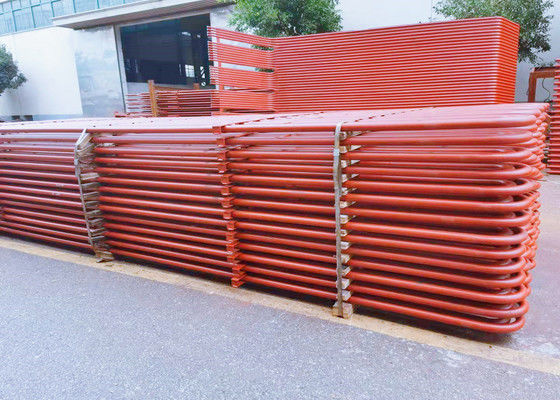

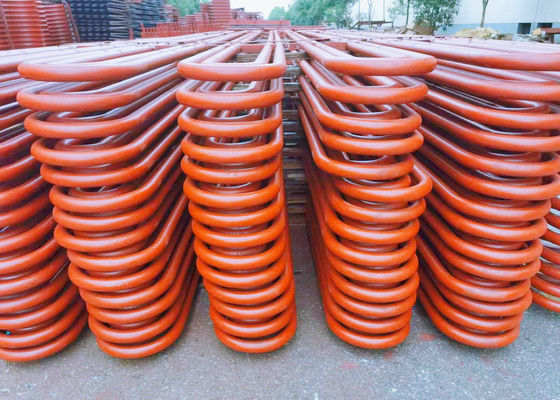

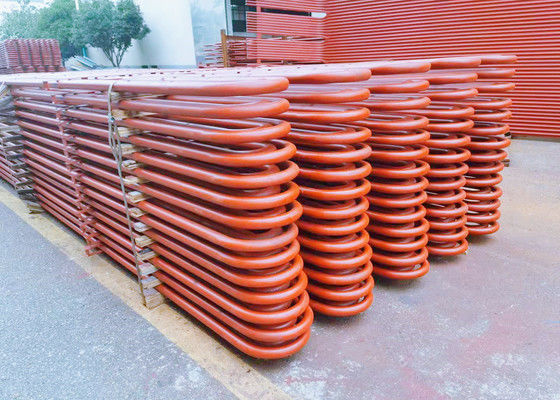

25 tons Carbon Steel Made Boiler Superheater Coil in ASME Standard for Sugar Mill Boiler Maintenance
Description
A superheater is a component that heats saturated steam in an industrial boiler, turning it into superheated steam. Our superheater guarantees that the superheated steam temperature will fluctuate to within an allowable range (normally varies from 540℃ to 550℃) when the boiler is over loaded.
Superheaters and reheaters are important parts for the heating surfaces, used to increase steam temperature, aiming to improve steam enthalpy and further to increase the thermal circulation efficiency for power station.
Superheaters work to heat surnatured steam to superheated steam with a certain tempetature. When boiler loads or other working conditions change, it is necessary to make sure superheated steam temperature to be normal, and within allowable range of temperature variation.
Differences
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type |
1. Proper drainage 2. Good structural rigidity. |
1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
