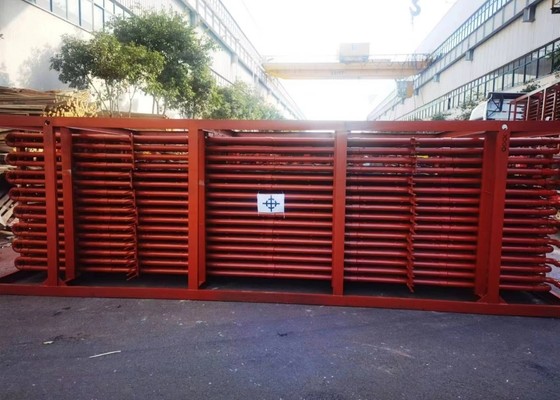

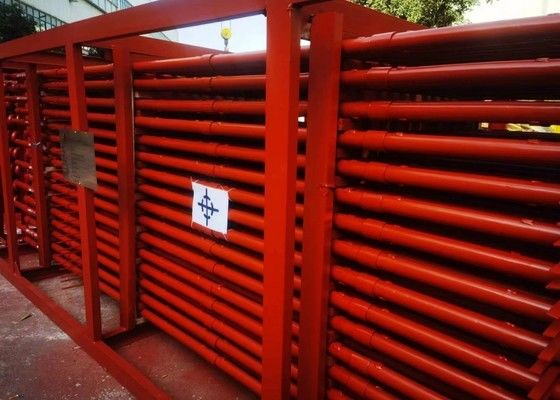

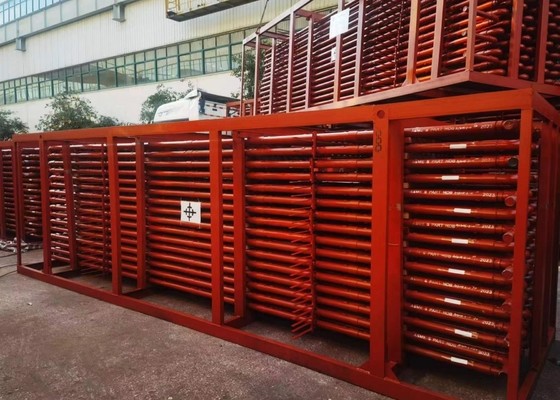

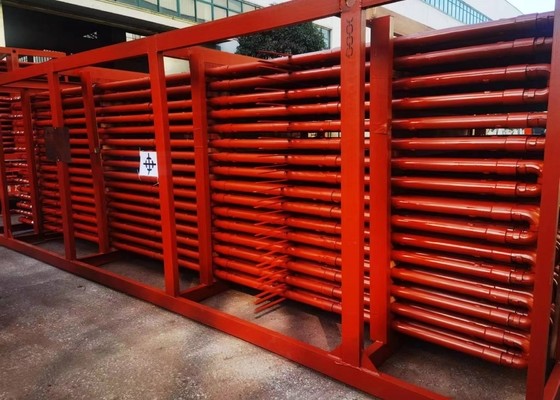

Boiler Economiser Coil tubes Banks SA210A1 For Waste Incinerator
Product Details
| Size: | Customized | Export: | Indonesia |
|---|---|---|---|
| Keyword: | Boiler Economizer Banks | Porduct Name: | Boiler Economizer |
| Style: | Horizontal / Vertical | Dimension: | Customization |
| Efficiency: | Up To 95% | Inlet/Outlet Connection: | Flanged Or Threaded |
| Range Of Applications: | Industrial/Power Station | Color: | Customer's Requirement,as You Need |
| Function: | Steam Boiler | Port: | Shanghai |
| Surface Treatment: | Painted Or Galvanized | Output: | Hot Water |
| Cleaning Method: | Manual Or Automatic | ||
| Highlight |
Boiler economiser coil,Waste Incinerator economiser coil,Boiler economiser tubes |
||
Product Description
Boiler Economizer Banks Made of SA210A1 With Shields For Waste Incinerator
Product Introdution
Economizer is a device installed at the lower part of the flue at the tail of the boiler to recover the waste heat of the exhaust gas. It heats the boiler feed water into a heating surface of saturated water under the pressure of the drum. Because it absorbs the heat of high-temperature flue gas, reduces the exhaust gas temperature, saves energy and improves efficiency, it is called an economizer.
Boiler economizer is kind of heat exchanger to heat the feed water using the flue gas heat. The flue gas coming from the tube outside is up and down cross-flow scrubbing the tube bundle, passing the heat to the tube wall. The water is flowing from bottom to top, and absorts the heat from the tube wall, and its temperature is getting high. This way not only can countercurrent heat transfer to save metal consumption, but also is good for water/steam to flow and exhaust as well as decreasing corrusion. One more, this way works well for dust cleaning.
Parameters of Boiler Economizer
| Description | Boiler economizer |
| Material | SA210A1 and SA240-309S |
| Material standard | ASTM, EN or ISO etc. |
| Dimension | Customization |
| Weight |
Min: 10 ton Max.:1000 ton |
| Process | Material→Tube Bending and Bevelling → Butt Welding→ Shield Manufacturing → Assembly 1 →RT→Handcuffs and Shields Welding→Assembly 2 →Hydro Test →Cleaning and Painting →Packing into Frames |
Working Process of Boiler Economizer
There are three stages from the feed water in the boiler heated into superheated steam:feed water preheating, evaporation, and superheating. The three stages are finished on three different heating surfaces. The boiler steam and water circuit are composed of the three different heating surfaces as well as their connecting pipes. Boiler economizers are one of them, and it is right the equipment to preheat the feed water. Thus, it is the heating surface with the lowest temperature for boiler working fluid in the boiler steam and water circuit. The working fluid passing through this equipment is monophasic water(non-boiling economizer).
Company Profile
The products of our company have been widely used in major power plants of various provinces and cities in China, bringing stable and significant economic and social benefits to cooperated power plants. At the same time, we attach great importance to product development and strive to improve product quality. Through the cooperation with a number of domestic and foreign companies, we constantly explore the international market.
