SA210A1 Boiler Economizer Economiser Tubes For Waste Incinerator
Product Details
| Porduct Name: | Boiler Economizer Bank | Standard: | ASME, EN, GB |
|---|---|---|---|
| Fuels Of Boiler: | Coal, Biomass, Gas | Material: | SA210A1 |
| Highlight |
SA210A1 Boiler Economizer,Waste Incinerator Boiler Economizer,Waste Incinerator economiser tubes |
||
Product Description

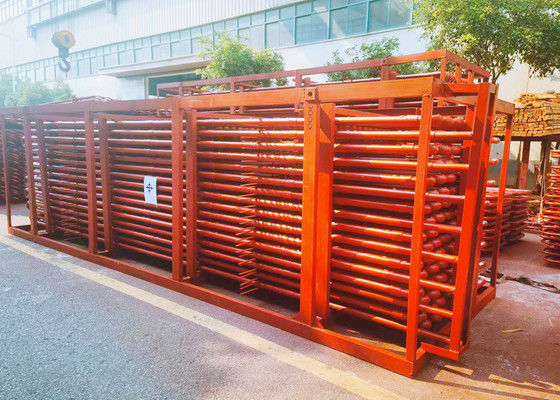

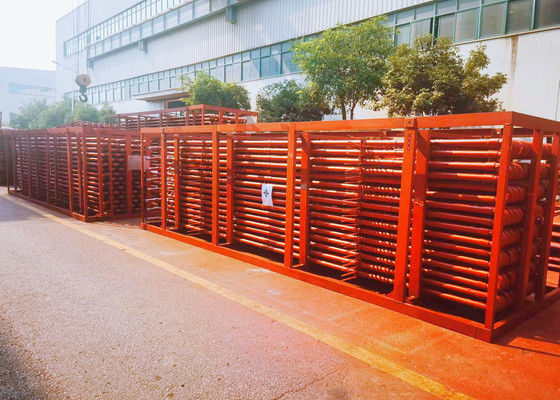

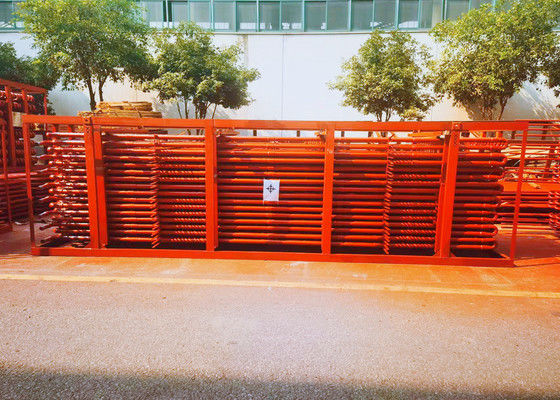

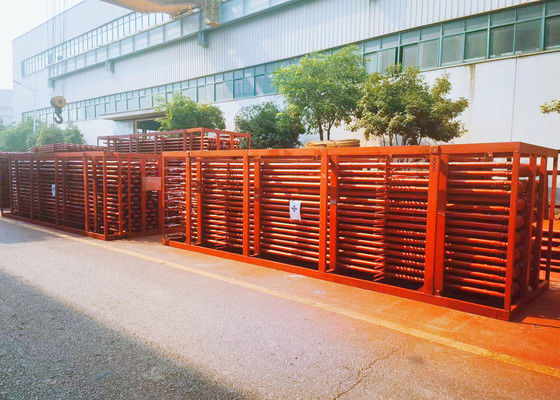

ASME Standard Boiler Economizer Made of SA210A1 Tubes with 210° Shields for Waste Incinerator
Product Introdution
Economizer tube is an important part of boiler, which is mainly made of seamless steel tube by bending or folding.
Cast iron economizer consists of a series of horizontal cast iron pipes connected to each other with cast iron elbows and flanged ends.
Parameters of Boiler Economizer
| Description | Boiler economizer |
| Material | Alloy steel, Carbon steel, SA210C ,SA213T22, etc. |
| Material standard | ASTM, EN or ISO etc. |
| Dimension | Customization |
| Weight |
Min: 10 ton Max.:1000 ton |
| Process | Material→Tube Bending and Bevelling → Butt Welding→ Shield Manufacturing → Assembly 1 →RT→Handcuffs and Shields Welding→Assembly 2 →Hydro Test →Cleaning and Painting →Packing into Frames |
Working Process of Boiler Economizer
There are three stages from the feed water in the boiler heated into superheated steam:feed water preheating, evaporation, and superheating. The three stages are finished on three different heating surfaces. The boiler steam and water circuit are composed of the three different heating surfaces as well as their connecting pipes. Boiler economizers are one of them, and it is right the equipment to preheat the feed water. Thus, it is the heating surface with the lowest temperature for boiler working fluid in the boiler steam and water circuit. The working fluid passing through this equipment is monophasic water(non-boiling economizer).
Company Profile
The products of our company have been widely used in major power plants of various provinces and cities in China, bringing stable and significant economic and social benefits to cooperated power plants. At the same time, we attach great importance to product development and strive to improve product quality. Through the cooperation with a number of domestic and foreign companies, we constantly explore the international market.
Product Highlights
ASME Standard Boiler Economizer Made of SA210A1 Tubes with 210° Shields for Waste Incinerator Product Introdution Economizer tube is an important part of boiler, which is mainly made of seamless steel tube by bending or folding. Cast iron economizer consists of a series of horizontal cast iron pipes ...
