Waster Incinerator Boiler Pendants Super Heater In Boiler Economiser Evaporator
Product Details
| Keyword: | Boiler Superheater Tube | Specification: | Seamless Tube |
|---|---|---|---|
| Color: | Red / Blue / Grey | Manufacturing Level: | A |
| Coler: | Red/blue/black | Quality Control: | Solid / Enhanced Solution |
| Techniique: | Pipe Bending | Tube Length: | Up To 20 M |
| Warranty: | 1 Year | Installation: | Easy Installation |
| Temperature: | High Temperature | Dimension: | Customized |
| Materials: | Carbon Steel / Stainless Steel | Materaial: | Carbon Steel/Stainless Steel |
| Ovality: | Less Than 15% | ||
| Highlight |
Waster Incinerator super heater in boiler,evaporator super heater in boiler,Waster Incinerator economiser evaporator superheater |
||
Product Description

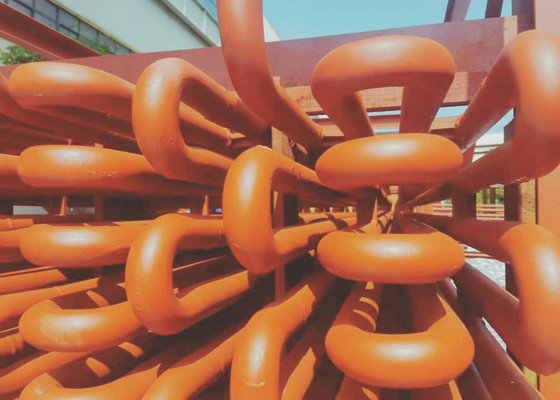

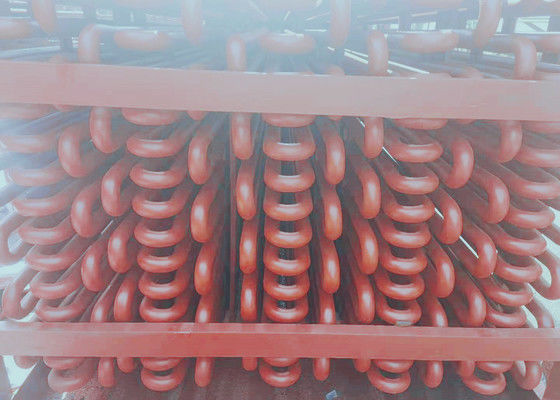

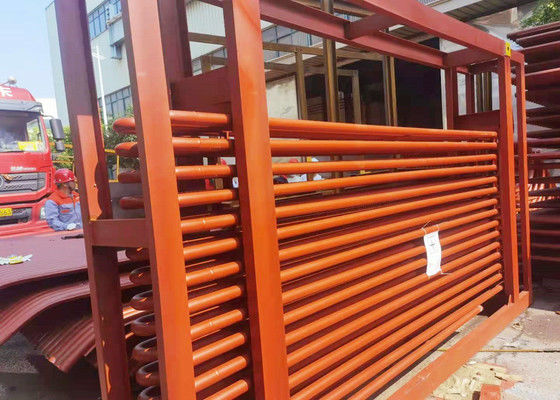

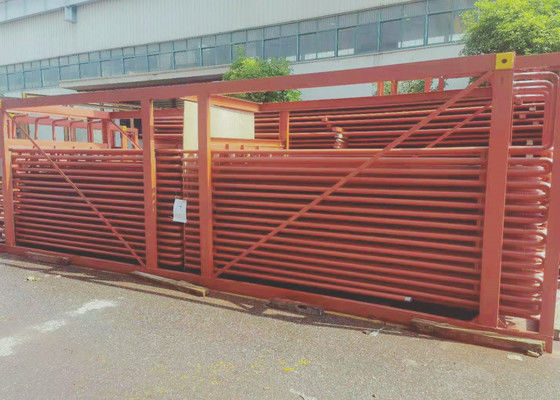

Carbon Steel Boiler Superheater Pendants in ASME for Waster Incinerator and Other Boilers
Product Description of Superheater and Reheater
Superheater is a part of a boiler that heats the steam from the saturation temperature to the overheating temperature. It is also called a steam superheater.Superheater can be divided into convective type, radial type and semi-radial type according to heat transfer mode;According to the characteristics of the structure, it can be divided into serpentine pipe type, screen type, wall type and wall type.They are made up of parallel pipes and inlet and outlet manifold.
Details of Superheater and Reheater
• Superheating raises overall efficiency as well as avoids too much condensation in last stages of turbine which avoids blade erosion.
• The heat of combustion gases from furnace is utilised for removal of moisture from steam and to superheat the steam.
• Super-heaters ususlly have several tube circuits in parallel with one or more return bends,connected between headers.
• Heat from the hot gases to the vapour in the surperheater is transferred at high temperatures.
• Therefore promary section of superheater is arranged in counterflow and secondary section in parallel flow to reduce the temp.stressing of the tube wall.
Differences of Superheater and Reheater
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type |
1. Proper drainage 2. Good structural rigidity. |
1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
Application of Superheater and Reheater
use for heating saturated steam, steam temperature could be up to 900 degree C.
Superheater Capacity Upgrades to Increase Power Generation
Certifications
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
