ASME SA210C Boiler Fin Tube H Type For Economizer Custom
Product Details
| Product Name: | Boiler H Finned Tubes | Fabrication Standard: | ASME |
|---|---|---|---|
| Tube Material: | SA210C | Fin Tube: | Q235B |
| Highlight |
SA210C Boiler Fin Tube,Economizer Boiler Fin Tube,ASME h type finned tubes |
||
Product Description

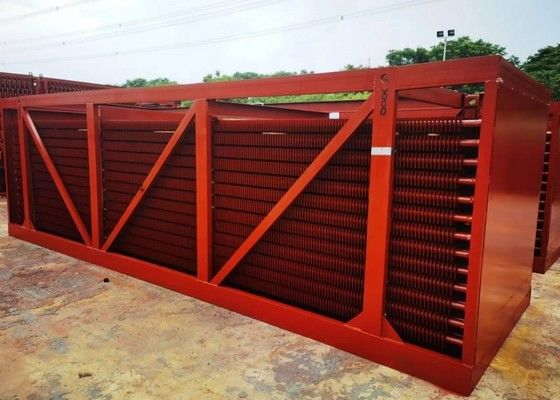

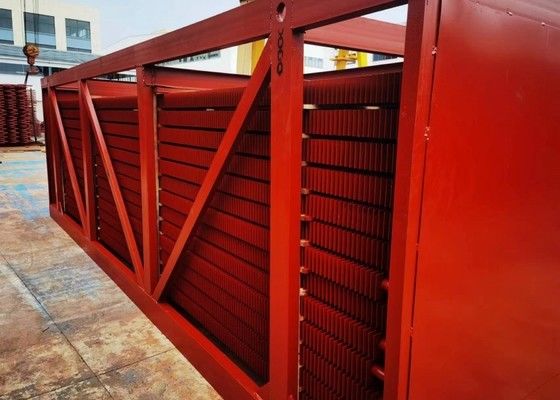

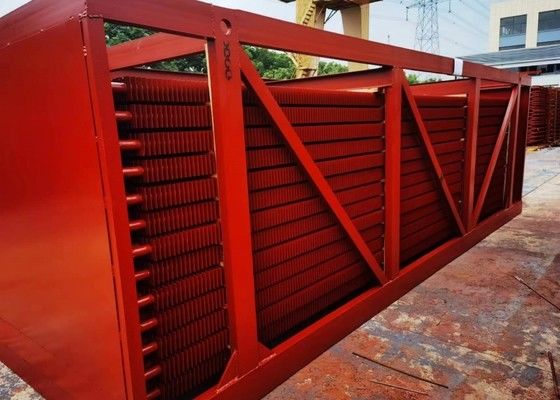

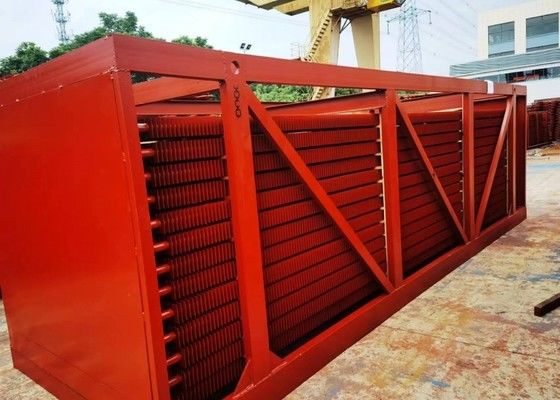

ASME/GB Standard Carbon Steel Made H Finned Tubes for Boiler Economizer Power Plant Application
Production Description
H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width. Integrated heat transfer capacity is related to fin efficiency, convective heat transfer coefficient and finned ratio. Pressure drop increases with the increase of fin height and fin width.
H fin tube is a kind of boiler parts, to have two steel circular symmetry to be welded on fluorescent tubes to form fins
positive shap much like letter "H", so called H-fin tube. H-economizer widely used in utility boilers, industrial boilers, marine
power, such as the tail of heat exchanger components.
H-economizer flash resistance welding processes used, the welding seam after the high rate of fusion, weld tensile strength, and has good thermal conductivity. H-economizer can also manufacture dual tube "double H" type fin tubes, its rigid structure, and can be applied to a longer tube row occasion.
Technical parameter
| Medium | air, flue gas, thermal oil, water, brine, refrigerant, etc. |
| Temperature | standard heat exchanger to 560 ° C by special materials can be higher |
| Pipe materials | carbon steel, stainless steel, alloy or special materials |
| Ribs materials | carbon steel, stainless steel, non-ferrous metal, alloy or special materials |
| Thermal insulation &Surface treatment | according to customers specification |
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
