High Frequency Resistance Welding Boiler Fin Tube Heat Recovery Steam Generator Hfrw
Product Details
| Fuel: | Coal/Gas/Oil-fired, Water Heat | Type: | High Frequency Welding |
|---|---|---|---|
| Range Of Applications: | Power Plant | Specification: | ASME Inspection |
| Inspection: | ASME Inspection | Dimension Of Tube: | 38.1*3.2 |
| Fuel Of Boiler: | Coal/Gas/Coal-fired/Water Heat | Keyword: | Keyword |
| Keywords: | Boiler Membrane Wall | Materials: | Carbon Steel / Stainless Steel |
| Usage: | Power Plant/CFB Boiler | ||
| Highlight |
Hfrw Steam Generator Boiler Fin Tube,Hfrw Boiler Fin Tube,High Frequency Resistance Boiler Fin Tube |
||
Product Description
High Frequency Resistance Welding Boiler Fin Tube Heat Recovery Steam Generator Hfrw
Product Description
1.Finned Tube Heat Exchangers consist of a shell and finned tubes assembly.
2.Fins are used to increase the effective surface area of heat exchanger tubing.
3.Finned tubes are used when the heat transfer coefficient on the outside of the tubes is appreciably lower than that on the inside;as in heat transfer from a liquid to a gas,vapor to a gas ,such as steam to air heat exchanger, thermic fluid to air heat exchanger, when an extended surface is needed on only one fluid side or when the operating pressure needs to be contained on one fluid side.
Technical parameter
| Medium | air, flue gas, thermal oil, water, brine, refrigerant, etc. |
| Temperature | standard heat exchanger to 560 ° C by special materials can be higher |
| Pipe materials | carbon steel, stainless steel, alloy or special materials |
| Ribs materials | carbon steel, stainless steel, non-ferrous metal, alloy or special materials |
| Thermal insulation &Surface treatment | according to customers specification |
Features
1. The equipment body can be designed into many modules to ensure the long term and stable running;
2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage
3. Improve the heat transfer efficiency
4. Structure arrangement: In line or staggered arrangement
Details
1.Our products can be modified according to our customers' needs and the situation.
2.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.

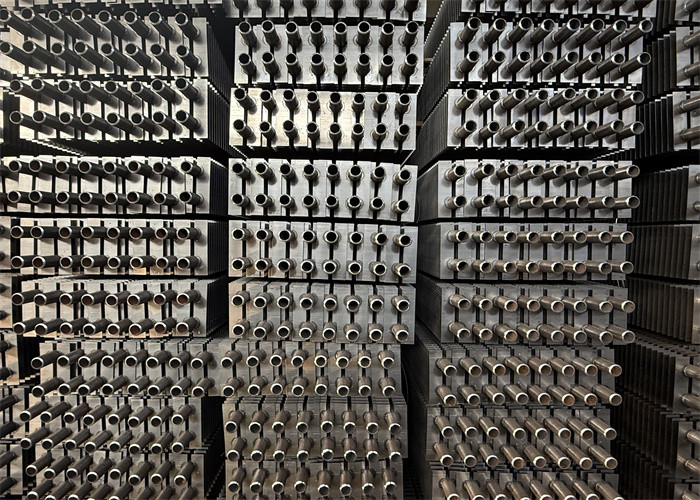

3.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
