Impact on Power Cycle Efficiency

Superheaters raise steam temp for more turbine work, upping efficiency. Reheaters reheat expanded steam for better low - pressure turbine expansion, enhancing cycle efficiency.

Product Description

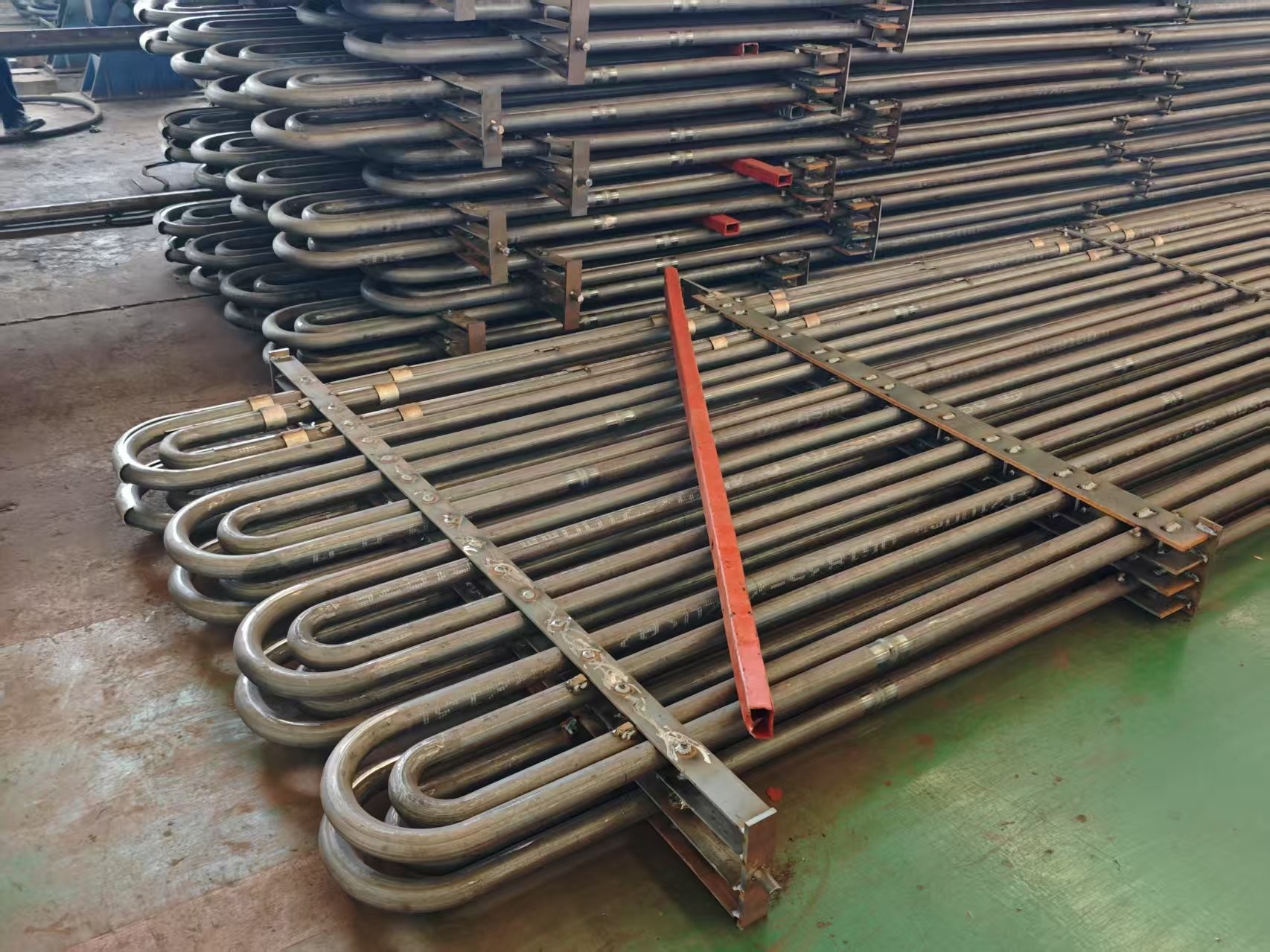

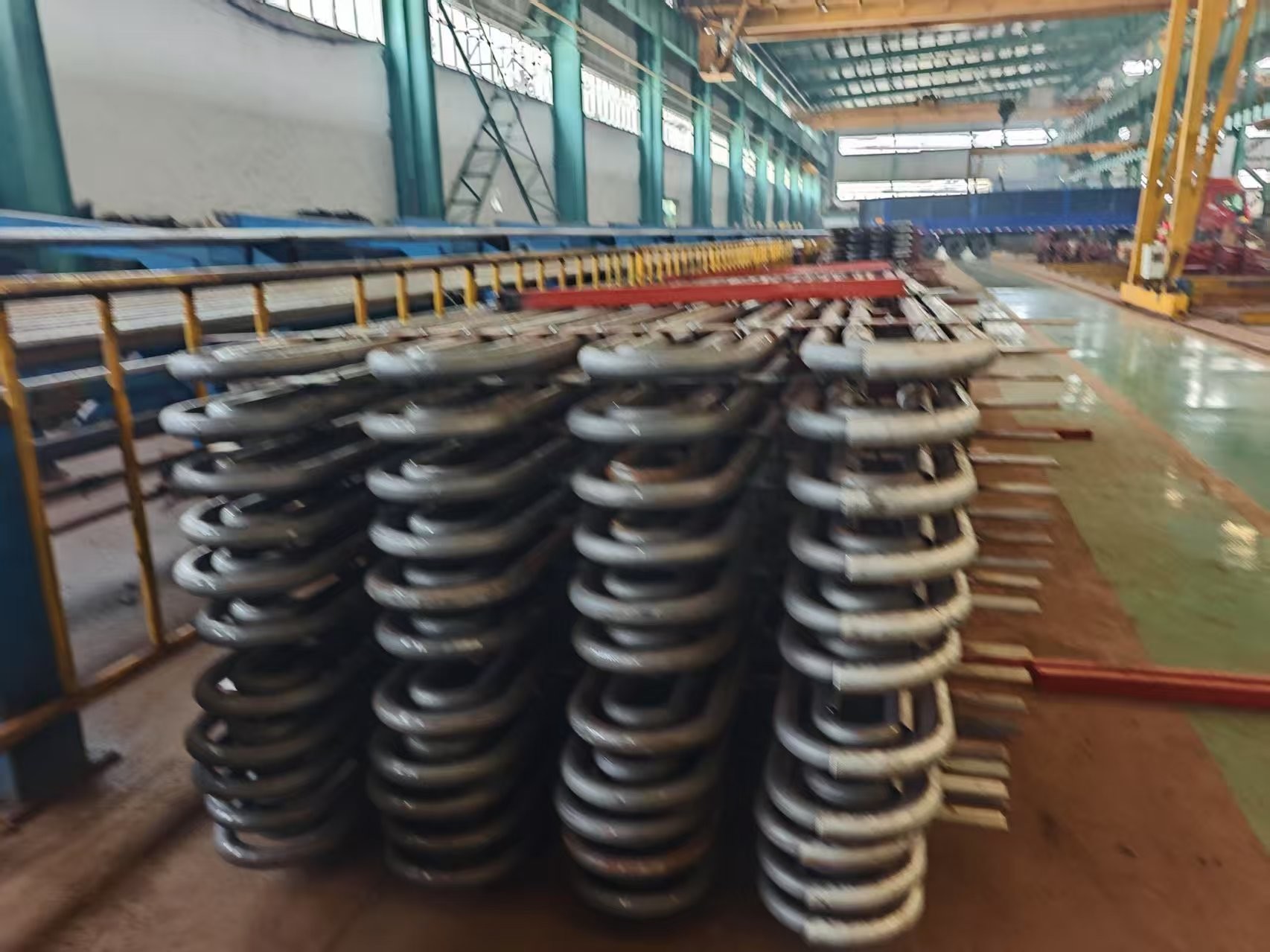

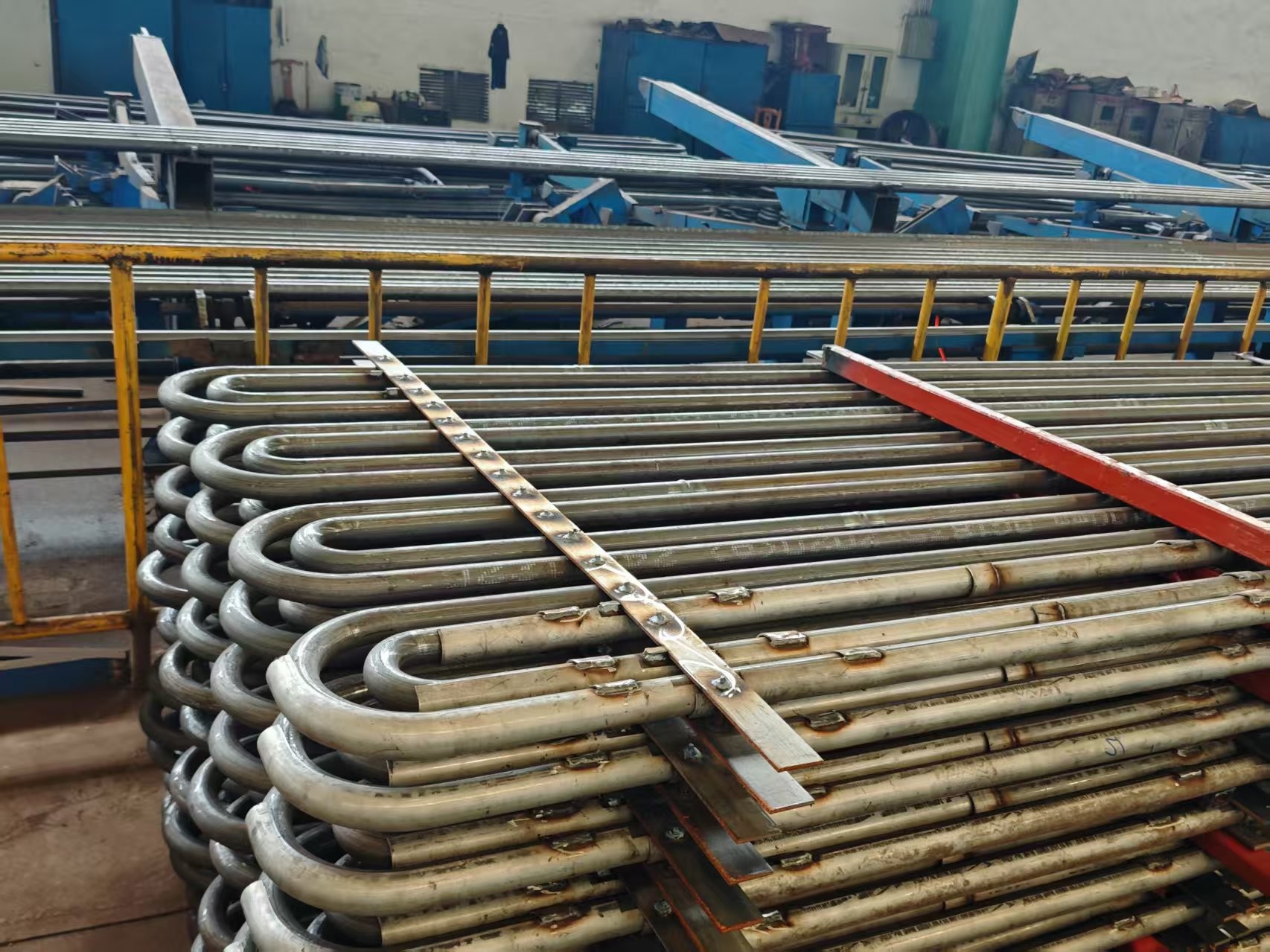

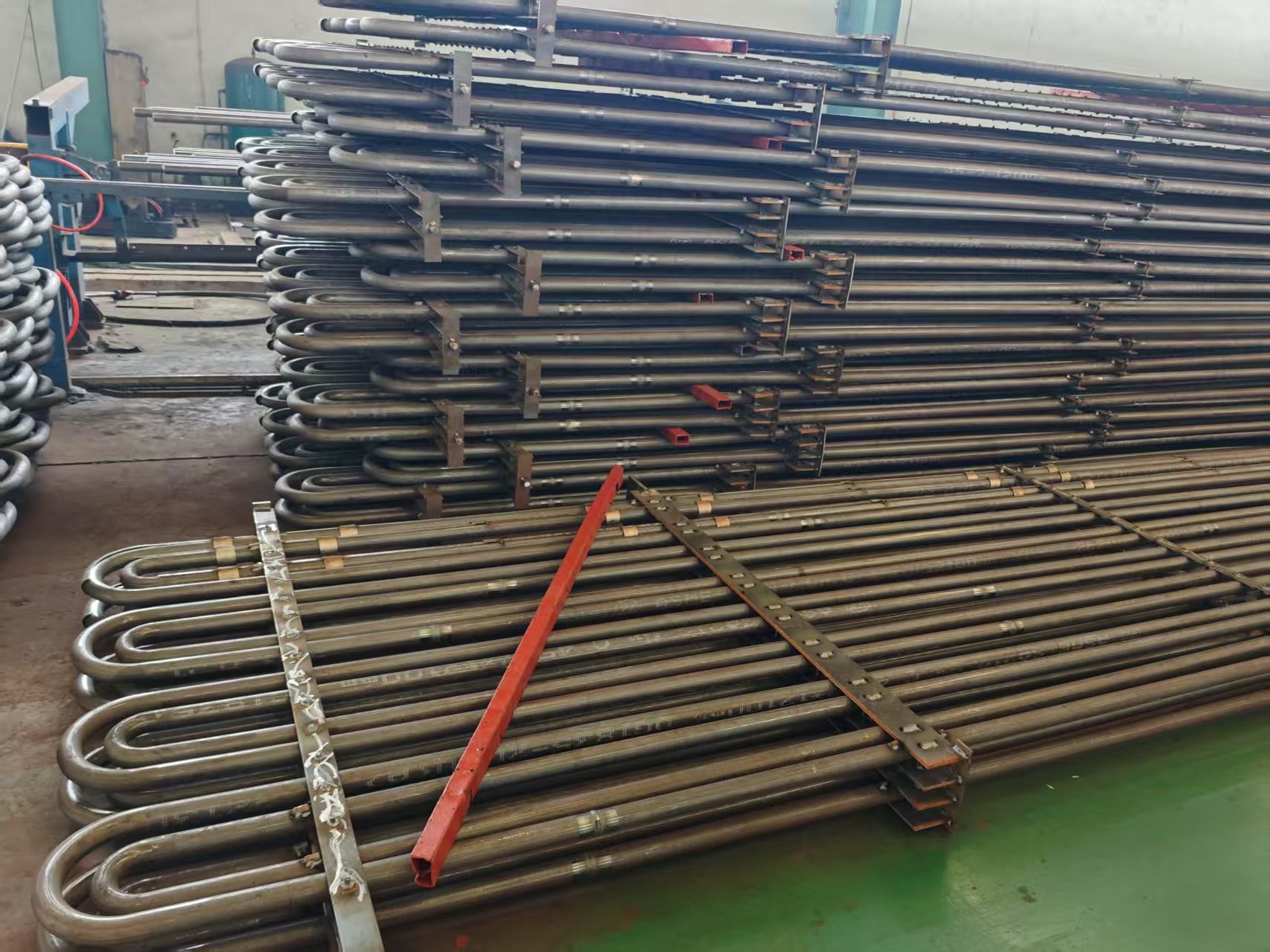

The boiler serpentine tube is a common type of boiler heat transfer components. The raw material of the boiler serpentine tube varies greatly in different temperature segments. For the superheaters and economizers in the low-temperature section, carbon steel, T1 or 15CrMo are generally used; For the superheater and reheater in the high-temperature section, 12Cr1MoV and imported steel SA-213T22 (referred to as T22), SA-213T91 (referred to as T91), SA-213TP304H (referred to as TP304H), SA213-TP347H (referred to as TP347H) and so on can be used.

Reheater is actually a kind of steam superheater which heats the low-pressure steam after work and reaches a certain temperature. The role of reheater further improves the thermal efficiency of the circulation in power plant, and makes the steam temperature of the last stage blade of steam turbine controlled within the allowable range.

Technical Parameters

Feature

• Product Name: Industrial Boiler Superheater Coils
• Surface Treatment: Painted
• Size: Customized
• Heat Transfer Area: Customized
• Application: Superheater Coils for Boiler
• Pressure Range: Customized

This product is specially designed for use in coal fired boilers. It is a durable and efficient solution for increasing the temperature and pressure of steam produced by the boiler. The industrial boiler superheater coils can be customized to meet the specific needs of your boiler system.

Application

Packing and Shipping

Product Packaging:

• The superheater coils will be securely packed in wooden crates to ensure safe transportation.
• The crates will be labeled with the product name, quantity, and any other necessary details.
• We take great care in packaging our products to minimize any potential damage during shipping.

Shipping:

• We offer worldwide shipping for our superheater coils.
• The shipping method and carrier will be determined based on the customer's preference and location.
• Shipping costs will be calculated and included in the final invoice.
• We strive to provide timely and efficient shipping to our customers.

FAQ

Q1: What is a Superheater Coil?
A1: Superheater Coil is a heating element used to heat the water vapor in a boiler system and increase the temperature of the steam produced by the boiler, used in various industries and provided by reliable manufacturers in China.

Q2: Where is Superheater Coil from?
A2: Superheater Coil is manufactured in China with reliable quality.

Q3: What industries use Superheater Coil?
A3: Superheater Coil is widely used in industrial applications such as food production, pharmaceuticals, petrochemicals, power plants, and other industries that require high-temperature steam.

Q4: What materials are used for Superheater Coil?
A4: Superheater Coil is made of high-grade alloy steel and stainless steel, ensuring a long service life and reliable performance.

Q5: What is the advantage of Superheater Coil?
A5: Superheater Coil is corrosion-resistant, has high heat transfer efficiency, and is easy to install and maintain.
