Power Station Boiler Solution Customized Carbon Steel Membrane Wall Panels
Product Details
| Application: | Boiler Walls | Pressure Range: | Up To 10MPa |
|---|---|---|---|
| Size: | Customized | Material: | Carbon Steel |
| Temperature Range: | Up To 600°C | Color: | Customized |
| Highlight |
Carbon Steel Membrane Wall panels,Membrane Wall Panels Boiler Solution,Power Station boiler membrane wall |
||
Product Description

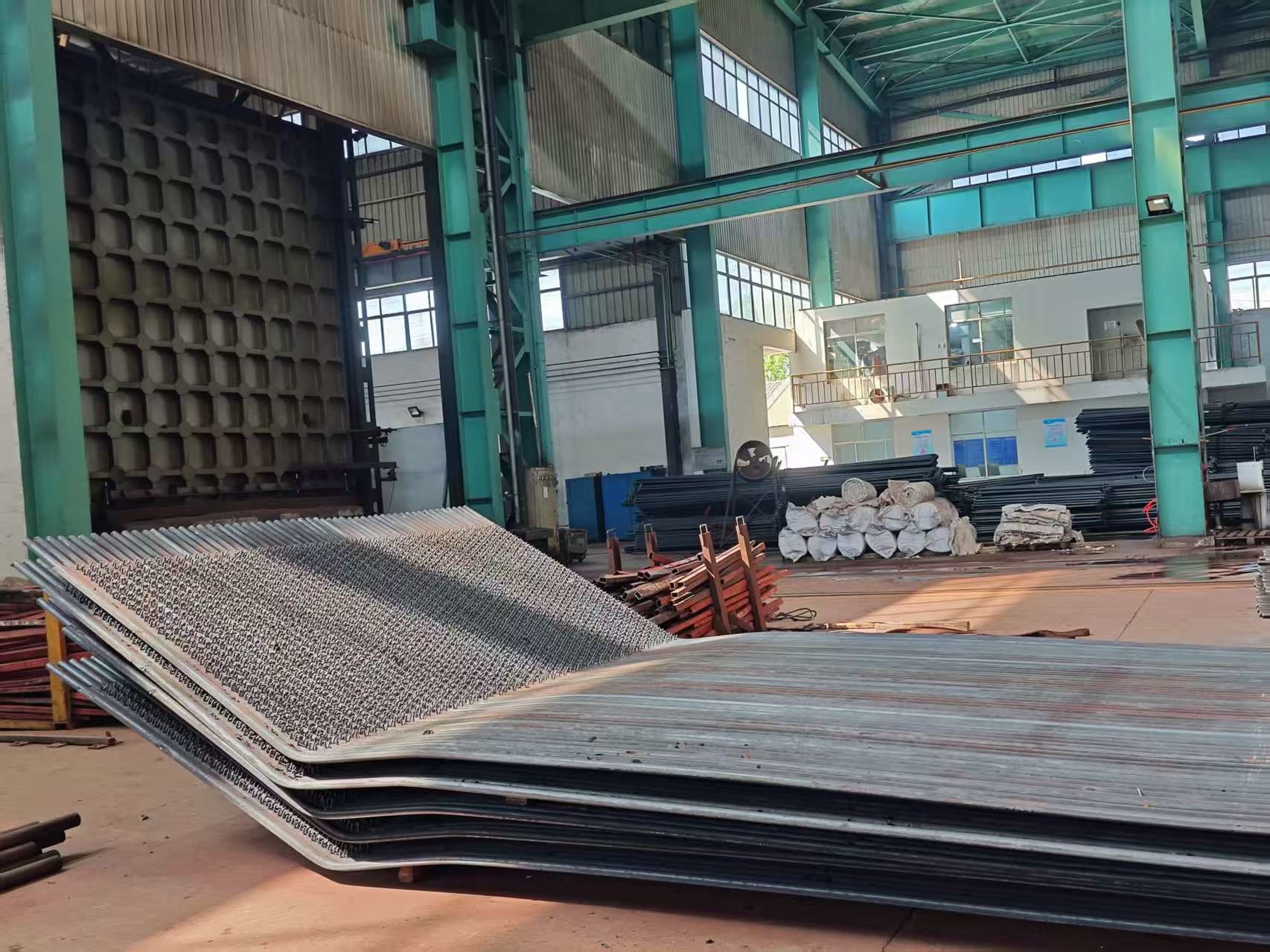

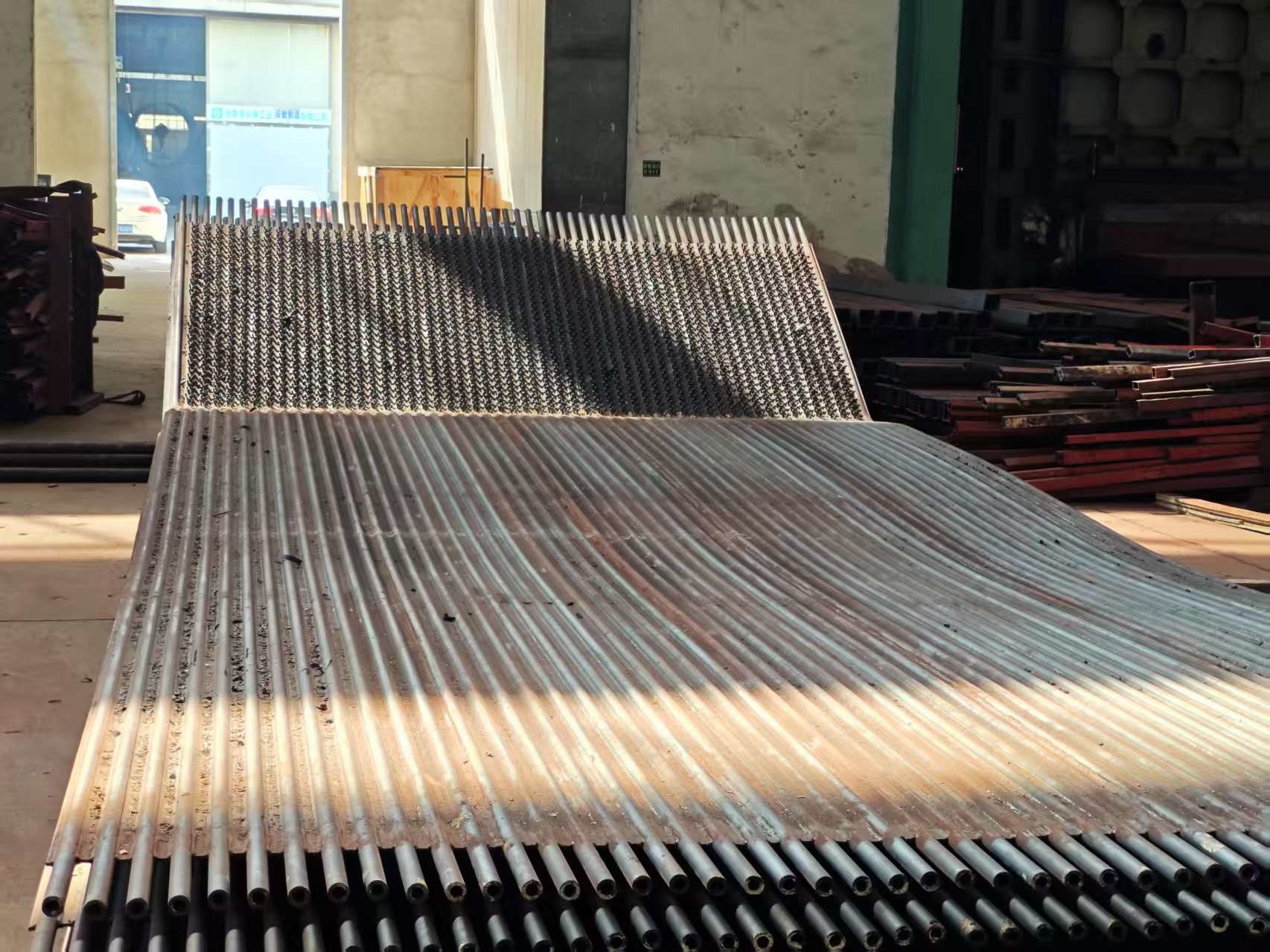

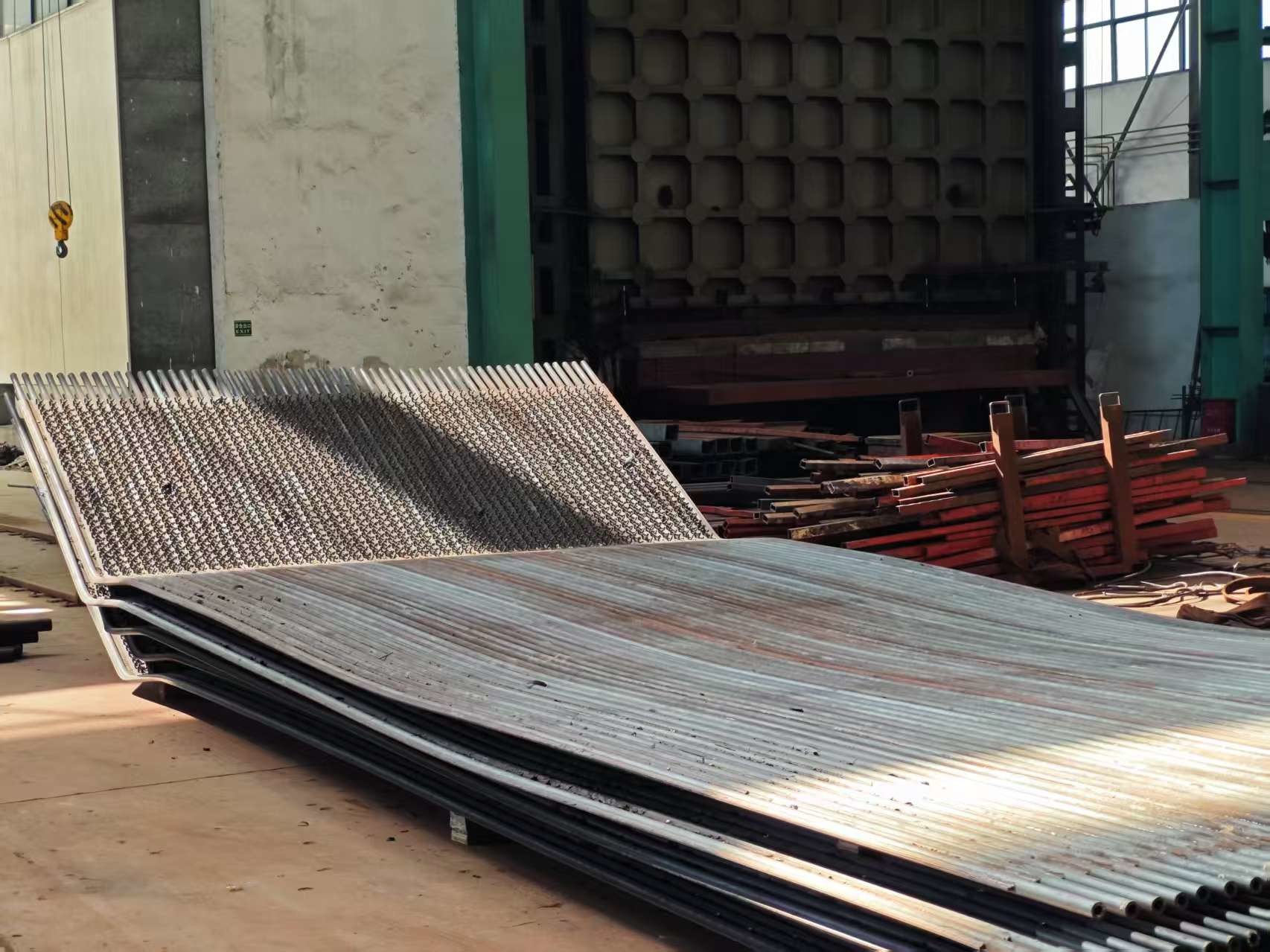

Power Station Boiler Solution Customized Carbon Steel Membrane Wall Panels
How to inspect weld quality?
PT (surface flaws), RT (internal flaws), pneumatic pressure test.
Specifications
| Name | Membrane water panel |
| Material | Carbon steel,Alloy steel,etc. |
| Tube size | Φ38 - 76 mm, Customization |
| Standard | ISO , ASME |

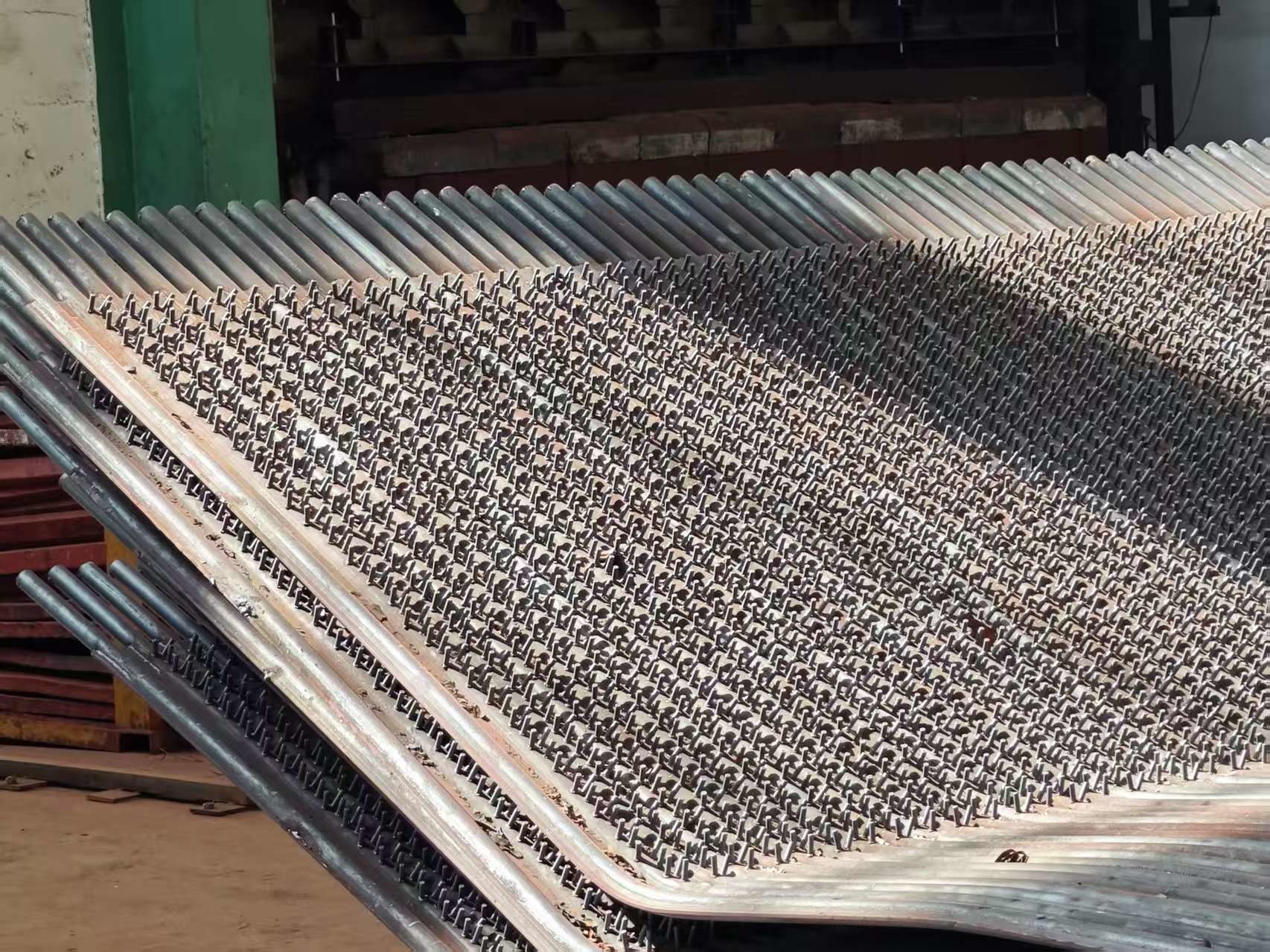

| Model | Studded |
| Dimension | Customization |
| Manufacturing process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Polishing→Tube joint welding→Assembly →Welding →Inspection→Heat treatment→Hydraulic pressure test→Painting→ Packaging |
| Installation location | Around the boiler combustion chamber |
Adavantages of Water Wall Panel
1.ensure the sealing of furnace wall and reduce air leakage in combustion chamber.
2.realize full water cooling in the combustion chamber, which is conducive to preventing coking under the condition of intensified combustion.
3.low heat storage capacity, fast heating and cooling of the combustion chamber, which can shorten the cooling time of the boiler starting and stopping.
4.it is suitable to use tube-laying furnace wall, which greatly reduces the load of boiler frame and facilitates suspension.
5.compared with the light pipe, the heat absorption capacity of the pipe is improved.
6.improve the pre-assembly degree of boiler components, facilitate and reduce the installation workload.
Production Description
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
