Customized SA210 Alloy Steel Boiler Water Wall Panels Waste Heat Recovery
Product Details
| Application: | Power Plant And Sugar Mill | Pressure: | Customized |
|---|---|---|---|
| Keyword: | Boiler Membrane Wall | Production Technqiue: | SAW |
| Color: | Customized | Welding Technique: | Submerged Arc Welding |
| Highlight |
SA210 Boiler Water Wall Panels,Customized Water Wall Panels,Alloy boiler membrane wall |
||
Product Description
Customized SA210 Alloy Steel Boiler Water Wall Panels Waste Heat Recovery
What are the typical materials for membrane walls?
Carbon steel (SA210 Gr.A1/C) for low pressure, alloy steels (T11/T22) for high pressure.
Product Introduction
- Water wall panels are the heart of a boiler’s heating system. Made up of multiple rows of steel tubes, they wrap around the boiler’s interior. As water or steam flows through these tubes, the outer surfaces soak up intense heat from the furnace flame, mainly absorbing radiation from high - temperature combustion gases inside. This heats the working fluid, making it rise and turn into steam.
- Our Specialization: We mainly manufacture membrane water walls—the top choice for modern boilers.
- Membrane Water Walls: These are airtight structures combining pipes and fins.
- Benefits:
- Drastically cuts furnace air leakage, boosting efficiency.
- Allows for pipe - laying designs, reducing stress on the steel structure and slashing boiler costs.
- Ideal for suspension setups, improving thermal expansion management.
- Perfect for large - scale production with high assembly speed, plus their low heat storage means faster start - up and shutdown times.
- Downside: But they aren’t easy to make—the manufacturing process is complex and requires precision.
- Where They’re Used: You’ll often find membrane water walls in large, high - temperature, high - pressure boilers, where reliability and performance matter most.
Specification

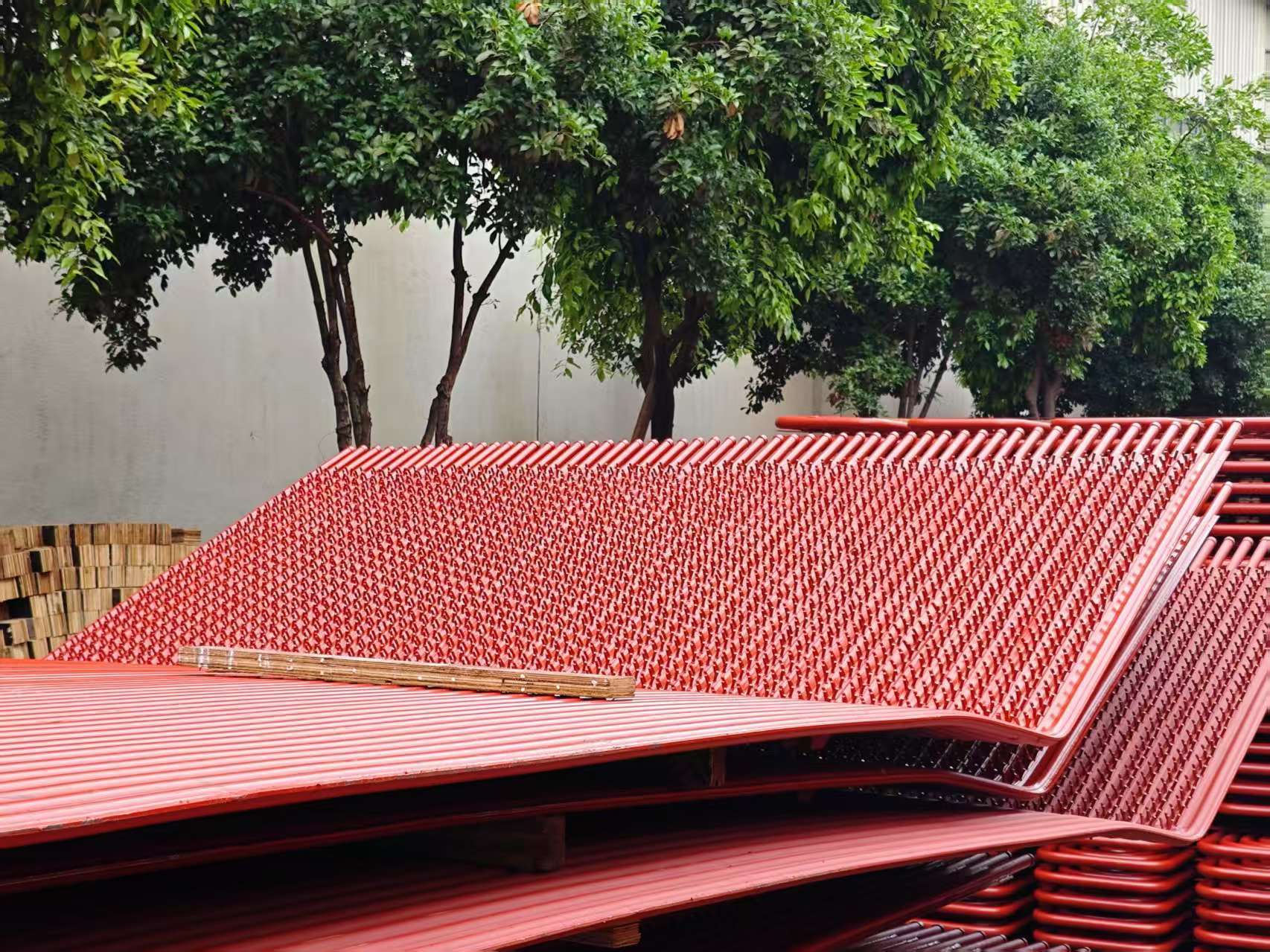

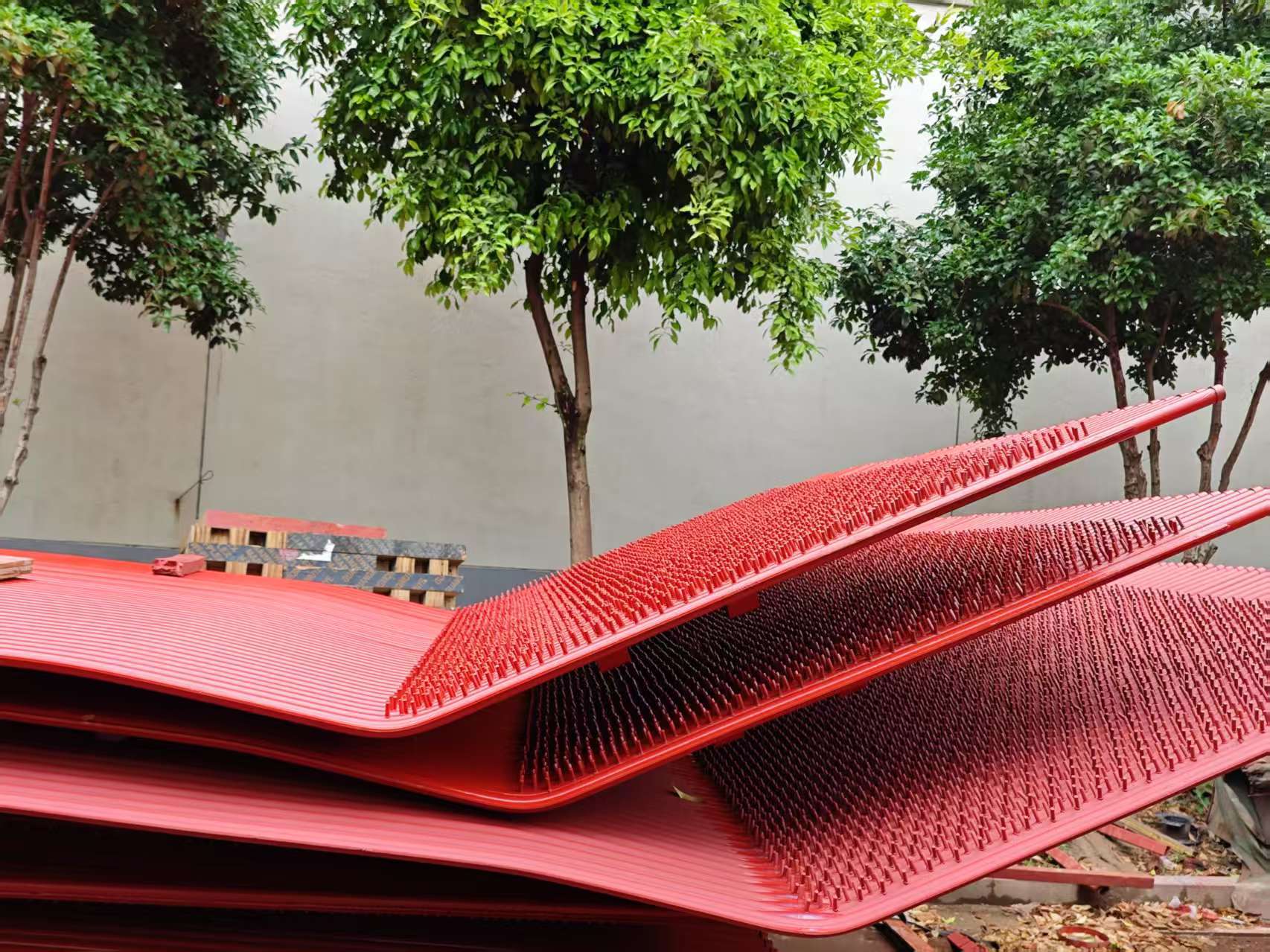

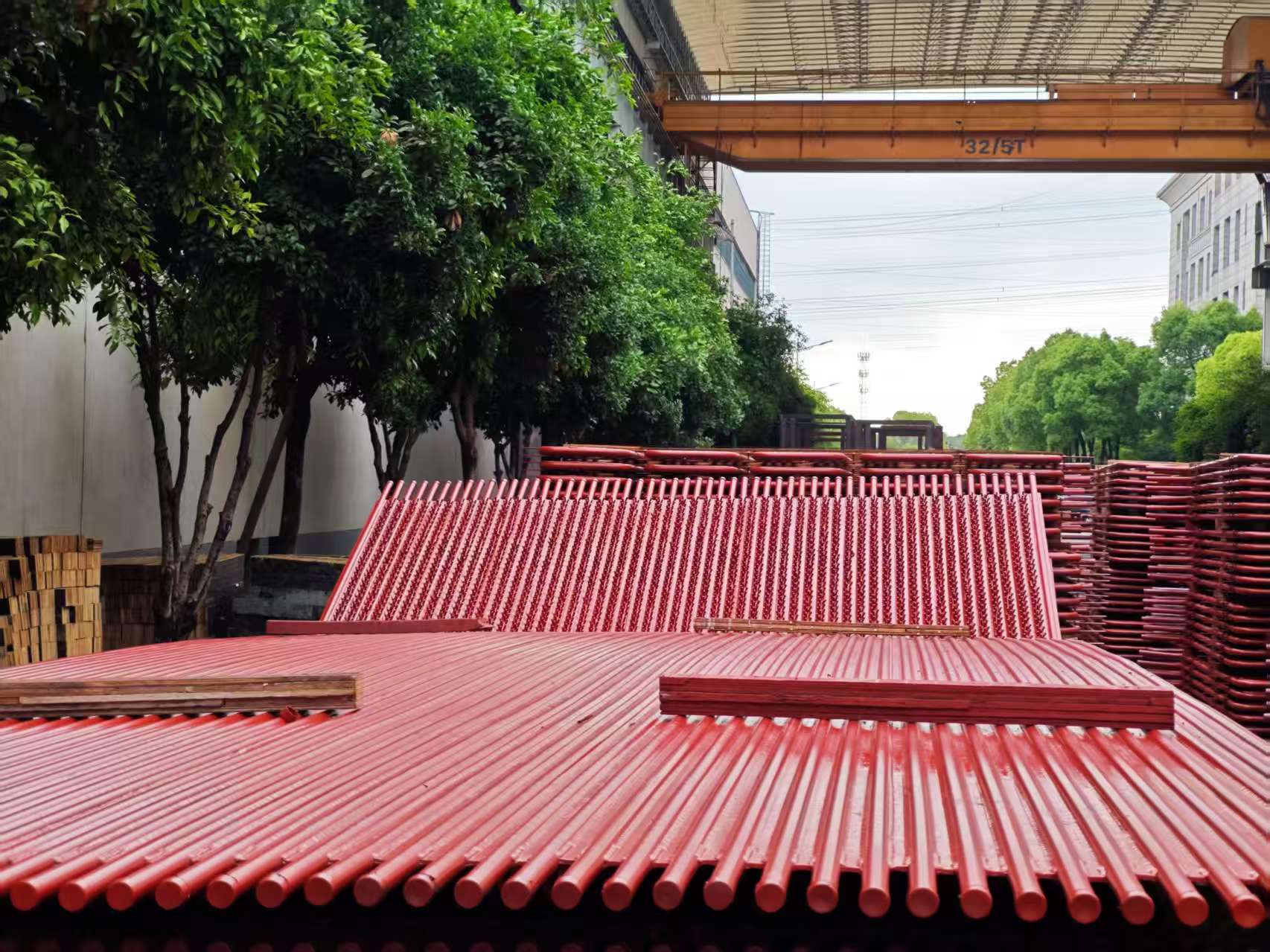

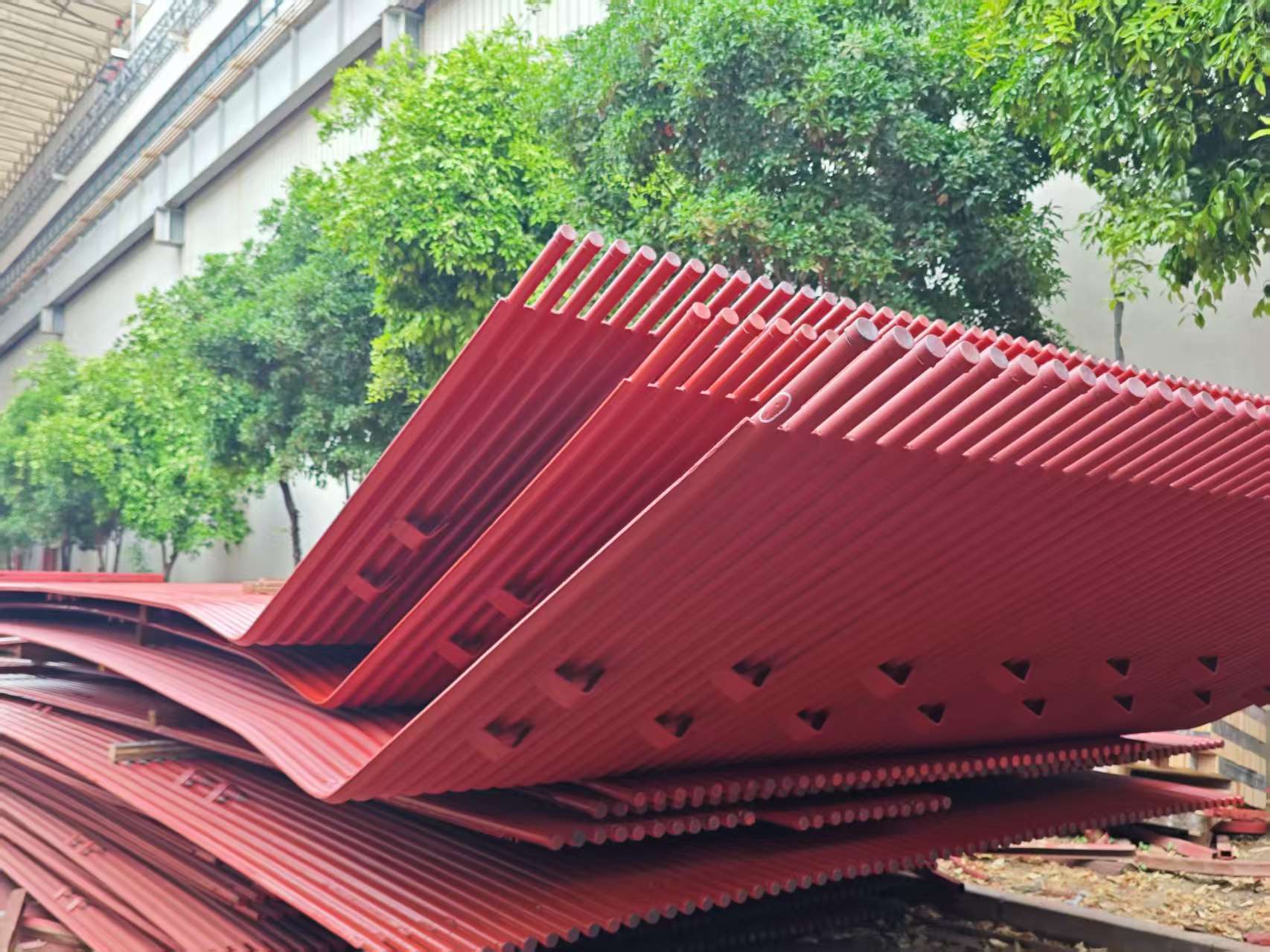

The pictures above are membrane walls for one Pakistan project with details of specification below:
| Name | Memebrane Walls |
| Material | ASME SA192M and Q235B |
| Tube size | 63.5*4.5mm |
| Standard | As per ASME/GB standard |
| Equipment | Automatic production equipment |
| Application | Maintenance of Sugar Mill Boiler and Power Plant Boiler |
FAQ
Here are the frequently asked questions and answers about SANCO Boiler Menbrane Wall:
Q: What is SANCO Boiler Menbrane Wall?
A: SANCO Boiler Menbrane Wall is a type of boiler wall made of high-quality steel tubes and welded with fins to improve heat transfer efficiency.
Q: Where is SANCO Boiler Menbrane Wall made?
A: SANCO Boiler Menbrane Wall is made in China.
Q: What certifications does SANCO Boiler Menbrane Wall have?
A: SANCO Boiler Menbrane Wall is certified by ISO, ASME, and EN.
Q: What is the minimum order quantity for SANCO Boiler Menbrane Wall?
A: The minimum order quantity for SANCO Boiler Menbrane Wall is 3 tons.
Q: What are the payment terms for SANCO Boiler Menbrane Wall?
A: The payment terms for SANCO Boiler Menbrane Wall are negotiated.
Q: What is the supply ability of SANCO Boiler Menbrane Wall?
A: The supply ability of SANCO Boiler Menbrane Wall is 1500 ton/month.
Q: What is the price of SANCO Boiler Menbrane Wall?
A: The price of SANCO Boiler Menbrane Wall is negotiated.
Q: What are the packaging details for SANCO Boiler Menbrane Wall?
A: The packaging details for SANCO Boiler Menbrane Wall are customized.
Q: What is the delivery time for SANCO Boiler Menbrane Wall?
A: The delivery time for SANCO Boiler Menbrane Wall is 30 days.
