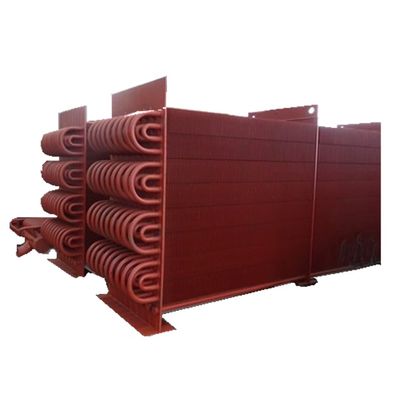

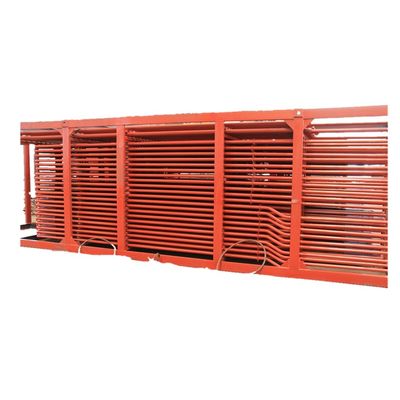

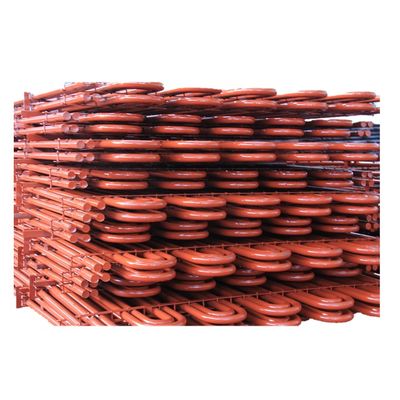

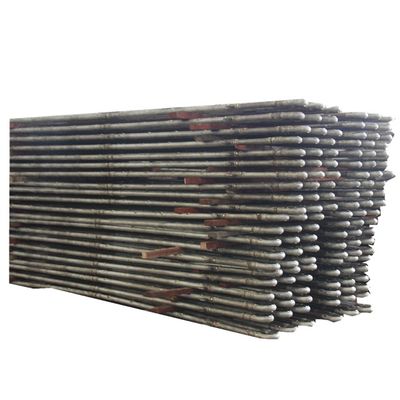

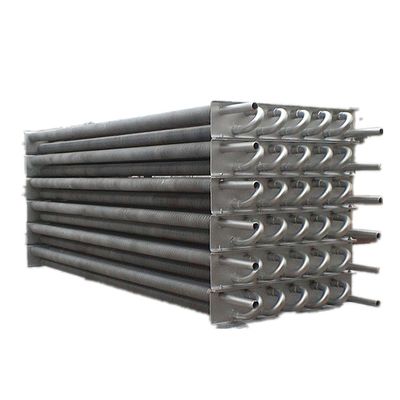

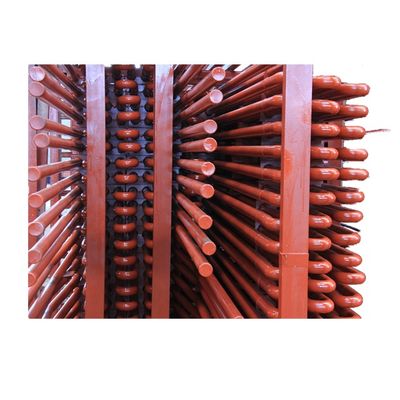

High Thermal Efficiency Horizontal Boiler Economizer with 1 Year Warranty and Serpentine Tube Design
Product Details
| Type: | Natural Circulation | Structure: | Water Tube |
|---|---|---|---|
| Pressure: | High Pressure | Steam Production: | Max. 60t/h |
| Style: | Horizontal | Fuel: | Coal-fired |
| Output: | Hot Water | Material: | Special Boiler Steel Plate |
| Thermal Efficiency: | 92.4%--94.5% | Working Pressure: | High Pressure |
| Weight: | 1-20 Ton | Smelting Process: | EF+LF + VD |
| Material Standard: | ASTM, EN Or ISO Etc. | UT Standard: | ASTM A388 Or EN10228, Etc |
| Process: | Material->Ingot -> Hot/Cold-Rolling-> Heat Treatment (Normalizing+ Tempering) -> Inspection ->rough Machining->UT ->2nd Heat Treatment ->finishing Machining ->Inspection | ||
| Highlight |
High Thermal Efficiency Boiler Economizer,Horizontal Boiler Economizer,1 Year Warranty Serpentine Tube Economizer |
||
Product Description
Boiler economizers are heat exchange devices with finned tubes that heat liquids (typically water) to temperatures below their boiling point. We manufacture three types of boiler economizers:
- Bare tube economizer
- H-finned tube economizer
- Spiral finned tube economizer
The H-finned tube economizer is a high-efficiency heat exchanger consisting of H-finned tubes. Compared to bare tube economizers, it offers:
- Increased heat exchange area
- Reduced number of tubes required
- Expanded flue gas flow area to decrease flow speed and abrasion
H-finned tubes can be manufactured as double H-finned tubes for enhanced rigidity, making them suitable for long tube rows.
The spiral finned economizer features a new design with spiral fin tubes that address serious abrasion issues and extend service life.
| Description | Boiler economizer |
|---|---|
| Material | Alloy steel, Carbon steel, SA210C, SA213T22, etc. |
| Material standard | ASTM, EN or ISO etc. |
| Dimension | Customization |
| Weight | Min: 10 ton Max: 1000 ton |
| Smelting Process | EF+LF + VD |
| Process | Material→Ingot→Hot/Cold-Rolling→Heat treatment (Normalizing+ tempering)→Inspection→rough machining→UT→2nd Heat treatment→finishing machining→Inspection |
| UT standard | ASTM A388 or EN10228, etc |
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam) to ensure boiler quality
- Hydraulic test report to verify standard working pressure and safety
