Hua Dong Boiler Differential Pressure Boiler Economizer with Max. 20t/h Steam Production and 3 Years Core Components Warranty
Product Details
| Type: | Natural Circulation | Structure: | Fire Tube And Water Tube |
|---|---|---|---|
| Pressure: | Low / High Pressure | Steam Production: | Max. 20t/h |
| Style: | VERTICAL | Fuel: | Coal / Gas / Coal-fired / Water Heat |
| Output: | Hot Water / Steam | Surface Treatment: | Painted |
| Material: | Alloy Steel, Carbon Steel, SA210C, SA213T22 | Material Standard: | ASTM, EN Or ISO |
| Weight Range: | Min: 10 Ton, Max: 1000 Ton | Smelting Process: | EF+LF+VD |
| Process: | Material->Ingot->Hot/Cold-Rolling->Heat Treatment->Inspection | UT Standard: | ASTM A388 Or EN10228 |
| Heat Treatment: | Normalizing+ Tempering | ||
| Highlight |
Max. 20t/h Steam Production Boiler Economizer,1 Year Warranty Boiler Economizer,3 Years Core Components Warranty Economiser |
||
Product Description

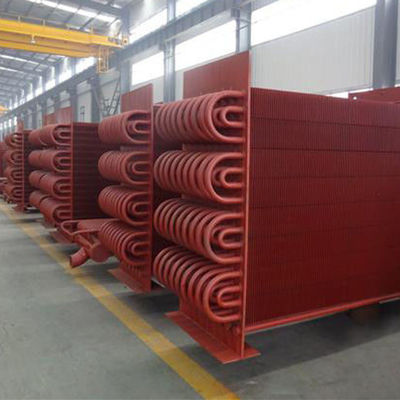

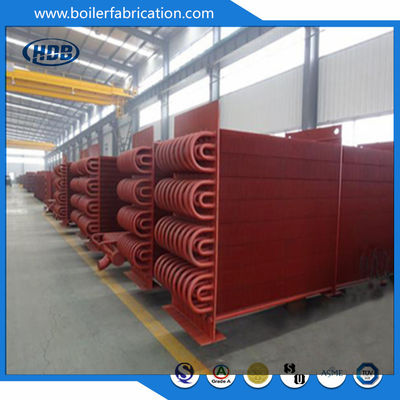

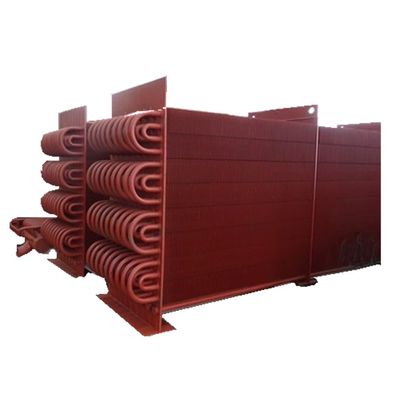

The differential pressure economizer for boiler flue is a high-efficiency heat exchange device designed to optimize boiler performance and energy savings.
Boiler economizers are heat exchange devices with finned tubes that heat liquids (typically water) without exceeding the boiling point. We manufacture three types:
- Bare tube economizer
- H-finned tube economizer (high-efficiency design with expanded heat exchange area)
- Spiral finned tube economizer (resistant to abrasion with extended service life)
The H-finned tube economizer reduces flue gas flow speed and abrasion while maintaining structural integrity. Double H-finned tubes offer enhanced rigidity for long tube rows. The spiral finned economizer provides superior abrasion resistance.
The economizer reduces operational costs by efficiently recovering waste heat from flue gases, minimizing energy consumption while maintaining optimal cooling performance.
| Description | Boiler economizer |
|---|---|
| Material | Alloy steel, Carbon steel, SA210C, SA213T22, etc. |
| Material standard | ASTM, EN or ISO etc. |
| Dimension | Customized |
| Weight | 10 ton - 1000 ton |
| Smelting Process | EF+LF+VD |
| Process | Material→Ingot→Hot/Cold-Rolling→Heat treatment→Inspection→Rough machining→UT→2nd Heat treatment→Finishing machining→Inspection |
| UT standard | ASTM A388 or EN10228, etc |
- Impact test and strength calculation reports
- 100% NDT (non-destructive inspection) of materials
- X-ray, γ-ray and liquid penetrant test inspections for welding seams
- Hydraulic test reports to verify working pressure and safety standards
Product Highlights
Hua Dong Boiler Differential Pressure Boiler Economizer or Economiser Product Overview The differential pressure economizer for boiler flue is a high-efficiency heat exchange device designed to optimize boiler performance and energy savings. Introduction Boiler economizers are heat exchange devices ...
Power Plant Biomass Boiler Spare Parts Serpentine Coils ASME For Thermal Steam

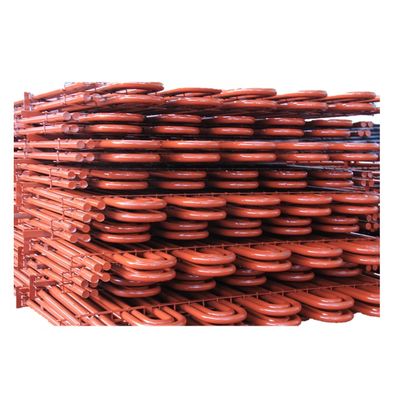

Power Plant Biomass Boiler Spare Parts Serpentine Coils ASME for Thermal Steam Product Description The superheaters and reheaters are both important components of heat energy conversion in boilers. According to the position and structure of the superheater in the boiler arrangement, it can be divided into: wall superheater on the wall surface of the furnace; separator and rear screens at different locations in the upper part of the hearth; vertical superheaters and horizontal
High Frequency Welded Carbon Steel Spiral Fin Tube For Boiler Heat Exchanger

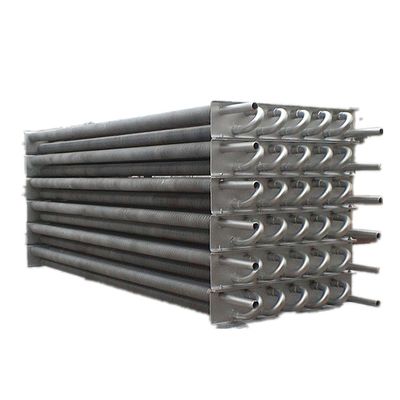

High Frequency Welded Carbon Steel Spiral Fin Tube for Boiler Heat Exchanger Product Description 1.Finned Tube Heat Exchangers consist of a shell and finned tubes assembly. 2.Fins are used to increase the effective surface area of heat exchanger tubing. 3.Finned tubes are used when the heat transfer coefficient on the outside of the tubes is appreciably lower than that on the inside;as in heat transfer from a liquid to a gas,vapor to a gas ,such as steam to air heat exchanger
