High Efficiency Boiler Economizer with Max. 20t/h Steam Production and 5 Years Warranty for Industrial Use
Product Details
| Type: | Natural Circulation | Structure: | Fire Tube And Water Tube |
|---|---|---|---|
| Pressure: | Low / High Pressure | Steam Production: | Max. 20t/h |
| Style: | VERTICAL | Fuel: | Coal / Gas / Coal-fired / Water Heat |
| Output: | Hot Water / Steam | Surface Treatment: | Painted |
| Material: | Alloy Steel, Carbon Steel, SA210C, SA213T22 | Material Standard: | ASTM, EN Or ISO |
| Weight Range: | 10 Ton To 1000 Ton | Smelting Process: | EF+LF + VD |
| Process: | Material->Ingot->Hot/Cold-Rolling->Heat Treatment->Inspection->rough Machining->UT->2nd Heat Treatment->finishing Machining->Inspection | UT Standard: | ASTM A388 Or EN10228 |
| Heat Treatment: | Normalizing+ Tempering | ||
| Highlight |
Max. 20t/h Steam Production Boiler Economizer,5 Years Warranty Boiler Economizer,Industrial Use Boiler Economizer |
||
Product Description

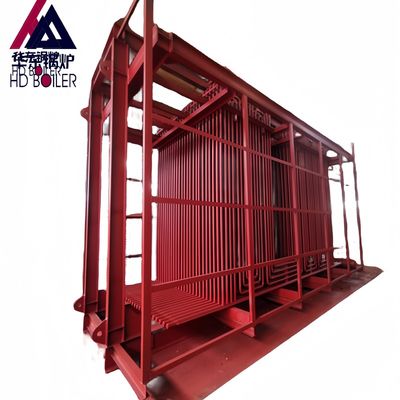

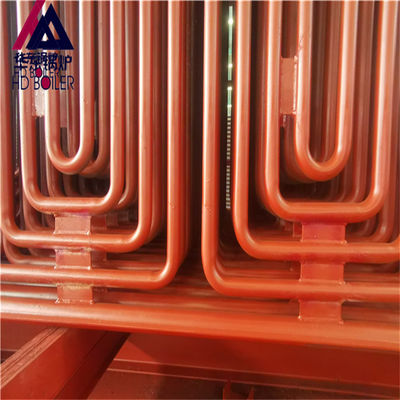

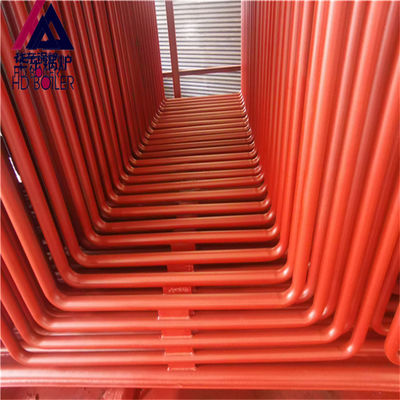

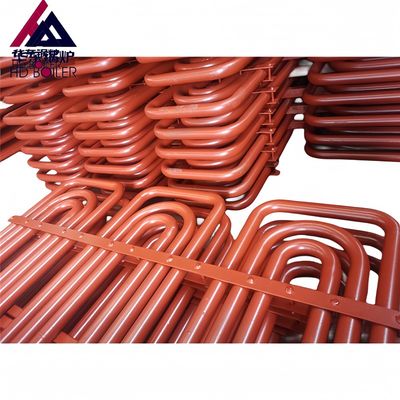

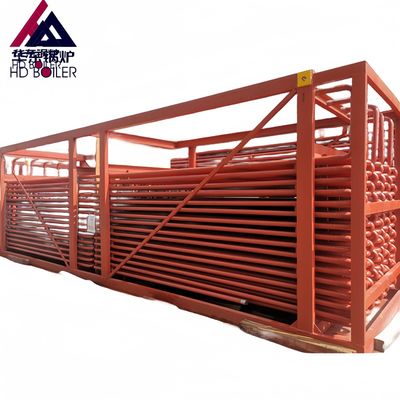

- Bare tube economizer
- H finned tube economizer
- Spiral finned tube economizer
- Larger heat exchange area with fewer tubes
- Increased flue gas flow area to reduce flow speed and abrasion
- Available as double H-finned tubes for enhanced rigidity in long tube rows
| Description | Boiler economizer |
|---|---|
| Material | Alloy steel, Carbon steel, SA210C, SA213T22, etc. |
| Material standard | ASTM, EN or ISO etc. |
| Dimension | Customization |
| Weight | Min: 10 ton Max.:1000 ton |
| Smelting Process | EF+LF + VD |
| Process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection |
| UT standard | ASTM A388 or EN10228, etc |
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam)
- Hydraulic test report to ensure standard working pressure and safety
Product Highlights
Boiler Economizer Spare Parts Exhaust Gas Boiler Equipment Steam Boiler Product Description Boiler economizers are heat exchange devices with finned tubes that heat liquids (typically water) without exceeding the liquid's boiling point. We manufacture three types of boiler economizers: Bare tube ...
Power Plant Biomass Boiler Spare Parts Serpentine Coils ASME For Thermal Steam
Power Plant Biomass Boiler Spare Parts Serpentine Coils ASME for Thermal Steam Product Description The superheaters and reheaters are both important components of heat energy conversion in boilers. According to the position and structure of the superheater in the boiler arrangement, it can be divided into: wall superheater on the wall surface of the furnace; separator and rear screens at different locations in the upper part of the hearth; vertical superheaters and horizontal
High Frequency Welded Carbon Steel Spiral Fin Tube For Boiler Heat Exchanger
High Frequency Welded Carbon Steel Spiral Fin Tube for Boiler Heat Exchanger Product Description 1.Finned Tube Heat Exchangers consist of a shell and finned tubes assembly. 2.Fins are used to increase the effective surface area of heat exchanger tubing. 3.Finned tubes are used when the heat transfer coefficient on the outside of the tubes is appreciably lower than that on the inside;as in heat transfer from a liquid to a gas,vapor to a gas ,such as steam to air heat exchanger
Horizontal Pendant Boiler Superheater Reheater Serpentine Coils OEM
Product Description The superheaters and reheaters are both important components of heat energy conversion in boilers. According to the position and structure of the superheater in the boiler arrangement, it can be divided into: wall superheater on the wall surface of the furnace; separator and rear screens at different locations in the upper part of the hearth; vertical superheaters and horizontal superheaters in convection flues; the encapsulated superheater that constitute
Superheated Saturated Steam Upper Drum Boiler ASME 2017 Edition
ASME Standard 100mm Thickness Produce Superheated And Saturated Steam Boiler Drum Product Description A steam drum is a standard feature of a water-tube boiler. It is a reservoir of water/steam at the top end of the water tubes. The drum stores the steam generated in the water tubes and acts as a phase-separator for the steam/water mixture. The difference in densities between hot and cold water helps in the accumulation of the "hotter"-water/and saturated-steam into the steam
