H Type Fin Tube Boiler Economizer with Max. 20t/h Steam Production 1 Year Warranty and 5 Years Core Components Warranty
Product Details
| Type: | Natural Circulation | Structure: | Fire Tube And Water Tube |
|---|---|---|---|
| Pressure: | Low / High Pressure | Steam Production: | Max. 20t/h |
| Style: | VERTICAL | Fuel: | Coal / Gas / Coal-fired / Water Heat |
| Output: | Hot Water / Steam | Surface Treatment: | Painted |
| Material: | Alloy Steel, Carbon Steel, SA210C, SA213T22 | Material Standard: | ASTM, EN Or ISO |
| Weight Range: | 10 Ton To 1000 Ton | Smelting Process: | EF+LF+VD |
| Process: | Material->Ingot->Hot/Cold-Rolling->Heat Treatment->Inspection->rough Machining->UT->2nd Heat Treatment->finishing Machining->Inspection | UT Standard: | ASTM A388 Or EN10228 |
| Heat Treatment: | Normalizing+ Tempering | ||
| Highlight |
Max. 20t/h Steam Production Boiler Economizer,1 Year Warranty H Type Fin Tube,5 Years Core Components Warranty Boiler Economizer |
||
Product Description
High-efficiency boiler economizer designed as ship spare parts exhaust gas economizer, manufactured to ASME standards for power plant applications.
Boiler economizers are heat exchange devices with finned tubes that heat liquids (typically water) without exceeding the liquid's boiling point. We manufacture three types of boiler economizers:
- Bare tube economizer
- H finned tube economizer
- Spiral finned tube economizer

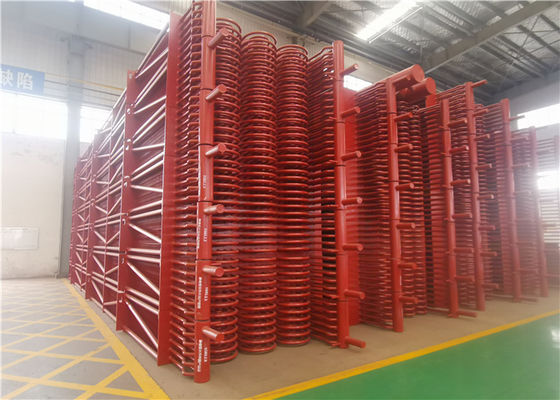

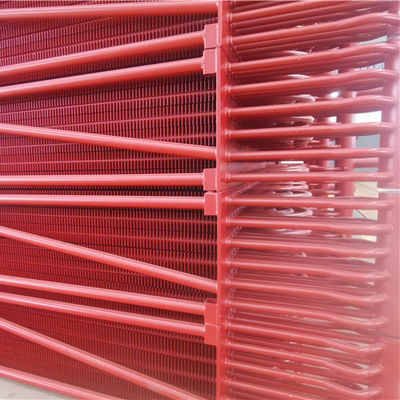

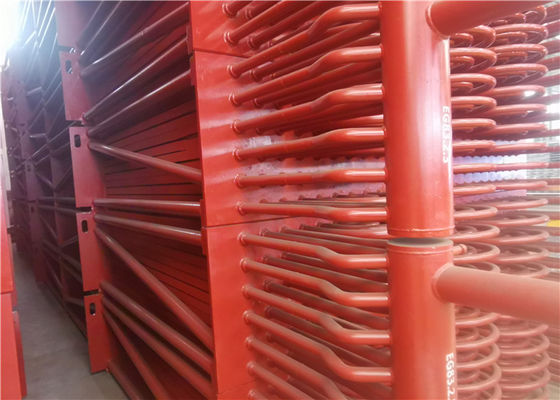

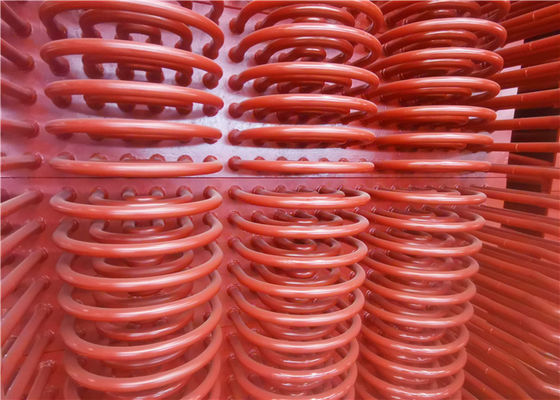

The H-finned tube economizer is a high-efficiency heat exchanger consisting of H-finned tubes. Compared to bare tube economizers, H-finned tube economizers offer:
- Larger heat exchange area with fewer tubes
- Increased flue gas flow area to reduce flow speed and abrasion
- Option for double H finned tubes with high rigidity for long tube rows
The spiral finned economizer features newly designed heat transfer equipment with spiral fin tubes to overcome abrasion issues and extend service life.
The economizer reduces cooling costs by allowing compressor shutdown while maintaining adequate cooling, resulting in significant energy savings.
| Description | Boiler economizer |
|---|---|
| Material | Alloy steel, Carbon steel, SA210C, SA213T22, etc. |
| Material standard | ASTM, EN or ISO etc. |
| Dimension | Customization |
| Weight | Min: 10 ton Max.:1000 ton |
| Smelting Process | EF+LF + VD |
| Process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection |
| UT standard | ASTM A388 or EN10228, etc |
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam)
- Hydraulic test report to ensure standard working pressure and safety
