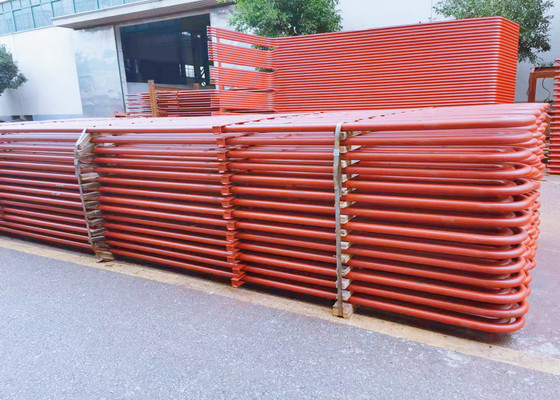

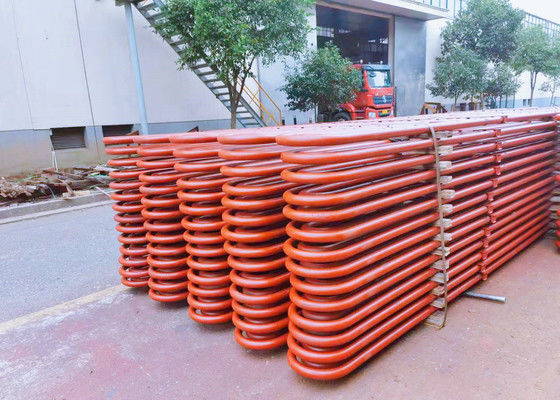

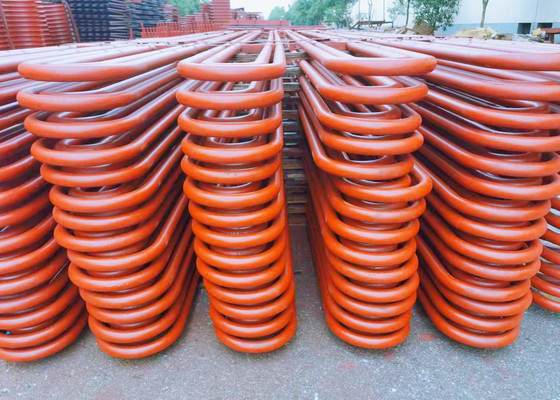

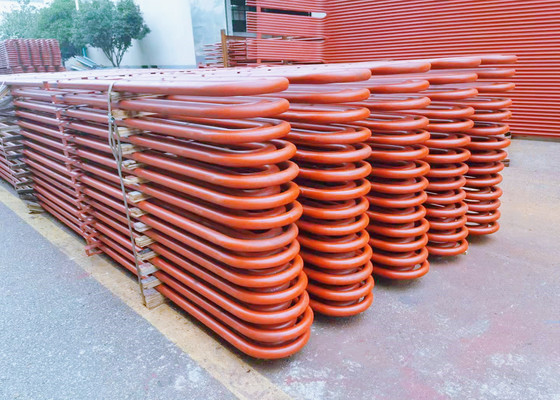

Carbon Steel 25t Boiler Superheater Coil In Power Plant ODM
Product Details
| Coil Diameter: | Customized | Coil Material: | Carbon Steel, Alloy Steel, Stainless Steel, Inconel, Incoloy, Hastelloy |
|---|---|---|---|
| Material: | Carbon Steel, Alloy Steel, Stainless Steel, Inconel, Incoloy, Hastelloy | Tube Diameter: | Customized |
| Pressure Range: | Up To 100 Bar | Tube Thickness: | Customized |
| Application: | Boiler, Power Plant, Thermal Power Plant, Industrial Plant | Temperature Range: | Up To 1000°C |
| Surface Treatment: | Painting, Galvanizing, Polishing | Coil Type: | U-shaped, Straight, Spiral |
| Highlight |
25t boiler superheater,ODM boiler superheater,ODM superheater in power plant |
||
Product Description
25 tons Carbon Steel Made Boiler Superheater Coil in ASME Standard for Sugar Mill Boiler Maintenance
Description
A superheater is a component that heats saturated steam in an industrial boiler, turning it into superheated steam. Our superheater guarantees that the superheated steam temperature will fluctuate to within an allowable range (normally varies from 540℃ to 550℃) when the boiler is over loaded.
Superheaters and reheaters are important parts for the heating surfaces, used to increase steam temperature, aiming to improve steam enthalpy and further to increase the thermal circulation efficiency for power station.
Superheaters work to heat surnatured steam to superheated steam with a certain tempetature. When boiler loads or other working conditions change, it is necessary to make sure superheated steam temperature to be normal, and within allowable range of temperature variation.
Differences
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type |
1. Proper drainage 2. Good structural rigidity. |
1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
