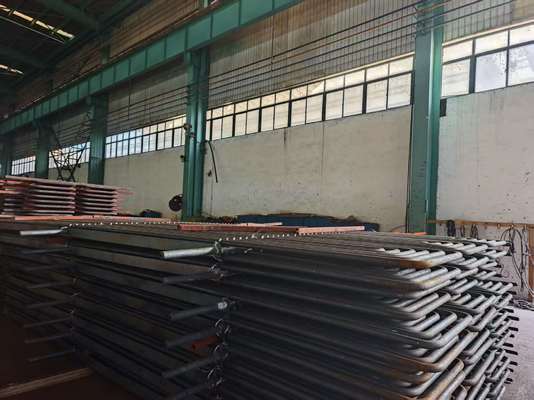

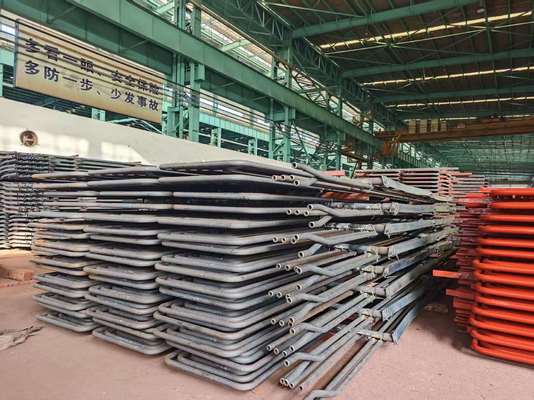

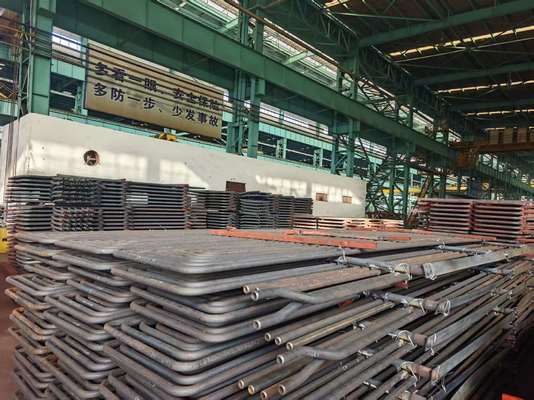

Anti Corrosion Carbon Steel Superheater - Coal Fired CFB Power Plant Boiler Parts
| Place of Origin | China |
|---|---|
| Brand Name | Saneco |
| Certification | ASME, EN, GB, ISO |
| Model Number | Boiler Superheater Coils |
| Minimum Order Quantity | 20 tons |
| Packaging Details | Steel frame |
| Delivery Time | 80~120 days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Temperature Resistance, Corrosion Resistance, Durable, Customizable | Material | Carbon Steel, Alloy Steel, Stainless Steel, Nickel Alloys, Hastelloy, Inconel, Incoloy, Duplex Steel, Super Duplex Steel |
|---|---|---|---|
| Coil Length | Customized | Coil Material | Carbon Steel, Alloy Steel, Stainless Steel, Nickel Alloys, Hastelloy, Inconel, Incoloy, Duplex Steel, Super Duplex Steel |
| Surface Treatment | Painting, Galvanizing, Powder Coating, Polishing | Shape | Straight, U-shape, Serpentine |
| Application | Boiler, Power Plant, Petrochemical, Refinery, Chemical, Paper & Pulp, Textile, Sugar, Pharmaceutical, Food Processing | Size | Customized |
| Coil Surface Treatment | Painting, Galvanizing, Powder Coating, Polishing | Coil Type | Bare, Finned |
Product Description
Anti Corrosion Carbon Steel Superheater - Coal Fired CFB Power Plant Boiler Parts
How to enhance heat transfer efficiency in superheater coil design?
Use spiral winding structures to enhance turbulence and incorporate nano-surface treatments to reduce condensation thermal resistance, significantly improving heat exchange performance.
Description
For power plant boiler, it is a crutial way to increase thermal economy of thermal power station by improving parameter of superheated steam. The increase of superheated steam parameters are limited by metal materials. The design of superheaters must make sure that the temperature of outer wall of heating surface pipes is lower than allowable temperature of oxidation resistance of steel, and meanwhile make sure its mechanical strength. with the development of metal material used in boilers, power station boilers in our country already generally apply high pressure, high temperature(9.8MPa, 540 degrees) and superhigh pressure parameters(13.7 MPa, 540 and 555 degrees), and have developed subcritical pressure parameters(16.7MPa, 540 and 555 degrees). Now lots of boilers apply supercritical pressure parameters(24.5MPa, 540-570 degrees), and even very few units apply higher pressure and temperture parameters.
Application
use for heating saturated steam, steam temperature could be up to 900 degree C.
Superheater Capacity Upgrades to Increase Power Generation
Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.
Differences
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type |
1. Proper drainage 2. Good structural rigidity. |
1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
